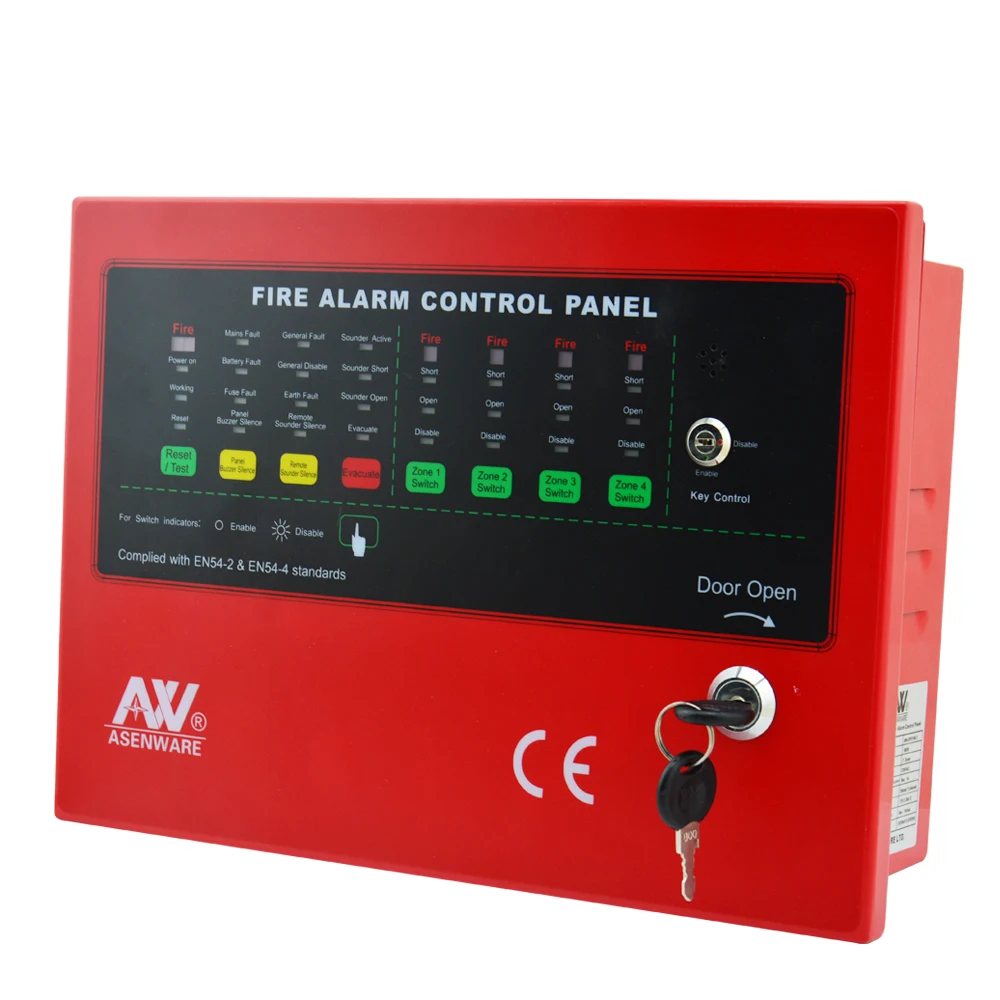

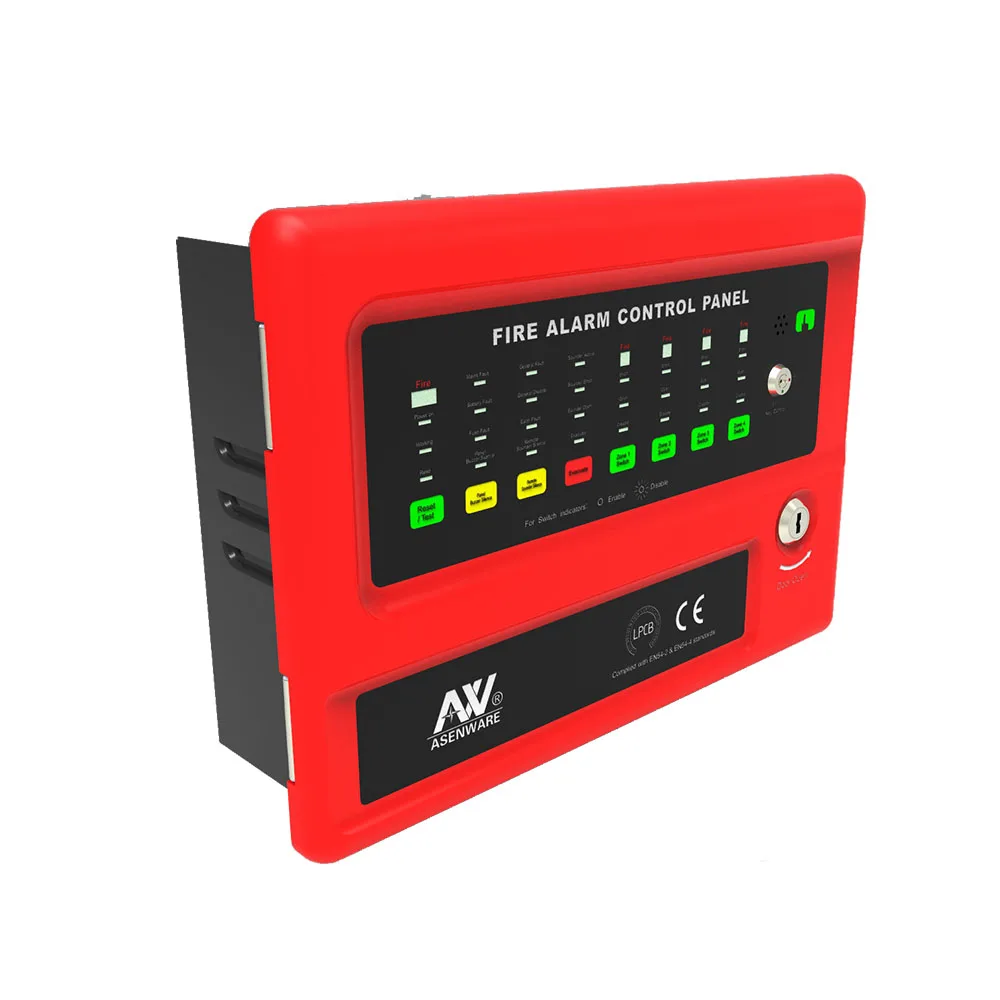

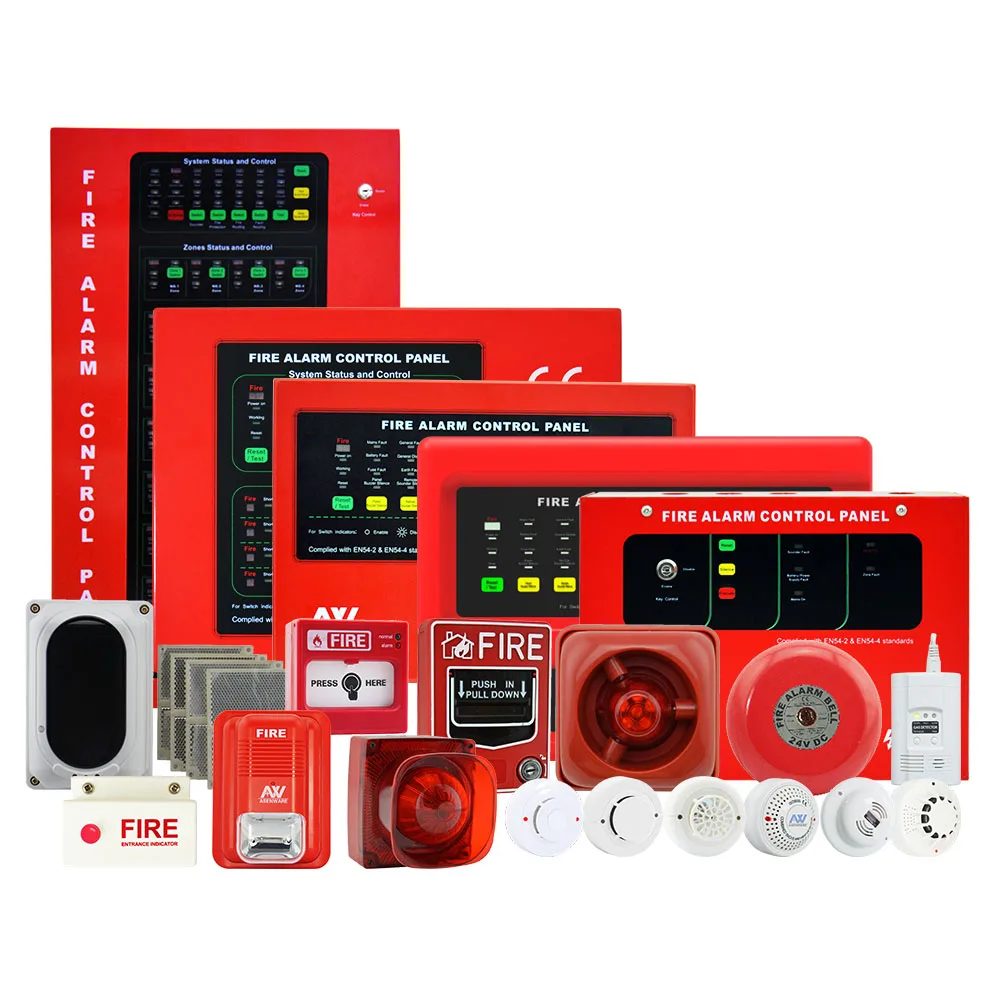

Asenware 4 зоны обычные системы пожарной сигнализации панель управления/Система

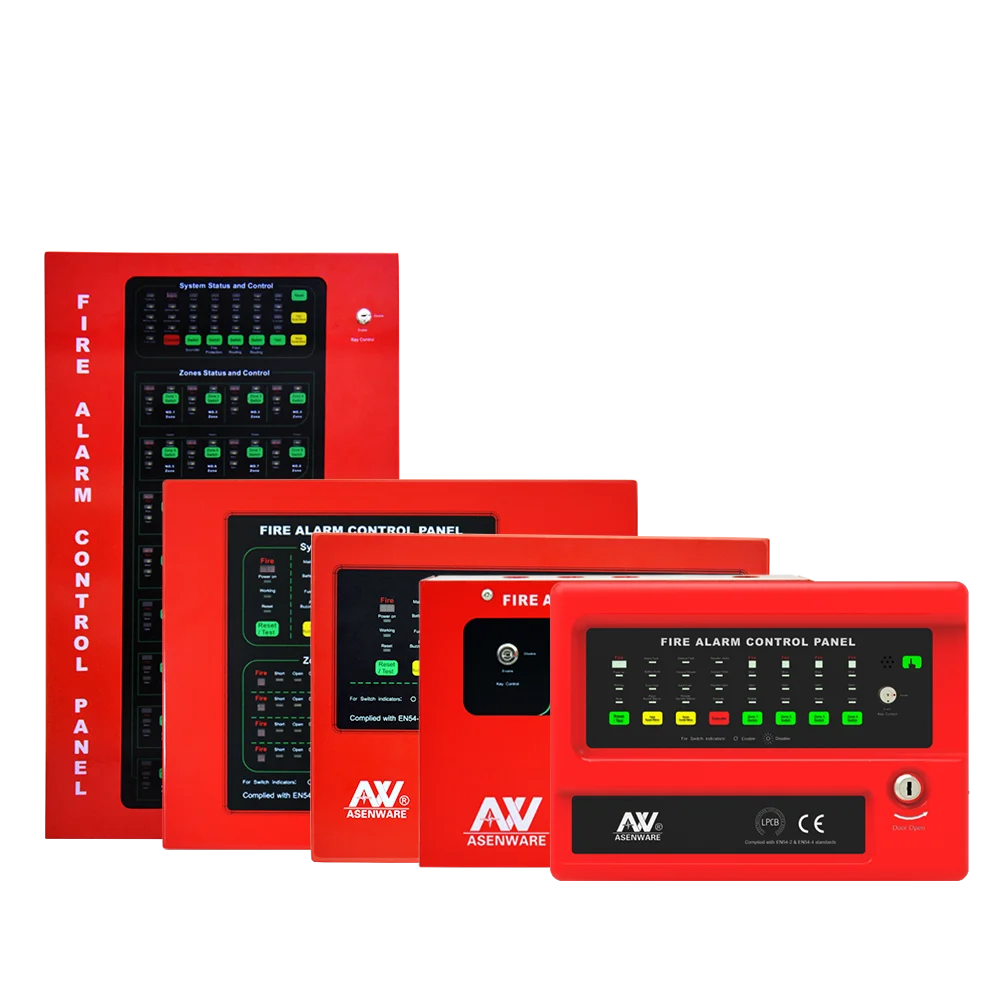

ITEM

1 Zone panel

2 Zone panel

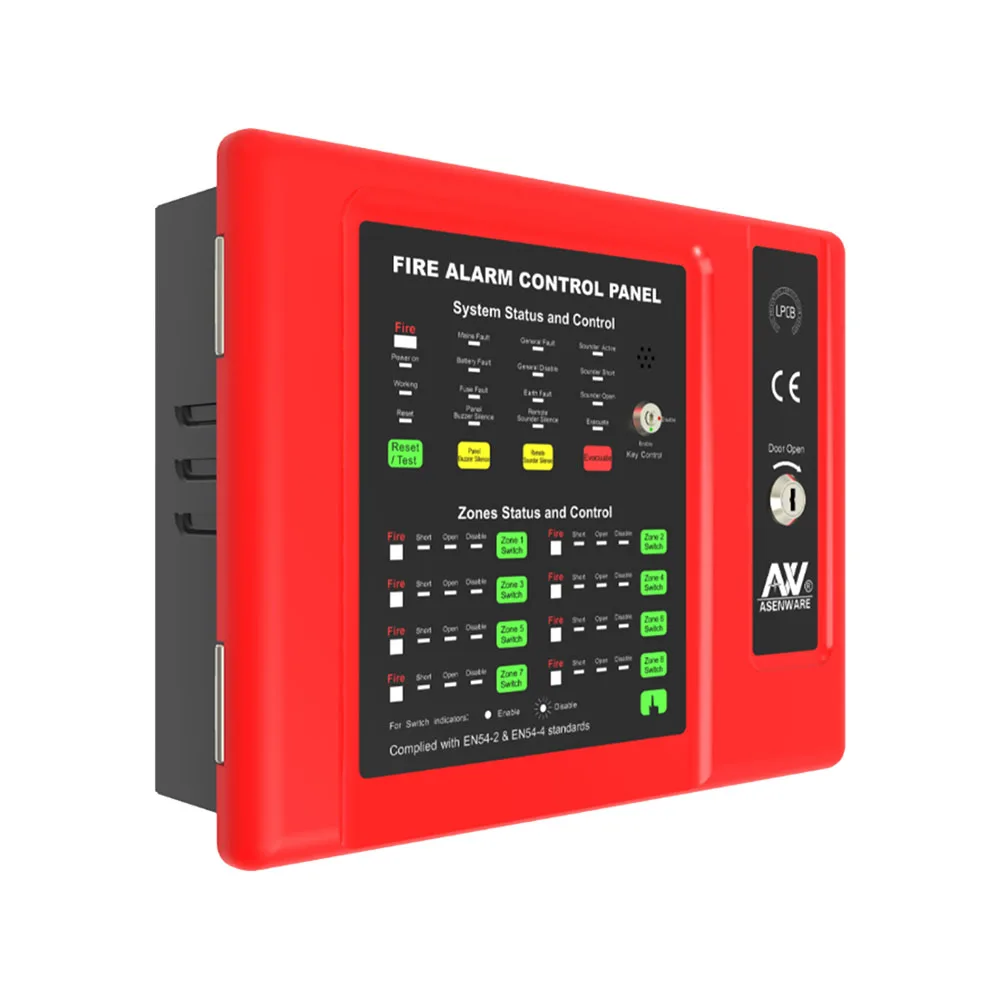

4-8 Zone panel

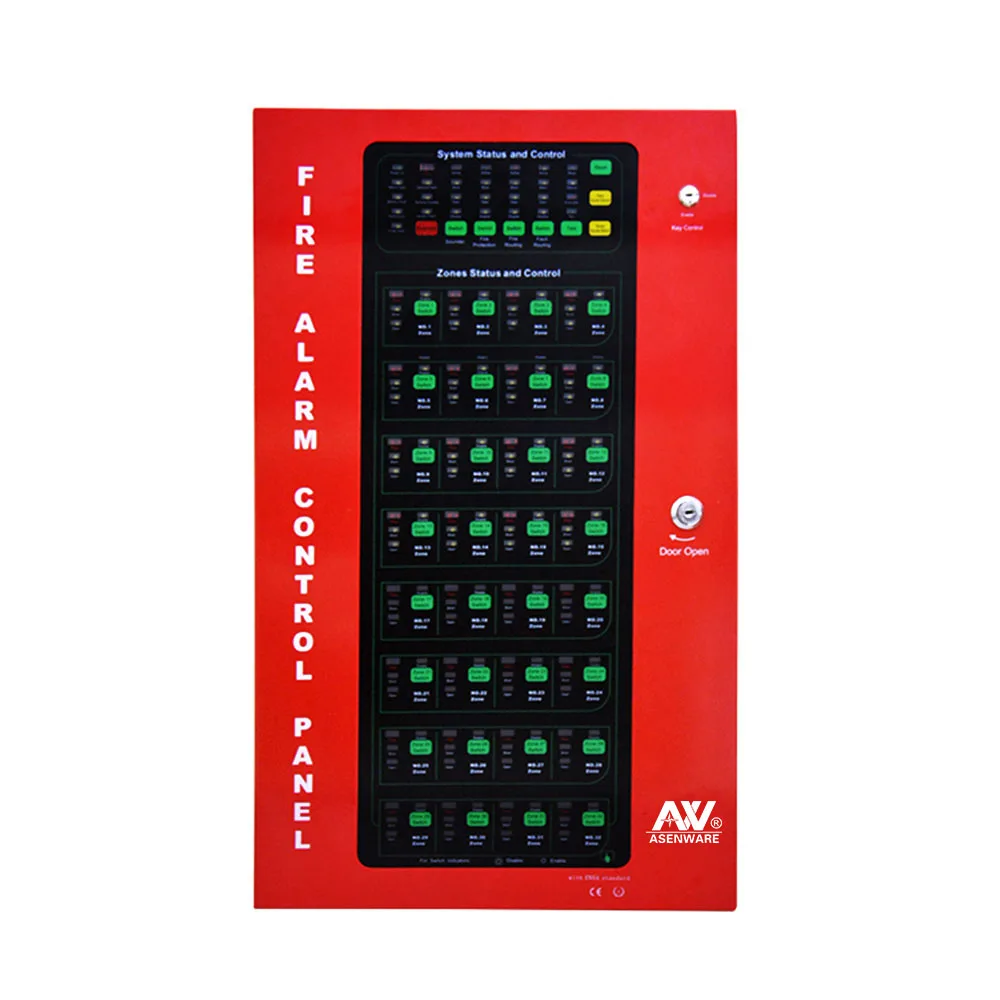

12-32 Zone panel

Model No. of fire alarm conctrol panel

AW-CFP2166-01

AW-CFP2166-02

AW-CFP2166-04-8

AW-CFP2166-12-32

Power specification

conventional fire alarm panel'  Power specification

Mains supply voltage

110VAC or 240VAC

Internal power supply

27.2VDC

Total output current limited

500mA @ 240VAC

500mA @ 240VAC

3A @ 240VAC

3A @ 240VAC

Main supply monitor for fault

Yes

Battery protection for low voltage

Yes

Batteries (default configuration)

12V2AH*2

Detector circuit specification

  conventional fire alarm panel' Detector circuit specification

Number of circuit

1

2

4-16

4-32

Line fault monitor for open circuit

Yes

Line fault monitor for short circuit

Yes

Line fault monitor for detector removal

Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor

conventional fire alarm control panel

End of Line device

6.8k Ω,5% tolerance, 0.25W (colour code-blue, grey, red, gold)

Detector continuity diodes

Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault)

Call point resistor value

470 to 680 Ω, 0.225 or 0.5 watt

Maximum number of smoke/heat detectors per zone

20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maximum voltage drop must not exceed 12 volts.

Maximum number of manual call points per zone

No limit

 fire alarm control panel

Sounder circuit specification

   fire alarm control panel  Sounder circuit specification

Number of general circuits

2

End of line resistor value

6.8k Ω,5% tolerance, 0.25W (colour code-blue, grey, red, gold)

Line fault monitor for open circuit

Yes

Line fault monitor for short circuit

Yes

Outputs fused AT

400mA

Maximum number of bells @ 20mA of each sounder output

20

Fuses

 fire alarm control panel    conventional fire alarm panel  Fuses

Battery fuse

1.5A F 20mm

Sounder outputs

500mA F 20mm

Fire and fault output

  fire alarm control panel     conventional fire alarm panel output

Output type

NC and NO relay

Maximum current

100mA

Connection block

   fire alarm control panel  Connection block

Largest acceptable conductor size

2.5mm²

Smallest acceptable conductor size

0.75mm²

Size and weight

   control panel

   fire alarm control panel  Size and weight

Dimensions(mm)

272*200*70mm

320*231*90mm

395X502X124

362X565X124

Weight (without batteries)

4kg

5kg

7kg

8kg

Weight (with batteries)

5.8kg

6.8kg

9.6kg

12.5kg
