Бесконтактный Индуктивный мини-датчик движения с

Бесконтактный Индуктивный мини-датчик движения с

Категория: Датчики >>>
Поставщик: Shenzhen,Akusense,Technology,Co.,Ltd.

Цена:10,30 $ - 20,50 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	12.67 $*	13.49 $*
Aug-20-2025	12.64 $*	13.51 $*
Jul-20-2025	10.98 $*	11.67 $*
Jun-20-2025	12.46 $*	13.36 $*
May-20-2025	10.97 $*	11.80 $*
Apr-20-2025	11.3 $*	12.71 $*
Mar-20-2025	11.22 $*	12.24 $*
Feb-20-2025	11.57 $*	12.49 $*
Jan-20-2025	11.84 $*	12.59 $*

Характеристики

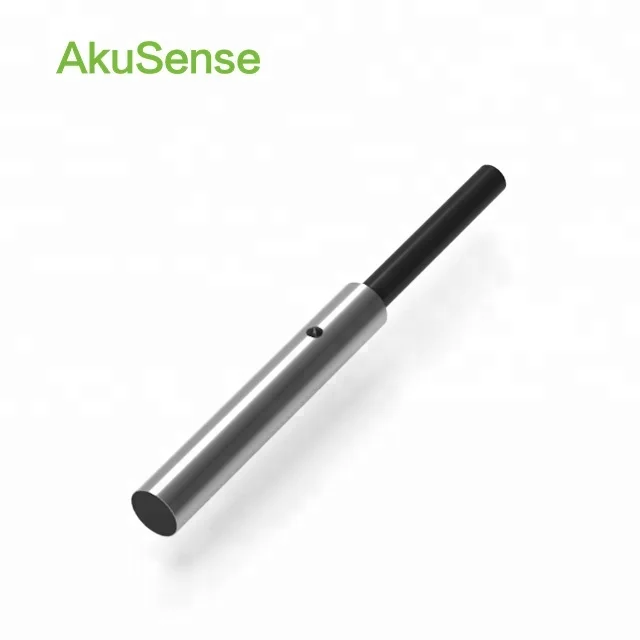

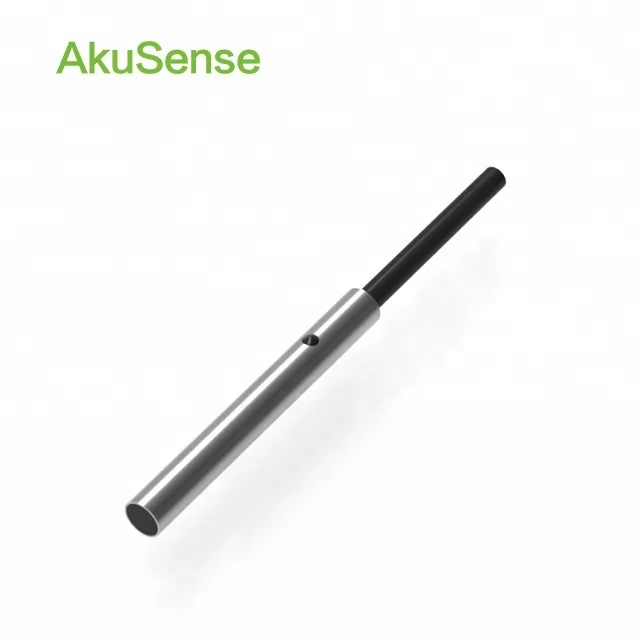

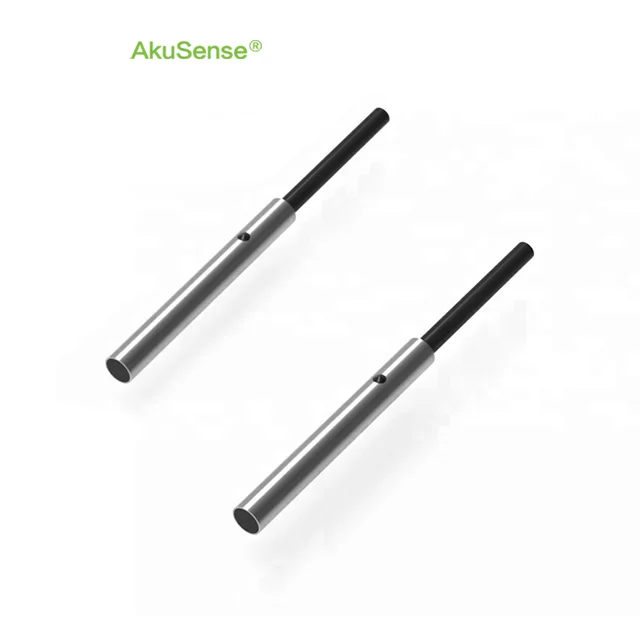

Flush type mini proximity switch inductive motion sensor with cable

Simple and reliable structure;
High sensitivity, the highest resolution is 0.1μm;
High measurement accuracy, output linearity up to ±0.1%;
The output power is large, and in some cases, it can be directly connected to the secondary instrument without amplification.
Easy Installation ;
CE certificate;
High Repeatability;
Contactless sensor;
IP67,waterpoof and oil resistance;
Zero damages to detected objects;
Protects against contamination for long life;
Enjoys excellent high temperature stability performance

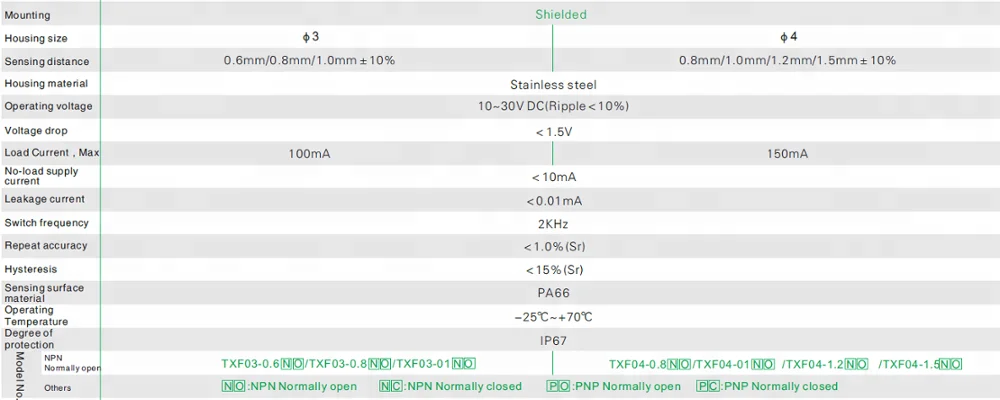

Product Description

TXF03

Mounting	Shielded
Housing size	φ3	φ4
Sensing disatance	0.6mm/0.8mm/1.0mm ±10%	0.8mm/1.0mm/1.2mm/1.5mm ±10%
Housing material	Stainless steel
Operating voltage	10-30V DC(Ripple<10%)
Voltage drop	<1.5V
Load current,Max	100mA	150mA
Current consumption	<10mA
Leakage current	<0.01mA
Switch frequency	2KHz
Repeat accuracy	<1.0%(Sr)
Hysteresis	<15%(Sr)
Sensing surface material	PA66
Operating Temperature	-25 ℃~+70℃
Degree of protection	IP67
Model No.(NPN NO)	TXF03-0.6NO/TXF03-0.8NO/TXF03-01NO	TXF04-0.8NO/TXF04-01NO/TXF04-1.2NO/TXF04-1.5NO
Others	NO:NPN Normally open NC:NPN Normally Closed PO:PNP Normally open NC:PNP Normally Closed

Company Information

About us

AkuSense was founded in 2010, One of the world’s leading precision and smart sensor solutions and product design manufacturer,national high-tech enterprise and Shenzhen elf-innovation SME100.Focus on optoelectronic and proximity technology,while good at magnetism, ultrasonics, piezoelectricity and wireless transmission, focusing on 3c, new energy, rail transit, medical, logistics and service robots, etc., providing industrial sensor products and solutions. Products cover high precision position detection, precision measurement, region identification, monitoring and diagnosis,ect.

Our company has set up R&D in Shenzhen and Seatle., and has opened with several laboratories in Japan and Europe.Over 20 years of experience,the team of highly experienced professionals has pierced the introduction of cost-effective product as the first choice for import substitutions.

AkuSense-2

♦OUR TEAM♦

♦EXIBITION♦

♦CERTIFICATE♦

FAQ

Q1 : What's your warranty ?

A: One year

Q2 : What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q3 : What's about MOQ?

A: Sample: 1pcs, Order:50 pcs ,OEM item: Depends on your Qty.

Q4 : If i want to release order, what's the payment method you accept ?

A: We accept T/T, West Union and Paypal .

Q5: How long can I receive the goods?

Normally, 3~5 days after your payment if they are in stock.

Q6:How to purchase our products?

A:Step 1,Please tell us the model No.you are interested in ,Quantity,sensing distance and your logo.

Step 2,Please tell us your installation environment,working temperature,we could recommand the most suitable products.

Step3,Profoma Invoice with order details as your requested will be sent to your mailbox,goods will be delivered upon receipt of your full payment and shipping charges.
