Конкурентоспособная цена 2265HPL 15 дюймов high-end Неодимовый НЧ-динамик dj

Конкурентоспособная цена 2265HPL 15 дюймов high-end Неодимовый НЧ-динамик dj

Категория: >>>
Поставщик: Guangzhou,Skytone,Audio,Company,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.56 $*	0.37 $*
Aug-18-2025	0.33 $*	0.90 $*
Jul-18-2025	0.75 $*	0.84 $*
Jun-18-2025	0.27 $*	0.64 $*
May-18-2025	0.32 $*	0.81 $*
Apr-18-2025	0.80 $*	0.80 $*
Mar-18-2025	0.9 $*	0.45 $*
Feb-18-2025	0.79 $*	0.2 $*
Jan-18-2025	0.74 $*	0.45 $*

Характеристики

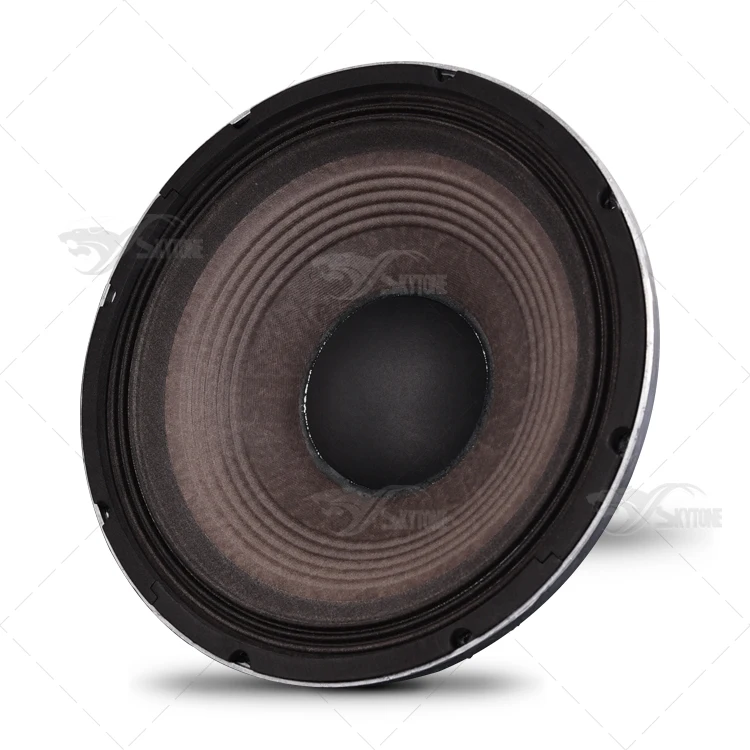

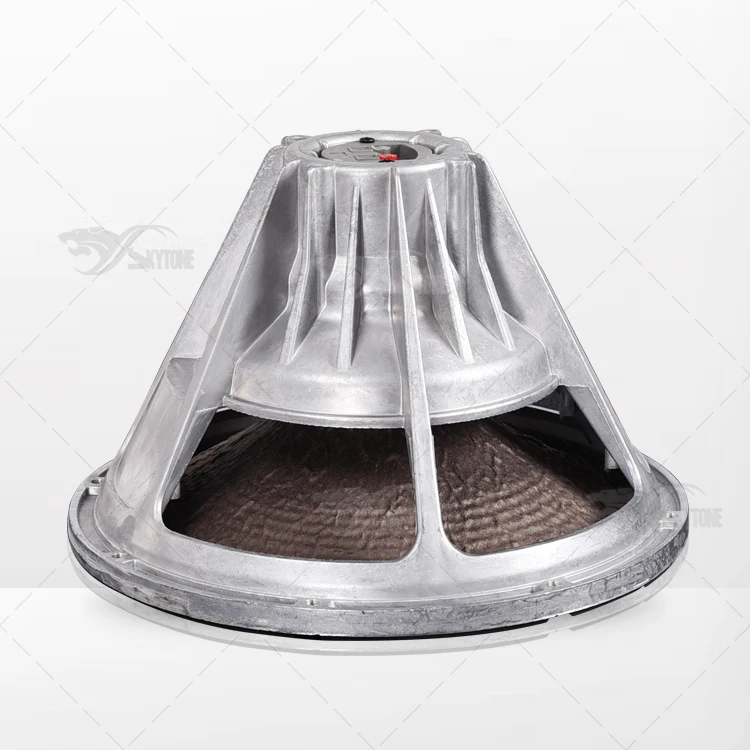

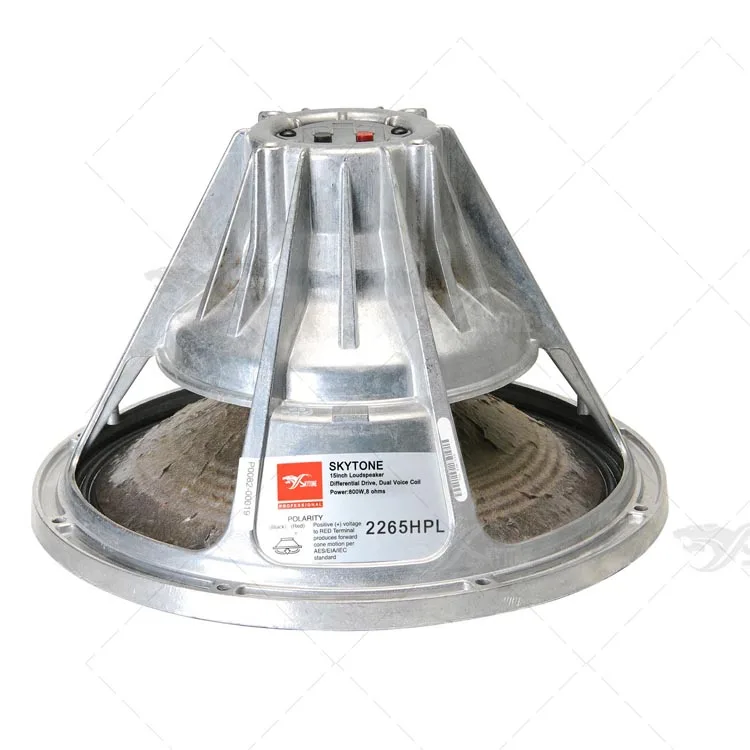

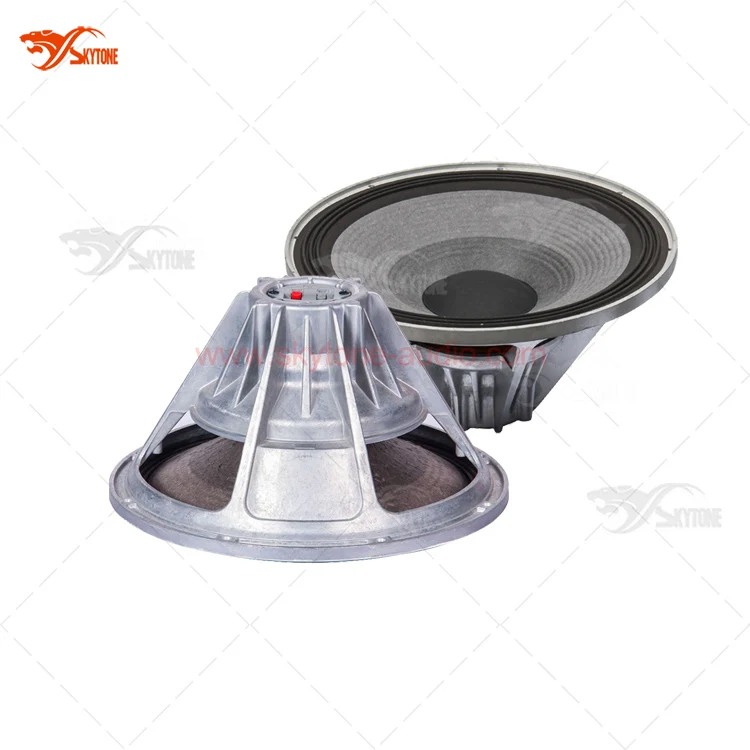

Competive Price 2265HPL 15" high-end neodymium pro woofer, Stereo Super Bass

VRX915M monitor/ pro audio
SRX715 pro speaker/speaker box
SRX725 dual 15" professional speaker/ pro audio

Features:

A. Neodymium magnet,

B. Aluminum frame

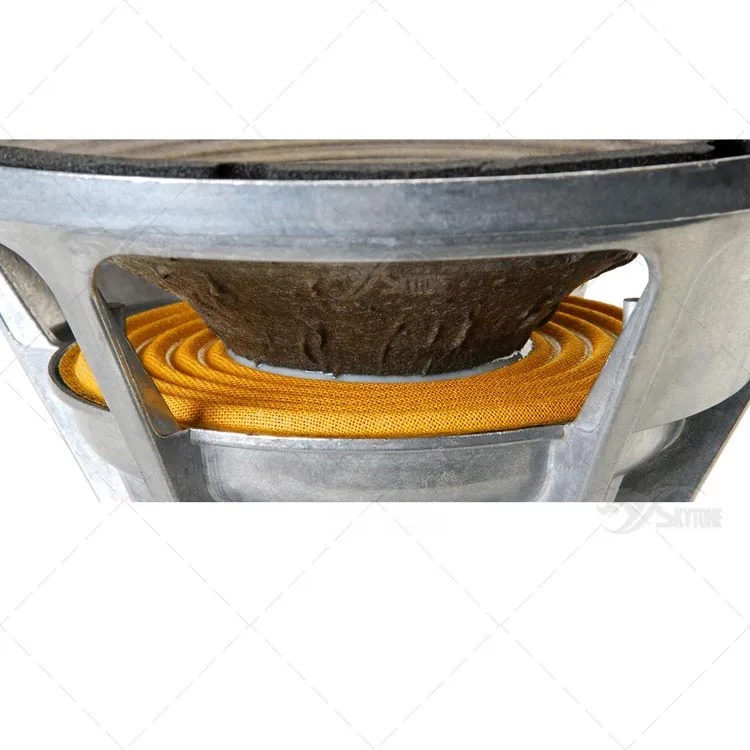

C. Dual voice coil

D. Differental Drive

E. Imported paper cone

F. Light weight

1.2265HPL Differential Drive 15" woofer is a capable, durable, touring-quality PA speaker.

2.Compared with traditional driver designs, patented Differential Drive employs a pair of inline voice coils in separate magnetic gaps instead of a single voice coil-gap configuration.

3.Available space is more effectively utilized, and heat is removed from the motor structure more efficiently. Specifically, the voice coils are wound reversely and are immersed in magnetic fields of opposite polarity.

4.This ensures reduced magnetic leakage flux and focuses more magnetic energy in the gaps where it is needed.

Highlights

Tour-class woofer with patented motor design
Better heat dissipation increases power handling, reduces power compression
Reduced inductance extends upper response
Lightweight, compact neodymium magnet system
Push-pull operation lowers distortion
Magnetically shielded for use anywhere

Specifications:

2265HPL Product Specifications
Nominal Diameter	15"
Power Handling (RMS)	800 Watts
Power Handling (max)	1400 Watts
Impedance	8 ohms
Sensitivity	97 dB 1W/1m
Voice Coil Diameter	3"
Thiele-Small Parameters
Resonant Frequency (Fs)	37 Hz
DC Resistance (Re)	5.1 ohms
Voice Coil Inductance (Le)	1.7 mH
Mechanical Q (Qms)	3.3
Electromagnetic Q (Qes)	0.36
Total Q (Qts)	0.32
Compliance Equivalent Volume (Vas)	6.22 ft.³
Maximum Linear Excursion (Xmax)	8 mm
Materials of Construction
Cone Material	Paper
Magnet Material	Neodymium
Mounting Information
Overall Outside Diameter	15.125"
Baffle Cutout Diameter	11.375"
Depth	8"
# Mounting Holes	8
Optimum Cabinet Size
Sealed Volume	1.18 ft.³
Sealed F3	91Hz
Vented Volume	2.44 ft.³
Vented F3	56 Hz
