        Electromagnetic Flow Meter Made in China





Description

The magnetic flow meter is one of the most flexible and universally applicable flow measurement systems available
It is a volumetric flow meter which does not have any moving parts and is ideal for waste water applications or any dirty
liquid which is conductive or water based. Magnetic flow meter is also ideal for the applications where low pressure
drop and low maintenance are required.



Application

- Waster water industry: transport networks sewage treatment plants, sludges
- Chemical industry: acids alkalis, dosing applications, abrasive or corrosive mediums
- Metal & mining industry: mediums with a high solid content, like ore or excavator mud
- Water industry: Revenue metering, district metering water abstraction, leakage detection
- Pulp & paper industry: pulp, pastes, sludges & other caustic mediums, liquor, additives, bleaches, colourants
- Food & beverage industry: mixing, dosing and filling of drinks unde r hygienic conditions filling systems applications



Specification

Converter	Compact	Remote	Compact with Battery Power
Accuracy	0.5% of Rate	0.5% of Rate	1.0% of Rate
Conductivity	>5μs/cm	>5μs/cm	>5μs/cm
Min. Velocity	0.3 m/s	0.3 m/s	0.3 m/s
Max. Velocity	10 m/s	10 m/s	10 m/s
Turndown Ration	Standard 1:20; Others on request
Output	4-20mA/Pulse	4-20mA/Pulse	Consult the factory
Power Supply	(1) 110-240Vac (2)  18-36 Vdc	(1) 110-240Vac (2)  18-36 Vdc	Lithium Battery
Communication	Optional: RS485; MODBUS; HART; Profibus-DP
Ex-Proof Level	Exd[ia]qIICT5
Protection Level	IP65	Converter: IP65 Sensor: IP65; (IP68 on request)	IP65
Diameter	DN10-DN1200
Installation	1. Flange (Standard: ISO; Optional: ANSI, DIN, JIS); 2. Thread (Standard: G; Optional: NPT); 3. Wafer
Pressure Rating	Standard: 1.6Mpa; Others on request
Fluid Temperature	Standard: PTFE: <120°C (customized PTF)E: <120°C) ;   Rubber: <60°C
Ambient Temperature	-30°C-60°C	-30°C-60°C	-30°C-60°C





Weight & Packing

Type	Flange
Diameter/mm	6	10	15	20	40	50	80	100	150	200	250	300	400	500	600
Net weight/KG	6	8.5	9	9.5	10.5	13	16	18.5	31	40	60	75	120	180	300
Packing	Carton Box									Wooden Box





Advantages                                                                           Selling Points

- Accuracy:± 0.5of Rate / ±0.2% of Rate                                         Ø OEM & ODM services
- Diameter range: DN4-DN3000                                                      Ø  Enough stock with short delivery time
- Fluid Temp.: - 20...+160°C                                                           Ø  Quality product with competitive price
- Housing Material:  Carbone steel /SS304 / SS316                        Ø  Fast response services
- Electrode material: SS316l /Titanium/ HC/Tantalum..                    Ø Guarantee time is 24 months.
- Connection: wafer/ Sanitary / Flange                                             Ø  Certificate of CE & ISO 9001: 2008





Calibration Certificate









Model Selection



Packing & Shipping

Facility & Certificate

SURE Exhibition







Product Application

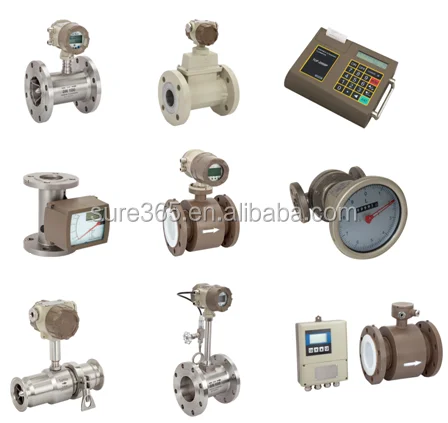

Product Gallery



How to Contact us
