Модификация поверхности плазменной коронавирующей машины для HDPE LDPE PVC

Модификация поверхности плазменной коронавирующей машины для HDPE LDPE PVC

Категория: Other Plastic & Rubber Machinery >>>
Поставщик: Shenzhen,Hefengjiada,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.24 $*	0.30 $*
Aug-15-2025	0.45 $*	0.90 $*
Jul-15-2025	0.10 $*	0.24 $*
Jun-15-2025	0.94 $*	0.13 $*
May-15-2025	0.44 $*	0.14 $*
Apr-15-2025	0.42 $*	0.64 $*
Mar-15-2025	0.45 $*	0.48 $*
Feb-15-2025	0.8 $*	0.79 $*
Jan-15-2025	0.30 $*	0.85 $*

Характеристики

Plasma corona machine surface modification for HDPE,LDPE,PVC,PET film

What is corona?

Corona treatment increases the bonding characteristics of a substrate by increasing the surface energy (dyne level)

.Many plastic films have an inherently low surface energy which effects particle adhesion to the substrate. Corona

treatment is the most common surface treatment to increase polymer dyne levels in the converting industry. This is

largely because corona treatment can be done economically and at high line speeds.

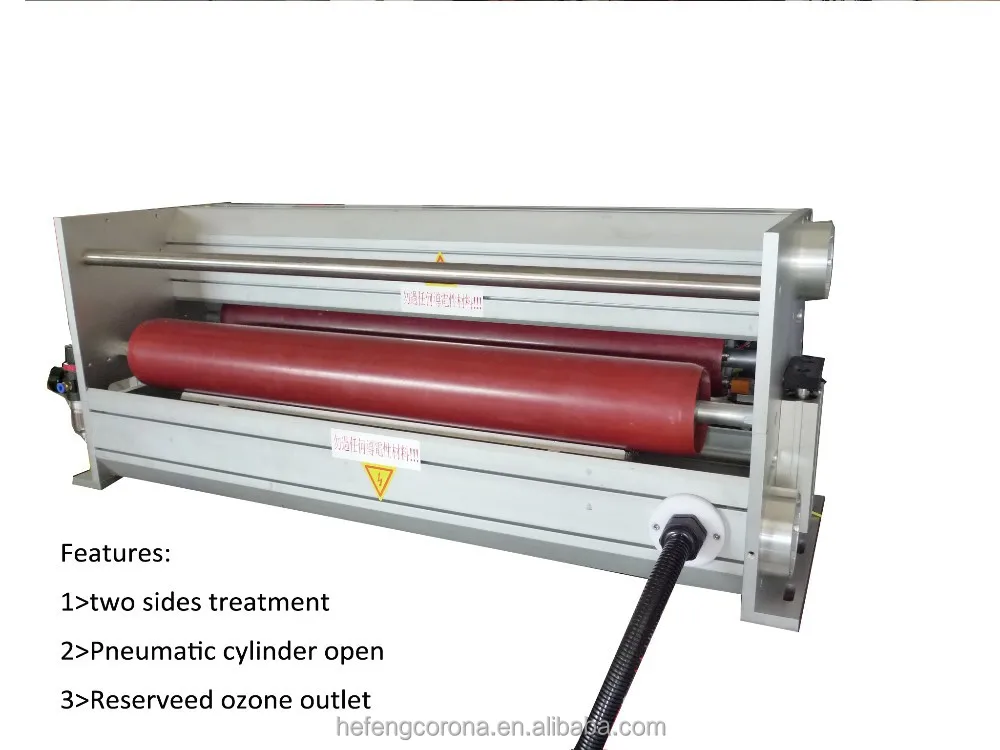

Product Features

Corona bare roller diameter 106mm/126 with 3mm thickness silicone tube
Two sides corona treatment for the web
Metal electrode for discharging,4fin,7fin,11fin,18fin,can be segmented
Cylinder pneumatic open method convenient for threading
Corona station used aluminum frame,antioxidant.
A drawing is provided to display web directions.

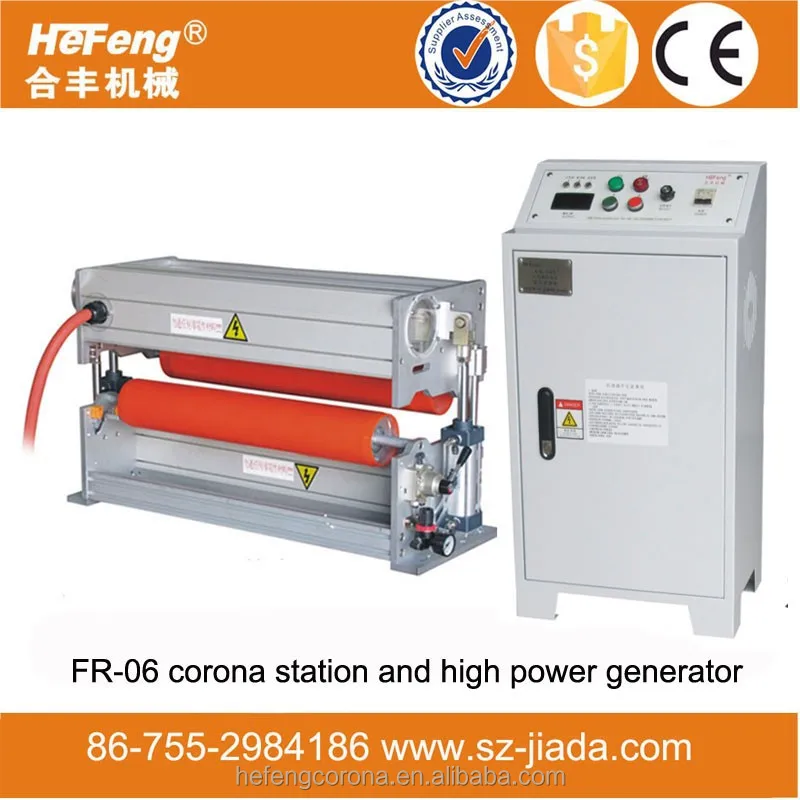

Equiped with generator power:3-20KW
Corona generator can be remoted control and speed monitoring
Corona Watt density can be adjusted
Generator functions:Digital LCD screen display,manual control and automatic working mode(optional)
When corona treater stop exhaust blower automatic delay turn off
A variety of corona treater working status alarm and equipment protection alarm(optional)
Accessories:antistatic eliminator,exhaust blower

Online Installation Application

1. Online installation,work for PP,BOPP,PE,PET,HDPF,LDPE,PS,PI,PVC plastic film,foam,string

for coating machine,slitting machine,lamination machine,etc...

.jpg

Treatment Effect

Certificate

undefined

Packing

Plywooden case

Soundproof genset advantages

FAQ:

1.How to book a suitable corona machine?

We need to know the follow datas:

>What is the min speed and max speed

>What is the treated material,conductive or nonconductive

>Install in what kinds of equipment,printing machine,coating machine,limination machine or others?

Take a photo to show us the installation position .

2.How to know the treatment result?

You can use our Taiwan corona test pen to test or use the water or water-droped angle machine or test.

Company Information

Heyuefeng Technology Co.,Ltd is mainly devoted to corona and plasma surface treatment industry of R&D and

production.Its equipment is widely applied on pretreatment of coating,combination,ink jet,laminating,gluing,various

printing industry to improve the surface adhesion of the material,such as PP,PET,PVC,BOPP,laser film,aluminium

platinum,copper platinum and a variety of self-adhesive label.Compare with traditional flame treatment corona treatment

and plasma treatment not only safe and can save the cost,but also highly raised the production efficiency,more important,

it satisfy international export packing requirement.Now we are all staffs efforts to develop higher quality and low cost of

surface treatment equipment return the customers continued support.

l In 2007 Registered our trademark "HeFeng machinery"

l In 2010 Shanghai company get through the ISO quality management system, certification NO: 00910 q11980ros;GB/T19001-2008

l In2010 the company independent research Plasma treatment machine, obtain the European CE certification: certification NO: 100914 / SHE697;

l In 2010, the company independent research plasma treatment machine get thenational utility model patent and design patent.

l In June 2010, the company takes part in the Shanghai world Expo and exhibition for 180 days, meanwhile get the honor of China's outstanding

private enterprises. certification NO: 0000002218;

l In 20011 Registered our another trademark ""HEYUEFENG"

l In 2011, the company independent research electrostatic eliminator achieved CE certification, NO: MTI110106001CE; MTI1101066001CS;

l In 2012, the company independent research drawer-type corona treater get thenational utility model patent and design patent.

l In 2013, the company independent research drawer-type corona treater achieved CE certification, NO: EC. 1282.1 e130325. SHE0401;;

l In 2013, the company independent research corona ceramic electrodes get thenational utility model patent and design patent.

undefined
