Innovation!!Portable x-ray tube/dental x-ray machine with low cost MSLPX02H
As a kind of portable x ray machine,our portable medical diagnostic x ray machine,fluoroscopy machine is factory sell directly and through the CE certification.You could visit our portable fluoroscopy machine,portable fluoroscopy.
Product Description
Specifications for x-ray tube
Type:Digital Imaging System
Classification:Imaging Diagnostic Equipment
Image Detector:Flat Panel Detector
Export Markets:Global
Application of digital xray machine MSLPX02
The 4kW portable digital high frequency X-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.
Features for x-ray tube machine
1) Simple & light structure;
2) 6-segment LED digital display;
3) Anatomical memories for 24 selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs.
Detailed Specifications of portable x-ray tube
| Main components | Parts | Model No./ Specifications | Qty | Remark |
| X-ray Units | Portable high frequency x-ray unit | YJP040R-A | 1 set | |
| X-ray tube | GF181-0.6/1.5-125-60 | 1 set | ||
| Collimator | YJA-VI | 1 pc | ||
| DR System | Digital detector | Xmaru1210p | 1 set | |
| Sync box | YJT-III | 1 set | ||
| laptop | Y470N-IFI(H) | 1 set | ||
| DR image processing software | -- | 1 set | ||
| Auxiliaries | Steel support | YJF-I | 1 set | Optional |
Parameters for x-ray tube MSLPX02
| Model | MSLPX02 |
| Power supply | Voltage: AC220V± 10%, 50/60Hz ± 1Hz Capacity: ≥5kVA; Internal resistance: ≤0.5Ω |
| Maximum output power | P =110kV×36mA=4kW |
| Nominal output power | 100kV,40mA,0.1s,4kW |
| Frequency | ≥40kHz |
| kV adjustable range | 40kV~110kV, continuous regulation, stepping 1kV |
| mA adjustable range | 36mA~70mA |
| mAs adjustable range | 1mAs-200mAs,continuous regulation, stepping 1kV |
| Exposure time adjustable range | 0.04s~3.2s |
| X ray tube | Focus: 0.6/1.5mm, Thermal Capacity: 76kHU |
| Digital detector | Limit resolution: 3.9LP/mm; A/D convert:14bit; Pixel region: 264×325mm; Pixel matrix: 2080×2560; |
| Notebook Computer | a) Model:Lenovo Y470N-IFI(H) b) Processor: Intel Core i5-2410M(2.3GHz) c) Memory capacity: 4GB d) Hard disk: 750GB e) Screen size: 14inch |
| Anatomical program | 24 memory choices available |
| Dimension | 290×260×230 mm |
| Weight | 18.8kg |
| Accessories | Standard: manual switch,cable Optional: mobile steel support |

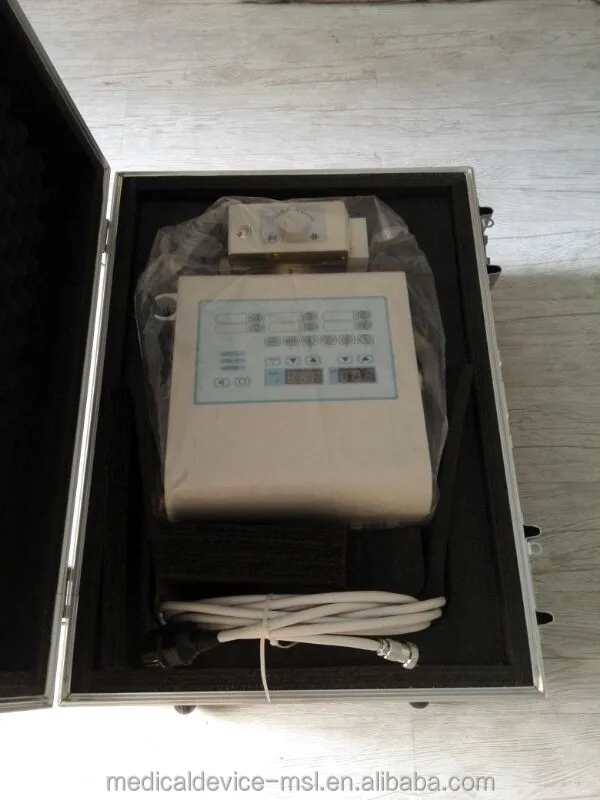

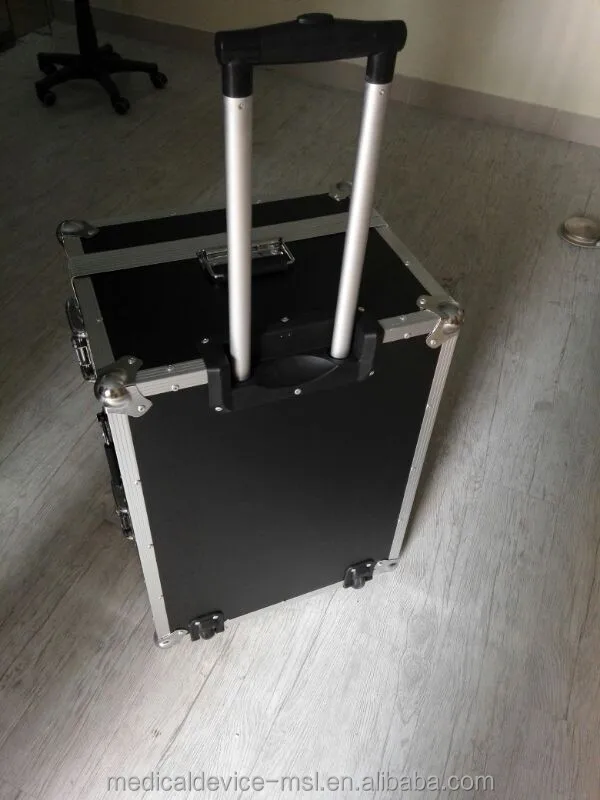

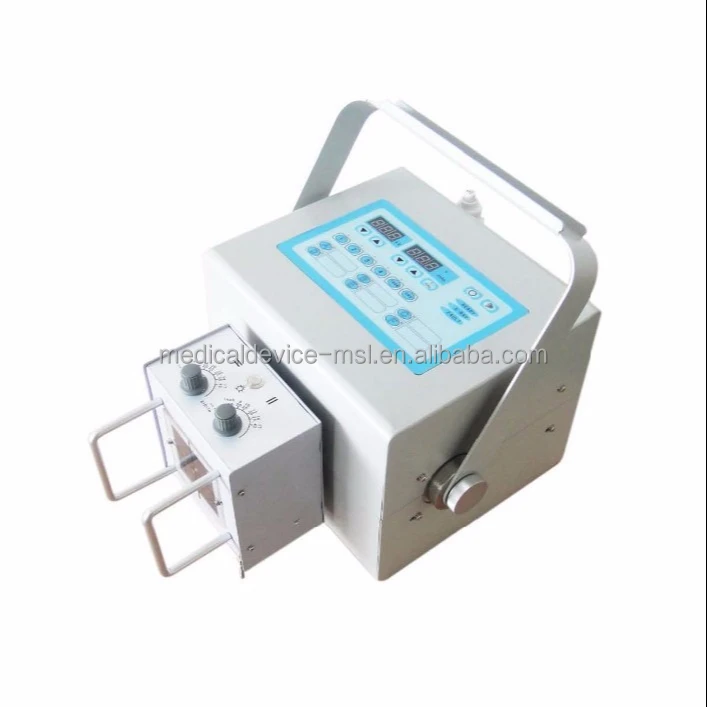

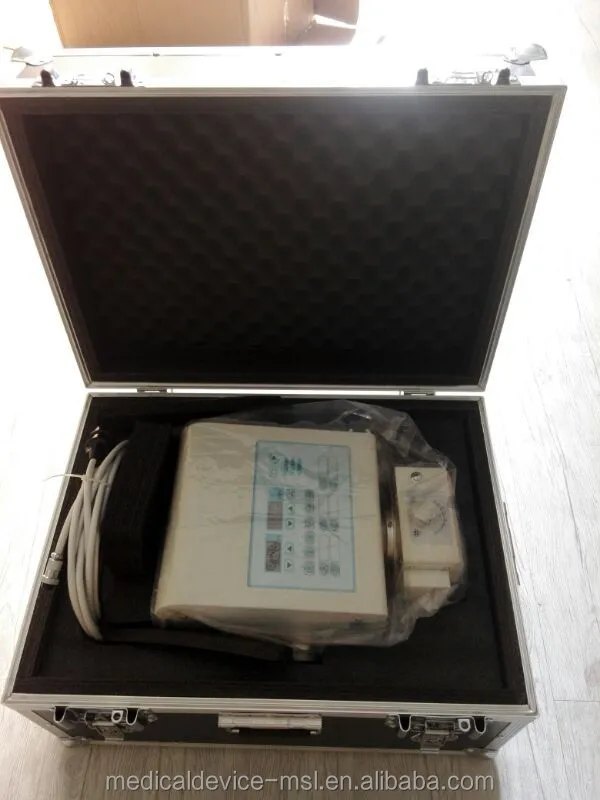

Main pictures
More detail for x-ray tube machine as follow:
Factory images of our x-ray tube machine work shop:
Environmental and safety requirements of climate machinery shall be in accordance with the standard requirements on which they are based.
