Характеристики

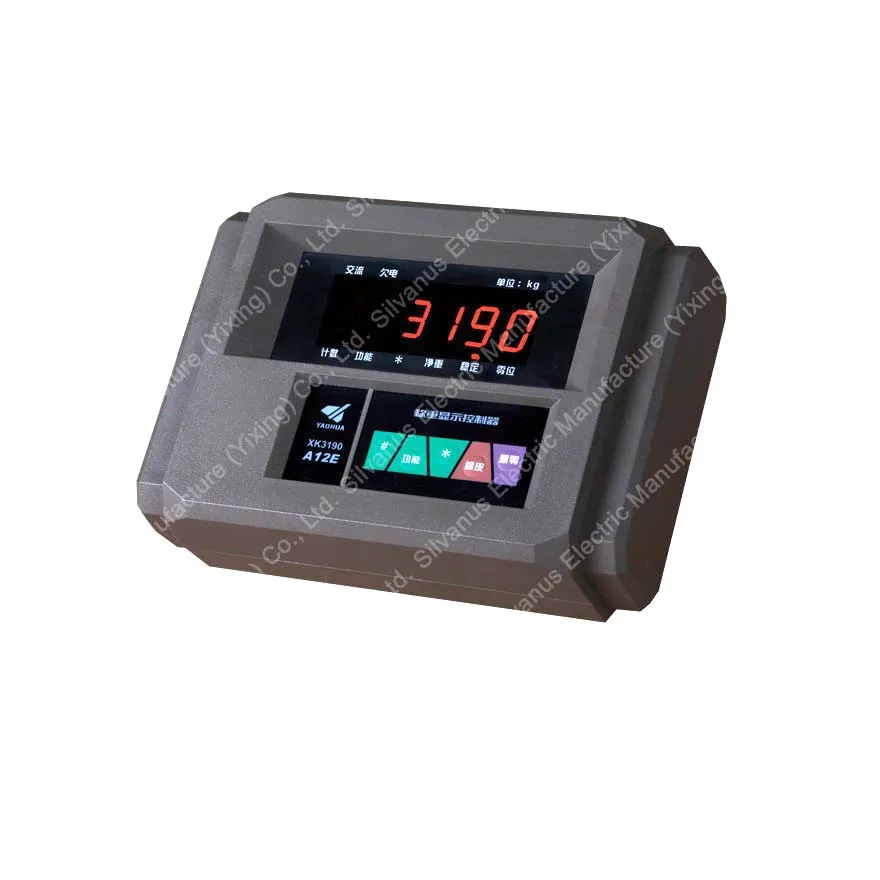

Control instrument XK3190-A12+EK3
Introduction
XK3190 - A12 + E with high precision analog-to-digital conversion technology and special software anti-vibration technology, ac/dc, suitable for electronic platform scales, electronic platform scales, mechanical and electrical transformation scale etc using 1 ~ 4 sensor static weighing system.
Recommend a non-standard manufacturing of varieties:
In pieces with kg/lb type conversion function of restructuring;(foreign trade) for products
In pieces with the function of automatic calculation average type of restructuring;(applicable to animal husbandry scale)
In pieces with two fixed value of output function;(applicable to low speed weighing testing)
Standard function
High precision A/D conversion, readability is 1/30000
Calling code shows convenient, farmar, alternative sense of observation and analysis of tolerance
Special digital filtering technology, enhance the system's ability to resist vibration
In pieces zero tracking range and scope of zeros (boot/manual), can be set up respectively
Pieces of digital filtering speed, amplitude and the stability of the time can be set up
In pieces with weighing counting functions;(for power-off protection)
Pieces of backlight model can choose
Pieces can be random charging;With undervoltage directives and protection
Pieces of random configuration 6 v / 4 ah maintenance-free battery
Mixer equipped with RS - 232 communication port, baud rate, optional optional communication way
Mixer equipped with 20 ma current loop large screen communication port
Technical parameters
A/D conversion way: Σ - Δ transformation way
A/D conversion rate: 10 times per second
Maximum number of A/D conversion: 20 bits
The input signal range: - 10 ~ 15 mv mv
Input sensitivity: 1 mu V/e or higher
Sensor for bridge power: DC5V;I ma 150 or less
Number of connected sensor: can meet four 350 Ω sensors
Sensor connection mode: 6 wire system
Degree verification points: 3000, the largest outside points degree: 30000, the maximum amount of resolution: 300000
Dividing value: 1/2/5/10/20/50 optional
Six pieces display mode (A12) : LCD, six state indicator
Six pieces display mode (A12E) : LED digital tube, six state indicator
Display area: - 2000 ~ 150000 (d = 10)
Big screen interface (optional)
Serial output signal output way:, current loop signal
Baud rate: 600, transmission distance: 2000 meters or less current loop signal
Serial communication interface (optional)
Interface type: RS232C, baud rate: optional 1200/2400/1200/2400
Communications: automatic successive optional way/instruction
Transmission distance: RS232C 30 meters or less
Ac power supply: AC187 ~ 242 v.49 ~ 51 hz
Dc power supply: built-in battery DC6V / 4 ah
Package and Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
