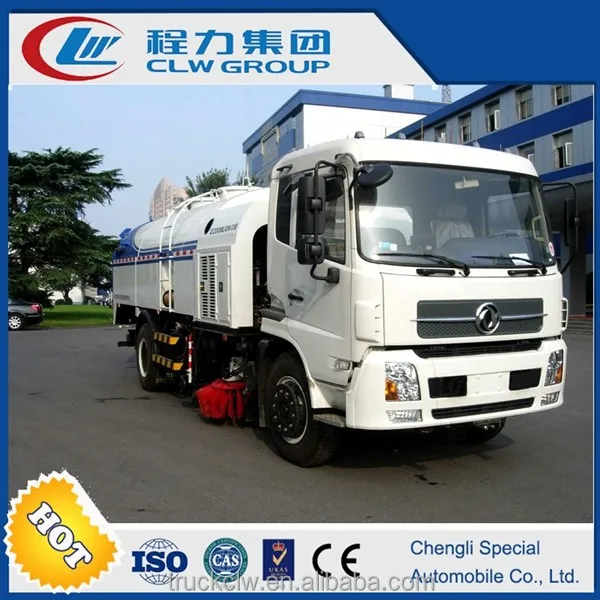

Dongfeng Chassis 4x2 road sweeping truck with low price and best quality









 1. Road washer is used to sweep pavement, curb, kerbstone facade and the upper surface, as well as the urban streets, highways, airports, docks, large square, large enterprise factory hardening road, ground cleaning, cleaning work.



2. Combined with road sweeping and road washing. It is able to accomplish sweeping, high pressure cleaning and garbage collection in one time.



3. Obtain the road cleaning, road surface cleaning, high pressure cleaning, kerbstone washing, garbage collection, sewage recycling, spray and road wall cleaning and other functions.



4. The high pressure water control system is equipped with advanced technology, when high pressure water pump start working and the water valve switch, the pump can automatic unloading;



5. Garbage box set a spill-proof alarm device and high pressure spray cleaning device. Spill-proof alarm device

 can prevent sewage from straw overflow when working, cause secondary pollution; High pressure spray cleaning device after the dumping of sewage box for automatic cleaning, greatly reduce the labor intensity of the operators;



6. Suction nozzle built-in long line spray rod, short distance from the ground and great water impact the nozzle,

will be sent to the suction sewage directly. And can be adjusted according to road surface pollution, long line Angle of nozzle on the washing, in order to achieve the best cleaning effect;



7. High pressure water pump, the key hydraulic components, electrical components and high pressure spray nozzle USES the domestic and international famous brands.







Mobile food truck technical specification





Item			Main parameter
Truck Model			CLW5160TXSZZ5T5
Chassis model			ZZ1167K501GE1
Emission standard			Euro 4
Engine	Main engine	Model and manufacturer	MC07.21-50 Sinotruk
		Power	151kw
		Displacement	3856ml
	Road sweeper engine	Model and manufacturer	EQ6BT5.9 Dongfeng
		Power	118kw
		Displacement	2771ml
	Fuel		Diesel
Dimension & Weight	Overall dimension		8570×2500×3150 mm
	Wheel track	Front track	1960,1770mm
		Rear track	1860,1586mm
	Wheel base		4500mm
	Allowable passengers		3
	F/R overhang		1210/2150
	Approach angle		19°
	Departure angle		13°
	Curb weight		11860kg
	GVW		16000kg







Performance parameter	Dustbin volume		9m3
	Water tank volume		7m3
	Max Sweeping & cleaning Width		4.1m
	Operating speed		5-13km/h
	Cleaning speed		15-20km/h
	Cleaning capacity		70000m2/h
	Max particle size		≥60mm
	Tipping angle		≥48°
	sweeping efficiency		≥96%
Driving performance	Brake distance		≤10m
	Max speed		90km/h
	Max Gradeability		30%
High pressure cleaning system	High pressure water pump	Type	High-pressure plunger pump
		Place of origin	Germany
		Rated pressure	20MPa
		System pressure	10MPa
		Rated flow	122L/min
		Rated speed	1000r/min
	Water valve and control	Water valve type	High pressure stainless steel valve,10MPa
		Control mode	Cylinder drive, electric control
	Water lever nozzle type		High pressure washing type











 1. Top quality products

 2. OEM support

 3. Low MOQ

 4. 1 year warranty

 5. After-sale service

 6. 24hrs online for you

 7. Fast delivery















 Why choose us



1.Quality control

 We make quality control for each step while producing and before shipping.

 2.24/7 care

 We are always available to help.

 3.Rich experience

 We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.

 4. Professional team

 We have dynamic and well trained team ready to be service of you.

Pls do not hesitate to contact me with your requirements.

I am a easy going and willing to talk to you any time.
