Molded Graphite Block

 Fine grain size graphite materials manufacturer in China.

Sincerely hope to cooperate with you.





 Please contact:



Contact person: Lucy Xu(Ms.)



Tel: +86-411- 84353471  Fax:+86-411-84357415



Mobile(Whatsapp): +86-13644933386



Skype: duramaterials21



Email: lucy(AT)duramaterials.com



1.Applications

- Molds, chutes, sleeves, sheathes, linings, etc. in continuous casting systems for making shaped steel, cast iron, copper, aluminum.

- Sintering molds for cemented carbides and diamond tools.

- Sintering molds for electronic components.

- Electrodes for EDM.

- Heaters, heat shields, crucibles, boats in some industrial furnaces (such as furnaces for pulling monocrystalline silicon or optical fibers).

- Bearings and seals in pumps, turbines and motors.

- and so on.



2.Programmable properties

- Fine grain

- Homogeneous structure

- High density

- Excellent thermal conductivity

- High mechanical strength

- Proper electrical conductivity

- Minimum wettability to molten metals



3.Typical Sizes



Blocks	Length x Width x Thickness (mm) 200x200x70, 250x130x100, 300x150x100, 280x140x110, 400x120x120,  300x200x120, 780x210x120, 330x260x120, 650x200x135, 650x210x135, 380x290x140, 500x150x150, 350x300x150, 670x300x150, 400x170x160, 550x260x160, 490x300x180, 600x400x200, 400x400x400
Rounds	Diameter (mm): 60, 100, 125, 135, 150, 200, 250, 300, 330, 400, 455 Thickness (mm): 100, 135, 180, 220, 250, 300, 450

* Other dimensions are available on request.



4.Specifications

Specifications	Unit	Value
Bulk Density	g/cc	1.70 - 1.85
Compressive Strength	MPa	25 - 70
Bending Strength	MPa	15 - 40
Shore hardness		30 - 50
Specific Resistance	micro ohm.m	8.0 - 15.0
Ash  (Normal Grade)	%	0.05 - 0.2
Ash  (purified)	ppm	30 - 50
Maximum Grain Size	micron	44

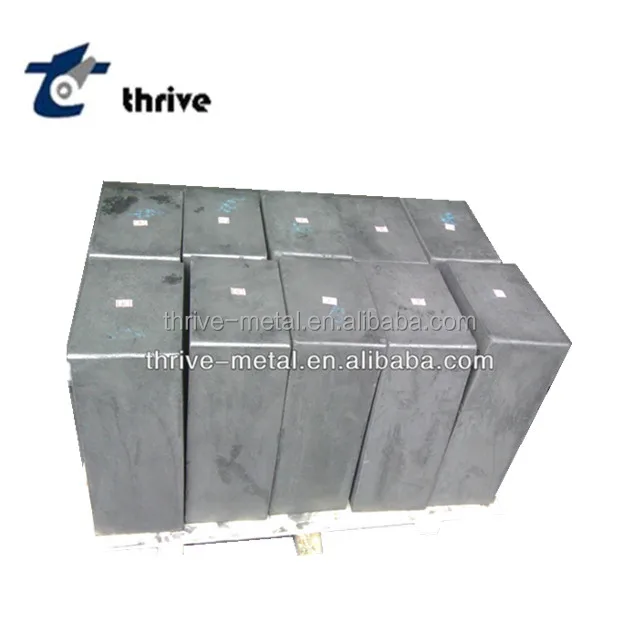

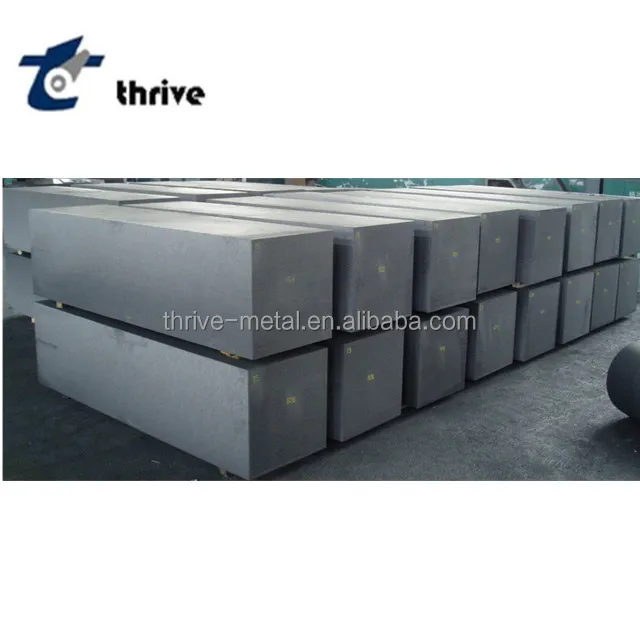

Graphite block

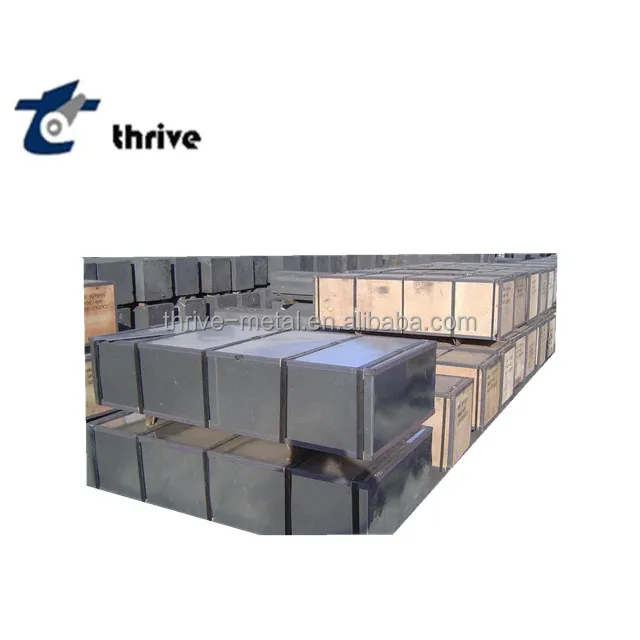

Packing

Graphite rod
