Mobile jib crane ,small jib crane , small lift hoist crane

Product Description

EBZ type mobile jib cranes can move in any direction to the required locations, and electric hoist can move on the cantilever, suitable for the weight need to move or installed.The lifting device has simple structure, convenient operation, flexible,large work space,application widely characters.

Application:

Used for the goods or the workpiece lifting operations, the other end with the counter weight, as opposed to a lift arm rotating at the same time to balance the lifting. Widely used in factories, workshops, field, warehouse, small equipment installation.Goods and workpiece loading and unloading, and low building where cannot erection crane and so on.

Features:

1) Advanced combination of motor, reducer, brake and drum.
2) Light duty type
3) Safe traveling
4) Fluent starting and stopping
5) Easy and convenient maintenance

Specifications:

Lifting Capacity(t)			0.25	0.5	1	2	3	5
Lifting Height(m)			2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 5.5m
Valid Radius(m)			2, 3, 4, 5, 6
Working Duty			A3-A5
Speed	Hoisting	Normal Speed(m/min)	2.6 - 8
		Slow Speed(m/min)	0.7 - 2
	Slewing Spped(r/min)		0.8
	Circulate Spped(m/min)		14 - 20
Slewing Angle			180, 270, 360 or others

Technological Parame

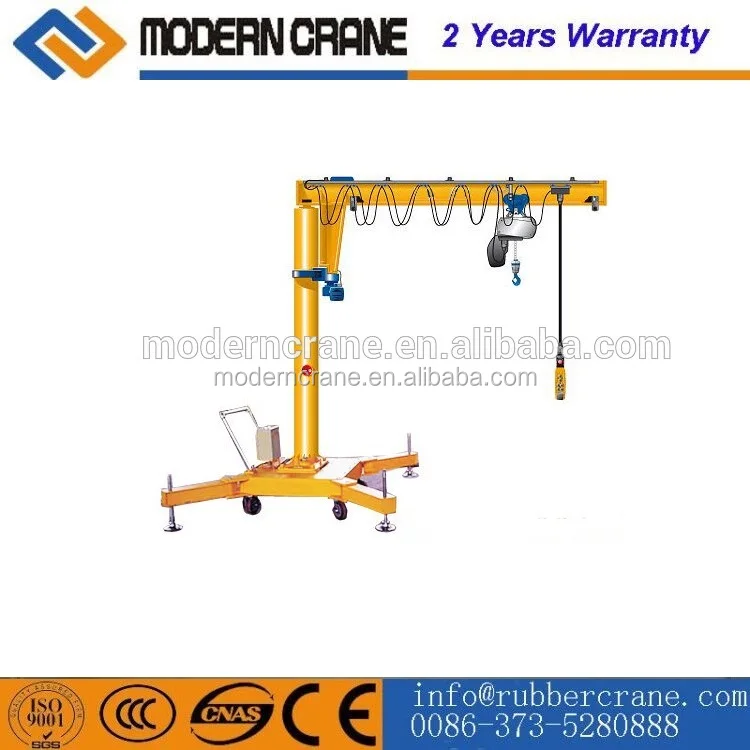

Mobile column-mounted jib crane

Product parameter

model	rated lifting capacity(t)	lifting speed(constant/slow speed)	rotation angle(°)	overall length(mm)	max. radius of gyration(mm)	min. radius of gyration(mm)	overall height(mm)	lifting height(mm)
BZ0.25-5	250kg	8/2m	360	4180	4000	1000	3910	3000
BZ0.5-5	500kg	4/1m	any angle	4160	4000	1000	4070	3000
BZ1-5	1000kg	8/2m	any angle	4160	4000	1000	4140	3000
BZ2-3	2000kg	4/1m	any angle	3460	3300	1000	4140	3000
BZ2-5	2000kg	4/1m	any angle	5260	5000	1300	4270	3000
BZ3-5	3000kg	8m	350	4260	4000	1600	5550	4000
BZ5-4	5000kg	8m	350	4175	4000	1900	4740	3000
BZ5-6	5000kg	8m	350	6175	6175	1900	5780	4000

Pjc

movable jib crane 2.jpg

Packaging & Shipping

Customer visiting

Company information

Modern Crane co.Ltd., focuses on lifting resolutions for customers .We provide design ,production and service of different lifting equipment ,which covers electric wire rope hoist ,china hoist ,jib crane ,bridge crane ,gantry crane ,port crane etc.

Under principle CUSTOMER FIRST ,MODERN CRANE people always provide customers with first class products and excellent service. MODERN CRANE people follow a strict QUALITY CONTROL system which ensure perfection of each lifting equipment .Our products have completely passed ISO9001 ,CE ,GS and other quality system certificates .Thanks to our high quality products and outstanding customers service ,MODERN CRANE has earned a reputation customers and gained a global sales network reaching Brazil , India ,Philippine ,Ukraine ,Argentina ,Spanish ,Malaysia and other 30 countries .

With the commitment of customer satisfaction ,we are expecting to widen and deepen the cooperation and communication with all friends all over the world .
