Арочного профнастила оцинкованные листы режущую машину

HIGH SPEED OF CONSTRUCTION

With our MBM Mobile Factory, a 1000-square meter structure can be built in 24 hours. Using the high speed of fabrication and seaming of panels,a crew of 10 to 12 workers can fabricate and erect nearly 100 arched panels in one day.

LOW COST
Due to the above reason, the cost of construction of a MBM Building is less than that of conventional and prefabricated buildings.

ON-SITE MANUFACTURING
The Mobile Factory is taken directly to the construction site and the building is fabricated completely on-site. No costs of shipping of building components from a fabrication shop are incurred.

MOBILITY AND ACCESS TO REMOTE AREAS

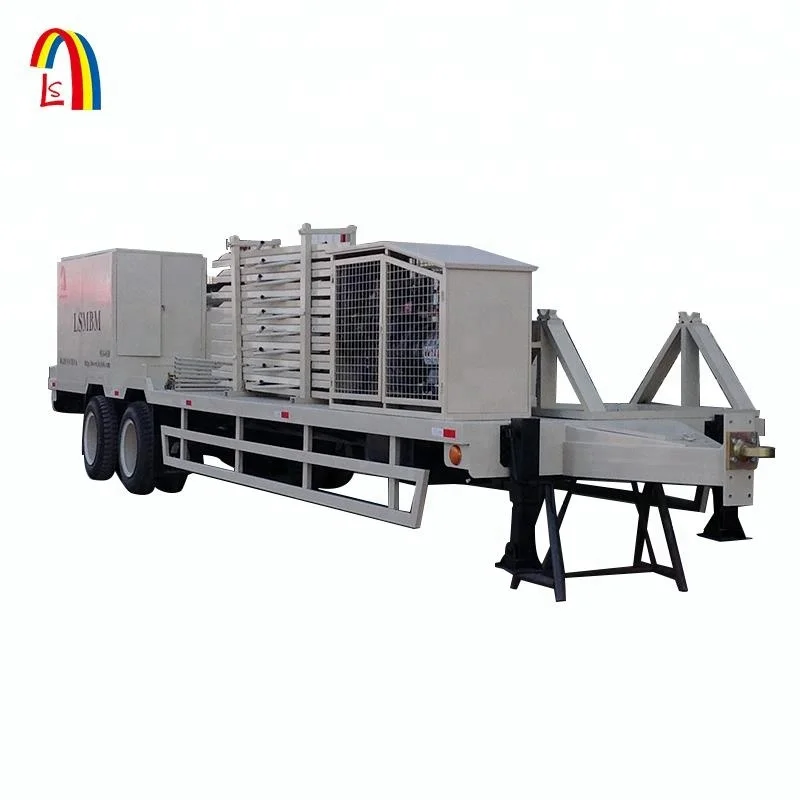

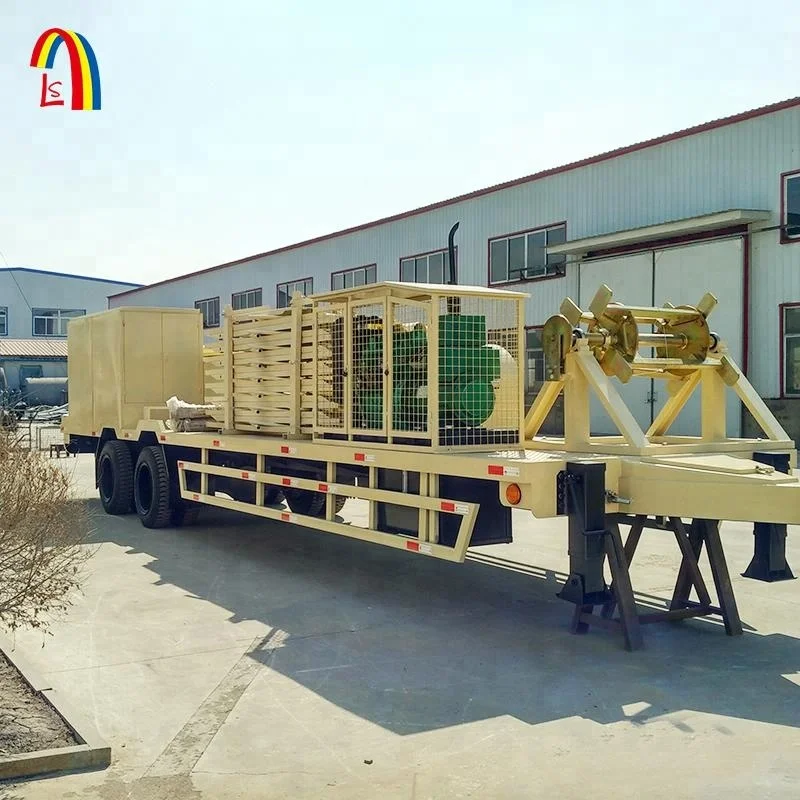

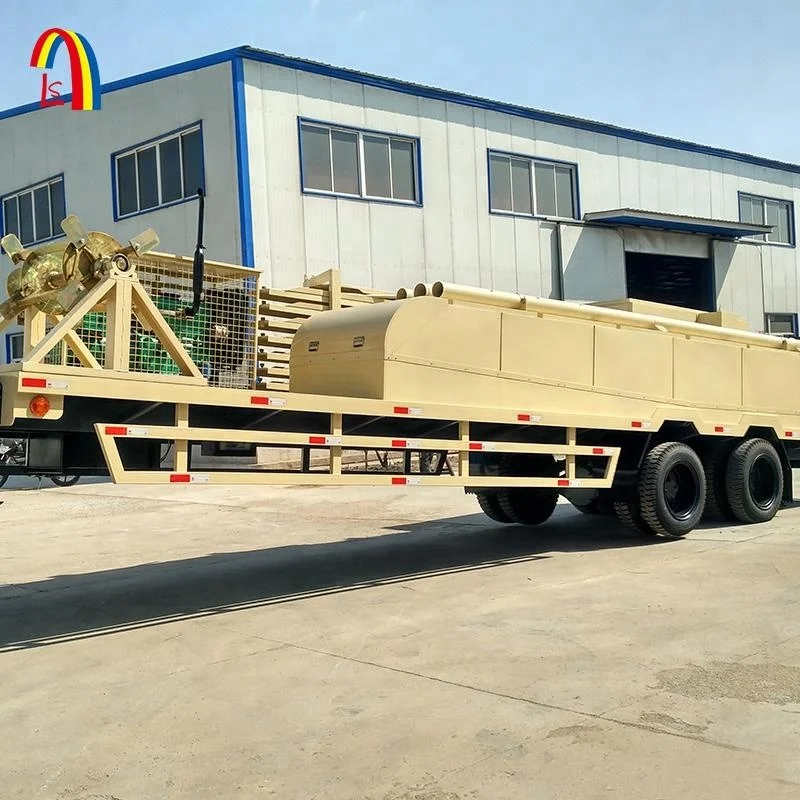

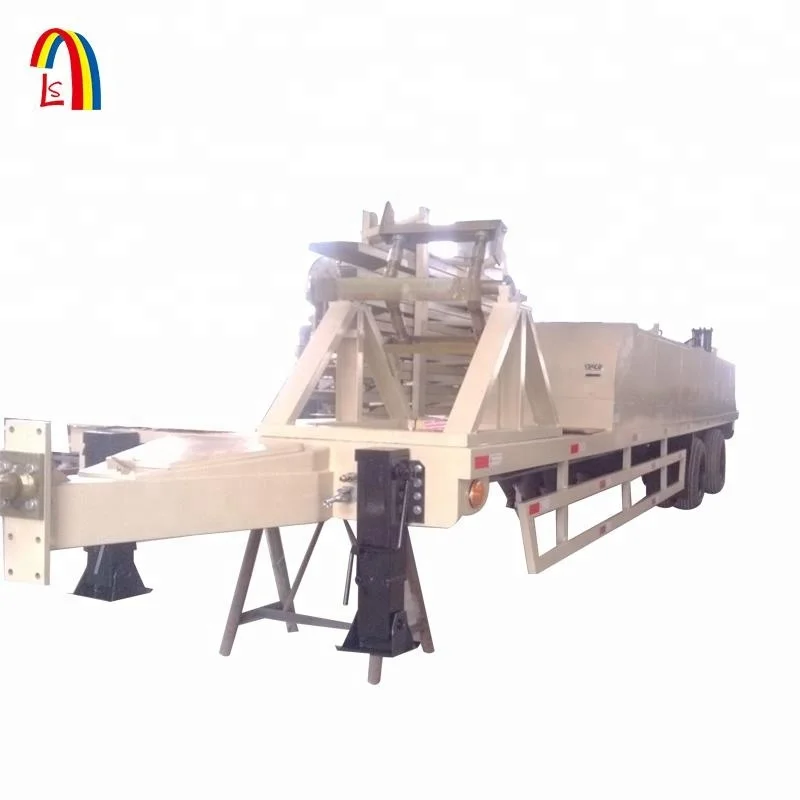

Our trailer-mounted MBM Factories can be easily towed by and ordinary  vehicle to any remote part of the country and put into operation the moment it arrives at the site without any delay whatsoever.

NO STRUCTURAL COLUMNS, BEAMS OR TRUSSES REQUIRED
The arches are designed to be totally self-supporting and do not require any support structure such as is needed in standard steel frame buildings.

SAVINGS IN MANPOWER
Our crew of approximately 10 to 15 trained men can erect a 1000 square meter building in a single day. You can build your buildings in either steel or aluminum, prepainted in an unlimited range of colors. We also stock most of our coils and immediately ship with our unit to the site.

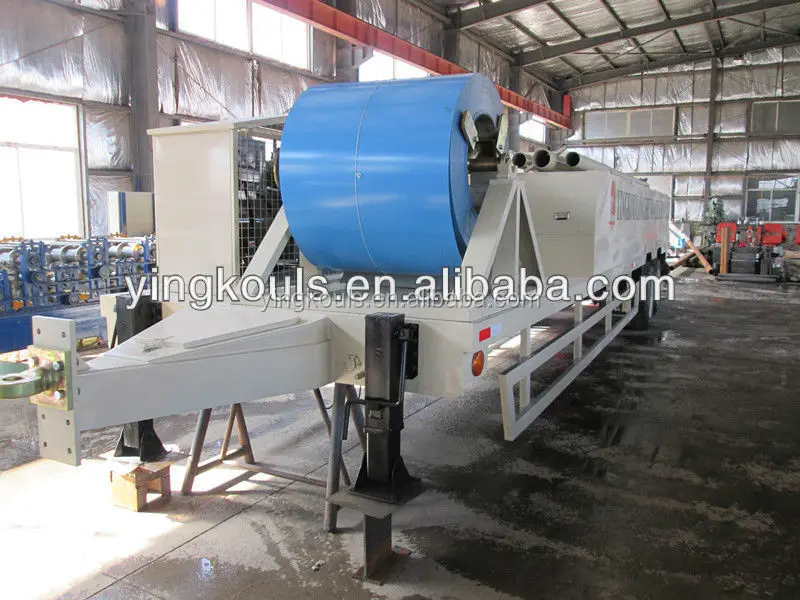

What is the detail specification about the arch roof machine?

Size: 9000mm × 2230mm × 2350mm
Total Weight: about 12000KG

Main Motor Power: 18.5KW

Forming power is 7.5kw ; bending power is 4.0kw;

cutting power is 4.0kw; conical power is 3.0kw

Working Speed:  Straight sheet: 15m/min
                           Arch sheet: 13m/min
                           Sewing: 6m/min

Material of rollers: 45# steel
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel
Step of rollers: 13 steps
Feeding Width: 1000 mm
Effective Width: 800 mm
Operating factor of the panel: 80 %
Proper span: ≤14m

We provide you all the relevant accessories for free, with which you can begin to do projects immediately.

Which kinds of buildings can be produced by this machine?

What are other models do you have?
