Загуститель для горнодобычи
Высокоэффективный загуститель концентрационный резервуар для

Высокоэффективный загуститель концентрационный резервуар для

Категория: Загуститель для горнодобычи >>>
Поставщик: Shandong,Xinhai,Mining,Technology,&,Equipment,Inc.

Цена:5 000,00 $ - 15 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	5950.12 $*	6248.28 $*
Aug-16-2025	5900.55 $*	6195.28 $*
Jul-16-2025	4950.62 $*	5198.96 $*
Jun-16-2025	5800.63 $*	6090.83 $*
May-16-2025	5050.86 $*	5303.28 $*
Apr-16-2025	5700.40 $*	5985.70 $*
Mar-16-2025	5650.40 $*	5933.32 $*
Feb-16-2025	5600.65 $*	5880.85 $*
Jan-16-2025	5550.3 $*	5828.67 $*

Характеристики

High Efficiency Thickener , Concentration Tank for Mineral Processing

Product Feature

Thickener — Product Feature
1.Deaeration cell is provided to prevent solid particles from attaching to bubbles so that solid particles can fall like a parachute.

2.The mineral-feeding pipe is lower than the pulp surface; it prevents the air to be brought in while feeding

3.The feeding sleeve is moved to a lower position and receiving plate is equipped. Therefore, the fed slurry fall evenly and steadily, preventing rolling phenomena because of the residual pressure from feeding

4.Inner overflow weir is equipped to make the pulp flow on pre-designed route, avoiding short circuit, enlarging the sedimental area

5.Inner overflow weir is made into indented shape, eliminating part suction phenomena induced by unleveled overflow weir.6.The peg linear is changed from oblique lines to curves. So the discharging underflow has higher density, and treatment capacity is enhanced.

-4 (2).jpg

Application

Thickener — Product Application

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.

Work Principle

Thickener — Product Principle

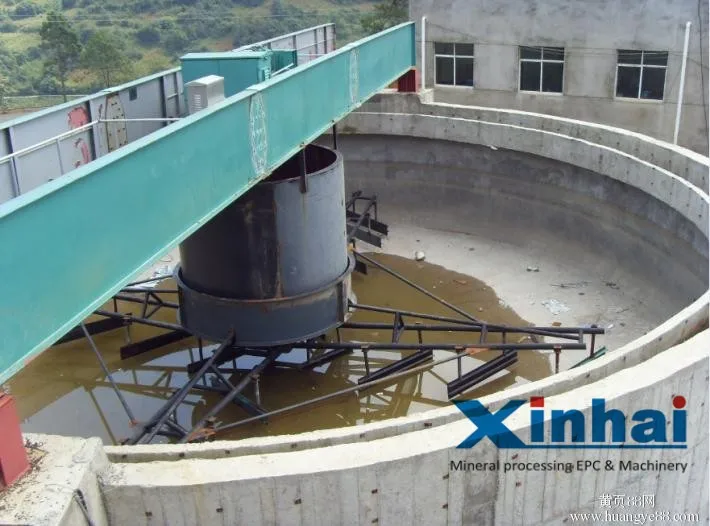

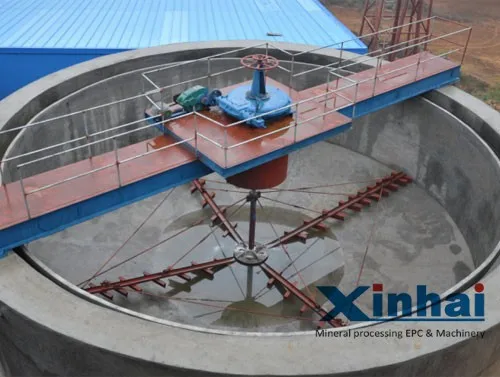

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

.jpg

Technical Parameters

Thickener — Technical Parameter

Model	D of the tank (mm)	Depth of the tank (mm)	Sedimental area (m2)	capacity (t/d)	Motor model	Motor power (kw)
NZSG-2.5	2500	1850	4.9	5-10.8	Y90L-6	1.1
NZSG-3A	3000	1800	7	5-23.3	Y100L-6	1.5
NZSG-3	3600	1800	10.2	5-28.5	Y100L-6
NZSG-5	5000	2956	16	16-90	Y90L-4
NZSG-6	6000	2956	28.3	98	Y90L-4
NZSG-7	7000	3000	38.5	140	Y112M-6	2.2
NZSG-8	8000	3318	50.2	185	Y132S-6	3
NZSG-9	9000	3376	63	210
NZSG-12	12000	3600	113	370
NZSG-15	15000	4000	176	580	Y132(M2)-6	5.5
NZSG-18	18000	4400	255	960	YCT200-413	7.5
NZSG-20	20000	4400	315	1400	Y160(M2)-8	7.5
