Огнезащитный Прозрачный Термоусадочные трубки алюминиевые композитные

Огнезащитный Прозрачный Термоусадочные трубки алюминиевые композитные

Категория: Plastic Tubes >>>
Поставщик: Guangzhou,Kehong,Electric,Co.,Ltd.

Цена:10,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	12.32 $*	13.55 $*
Aug-19-2025	12.76 $*	13.16 $*
Jul-19-2025	10.47 $*	11.38 $*
Jun-19-2025	12.29 $*	13.62 $*
May-19-2025	10.23 $*	11.52 $*
Apr-19-2025	11.56 $*	12.38 $*
Mar-19-2025	11.63 $*	12.93 $*
Feb-19-2025	11.41 $*	12.88 $*
Jan-19-2025	11.76 $*	12.2 $*

Характеристики

Flame retardant Clear heat shrinkable tube equal to KYNAR/RW-175/K/CKN-175/DERAY KY175/FIT350/GSHS-1675

Model:Kynar-175

High-temperature, semi-rigid, PVDF tubing

1) Application

Kynar-175, is semi-rigid, excellent flame retardant, cut-through resistance, chemical and solvent resistance and high-temperature performance. It is especially suitable for applications requiring high-temperature performance. It is also used for insulation and strain relief of soldered joints, identification and inspection of covered components.

Self extinguishing Clear heat shrink sleeving equal to KYNAR/RW-175/K/CKN-175/DERAY KY175/FIT350/GSHS-1675

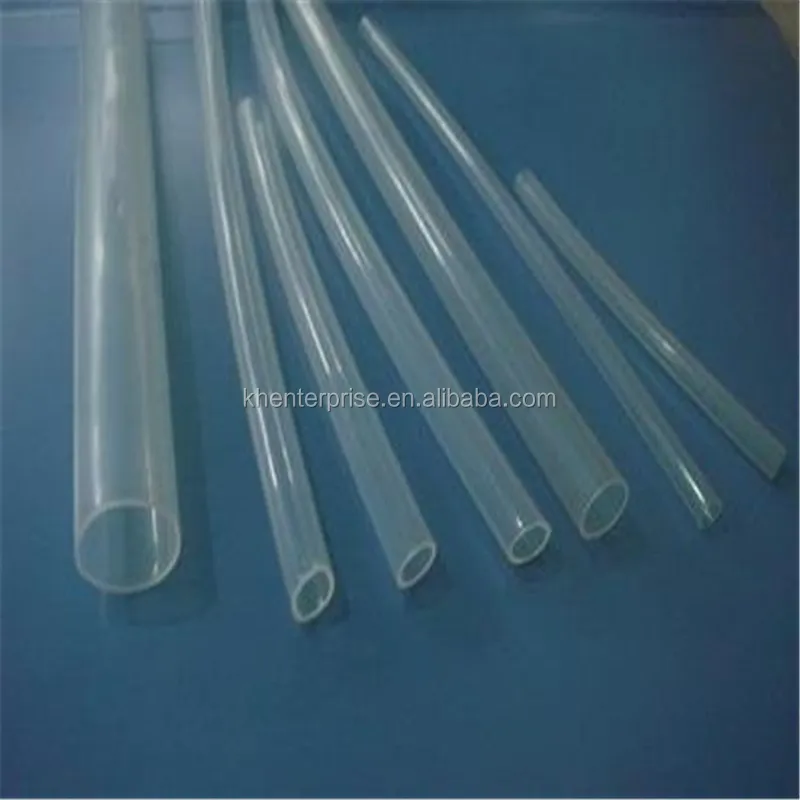

FEP shrink tube (7).jpg FEP shrink tube (11).jpg

Self extinguishing Clear heat shrink sleeving equal to KYNAR/RW-175/K/CKN-175/DERAY KY175/FIT350/GSHS-1675

2) Features/Benefits

Shrink ratio: 2:1.

Tough, semi-rigid, thin-wall insulation.

High flame-resistance; high-temperature performance.

Outstanding chemical and solvent resistance.

Conform to European RoHS(2002/95/EC)environmental directive.

3) Operating Temperature Range

Operating temperature range: -55℃~175℃

Minimum shrink temperature: 155℃

Minimum full recovery temperature: 175℃

4) Specifications/Standards

UL224,UL Approval, 150℃600V VW-1

AMS-DTL-23053/8

5) Specificationvalues

	Property	Requirement	Test method	Typical value
Physical:	Tensile strength	34.5MPa min.	ASTM D 638	≥35MPa
	Elongation	150% min.	ASTM D 638	≥200%
	Heat shock 300℃, 4hrs	No cracking, dripping or flowing	ASTM D 2671	Pass
	Low temperature flexibility -55℃, 4hrs	No cracking	ASTM D 2671	Pass
	Aging 250℃,168hrs
	Elongation after aging	50%	ASTM D 638	≥50%
Electrical:	Dielectric voltage withstand	2500V,60sec, no breakdown	ASTM D 2671	Pass
Electrical:	Volume resistivity	10¹³Ω·cm min.	ASTM D 876	≥10¹³Ω·cm
Chemical:	Corrosion	No corrosion	ASTM D 2671	Pass
	Flammability	VW-1	UL224	Pass

Self extinguishing Clear heat shrink sleeving equal to KYNAR/RW-175/K/CKN-175/DERAY KY175/FIT350/GSHS-1675

6)Product mm/inch

Size	Inside diameter		Wall thickness	Standard length
Size	As supplied (min.)	After recovery (max.)	After recovery	Standard length
3/64	1.2(0.046)	0.6(0.023)	0.25±0.05(0.010±0.002)	1.2
1/16	1.6(0.063)	0.8(0.031)	0.25±0.05(0.010±0.002)	1.2
3/32	2.4(0.093)	1.2(0.046)	0.25±0.05(0.010±0.002)	1.2
1/8	3.2(0.125)	1.6(0.063)	0.25±0.05(0.010±0.002)	1.2
3/16	4.8(0.187)	2.4(0.093)	0.25±0.05(0.010±0.002)	1.2
1/4	6.4(0.250)	3.2(0.125)	0.30±0.08(0.012±0.003)	1.2
3/8	9.5(0.375)	4.8(0.187)	0.30±0.08(0.012±0.003)	1.2
1/2	12.7(0.500)	6.4(0.250)	0.30±0.08(0.012±0.003)	1.2
3/4	19.1(0.750)	9.5(0.375)	0.43±0.08(0.017±0.003)	1.2
1	25.4(1.000)	12.7(0.500)	0.48±0.08(0.019±0.003)	1.2
1 1/2	38.1(1.500)	19.1(0.750)	0.51±0.08(0.020±0.003)	1.2
2	50.8(2.000)	25.4(1.000)	0.58±0.08(0.023±0.003)	1.2
