Новый 100 ~ 120lm/w высокая светоотдача 3 года Гарантия 4ft/5ft/6ft/8ft v Форма t8 18w 4ft интегрировали светодиодные

Описание и отзывы

Трекер стоимости

Характеристики





What is the SPECIFICATIONS of SMD 25W 1200mm 4ft T8 Tube Led Light?

Brand:	CXWON
Product Name:	Indoor V shaped T8 Tube Brightest integrative 4ft V shaped Tube
Power Consumption:	25w
Input Voltage:	AC85-265
Product Size:	26*1200mm
Light Efficacy:	100 lm/W
Light Source:	Taiwan Epistar SMD2835 0.2W/PCS
Driver:	high quality Isolated driver
Luminous Flux:	2000-2250lm
Beam Angle:	270 Degree
Lamp Base:	G13
Main Material:	Alminum and Plastic
Light Color:	Warm white/Natural White/Cool White
Color Temperature:	2700-9000K(Optional)
CRI:	Ra≥80
Lifespan:	50.000H





600MM   18W

Material:/Aluminium Body+Milky PC Cover	SMD:2835    Luminous:1680±100Lm
Light transmittance :≥80%	Lifespan:≥50000H
Input Voltage:AC85V~265V	Efficiency:≥88%
Working frequency:50/60Hz	Rendering Index:70Ra
Power Factor:0.95±0.02	CCT:2700-2800K,6000-6500K
Operating temperature:-20°C~45°C	SIZE:588mm (L)×D26mm



900MM   25W

Material:Aluminium Body+Milky	SMD:2835
Light transmittance :≥80%	Lifespan:≥50000H
Input Voltage:AC85V~265V	Efficiency:≥88%
Rated Power:25W	Beam Angle:270°
Actual Power:25W	Luminous:2200±100Lm
Working frequency:50/60Hz	Rendering Index:70Ra
Power Factor:0.95±0.02	CCT:2700-2800K,6000-6500K
Operating temperature:-20°C~45°C	Size:898mm (L)×D26mm
	Warranty time:5 Year



1200MM   36W

Material:Aluminium Body+Milky	SMD:2835
Light transmittance :≥80%	Lifespan:≥50000H
Input Voltage:AC85V~265V	Efficiency:≥88%
Rated Power:36W	Beam Angle:270°
Actual Power:38W	Luminous:2880±100Lm
Working frequency:50/60Hz	Rendering Index:70Ra
Power Factor:0.95±0.02	CCT:2700-2800K,6000-6500K
Operating temperature:-20°C~45°C	Size:1196mm (L)×D26mm
	Warranty time:5 Year





1500MM   48W

Material:Aluminium Body+Milky	SMD:2835
Light transmittance :≥80%	Lifespan:≥50000H
Input Voltage:AC85V~265V	Efficiency:≥88%
Rated Power:48W	Beam Angle:270°
Actual Power:49W	Luminous:3880±100Lm
Working frequency:50/60Hz	Rendering Index:70Ra
Power Factor:0.95±0.02	CCT:2700-2800K,6000-6500K
Operating temperature:-20°C~45°C	Size:1496mm (L)×D26mm
	Warranty time:5 Year

  2400MM   65W

Material:Aluminium Body+Milky	SMD:2835
Light transmittance :≥80%	Lifespan:≥50000H
Input Voltage:AC85V~265V	Efficiency:≥88%
Rated Power:65W	Beam Angle:270°
Actual Power:66W	Luminous:5200±100Lm
Working frequency:50/60Hz	Rendering Index:70Ra
Power Factor:0.95±0.02	CCT:2700-2800K,6000-6500K
Operating temperature:-20°C~45°C	Size:2496mm (L)×D26mm
	Warranty time:5 Year





 T8 Tube 1200mm 25W FEATURES:



(1)	V shaped led t8 Integrated tube, more bightness and wide beam angle.

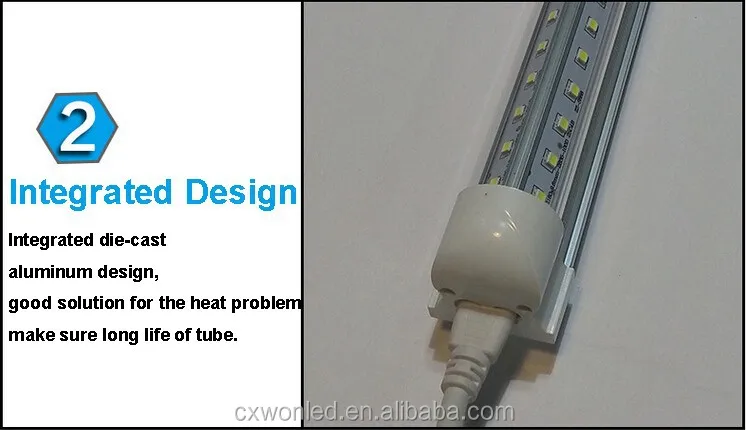

(2)	Thickness t8 tube aluminum shell and plastic cover, it is strong to delivery not easy to bend.
(3)	Save power more than 90% compare with fluorescent tubes .
(4)	Long time working lifespan, we turn down the electric current to make long working, produce low heat, no light decay.
(5)	High PF for power supply, constant electric current driver, Input AC85-265V.

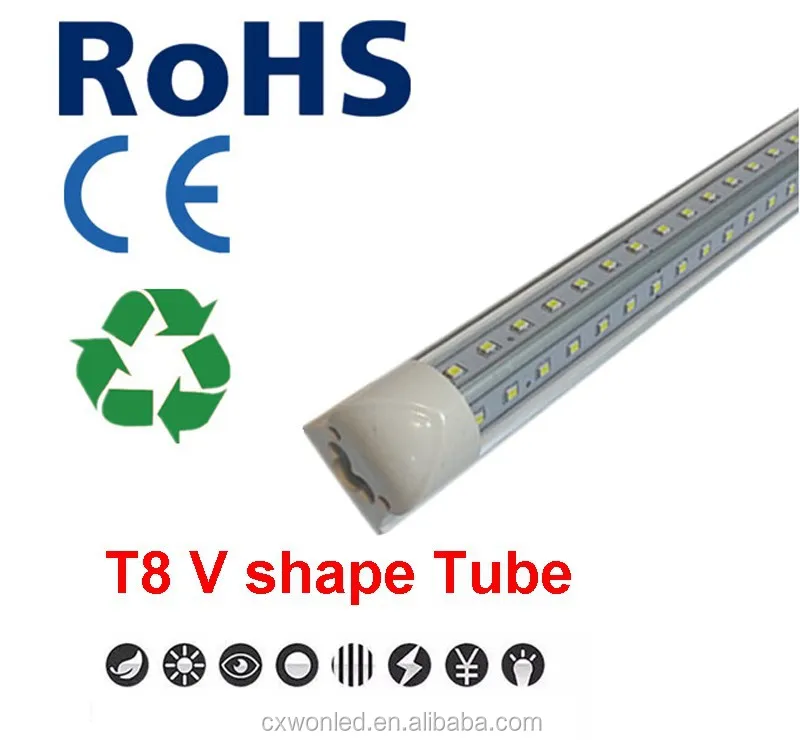

(6)	No mercury or other hazardous materials, accord with RoHs.
(7)	Working environment -20°C~50°C, suitable for unusual climate.
(8)	Low maintenance cost.
(9)	These lamps can instead of 40W fluorescent tubes

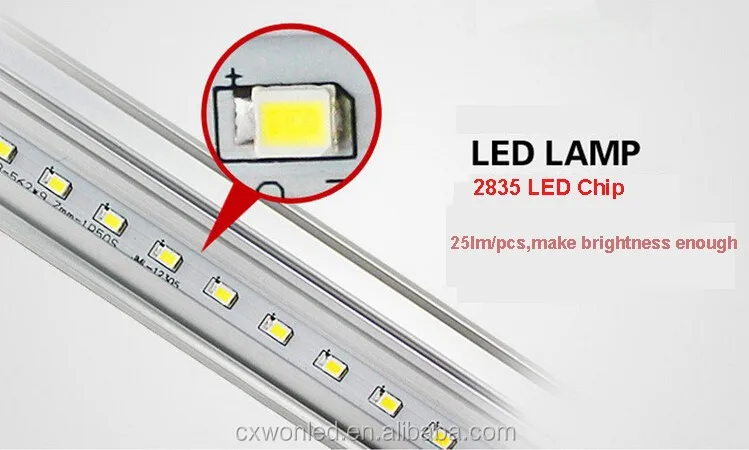

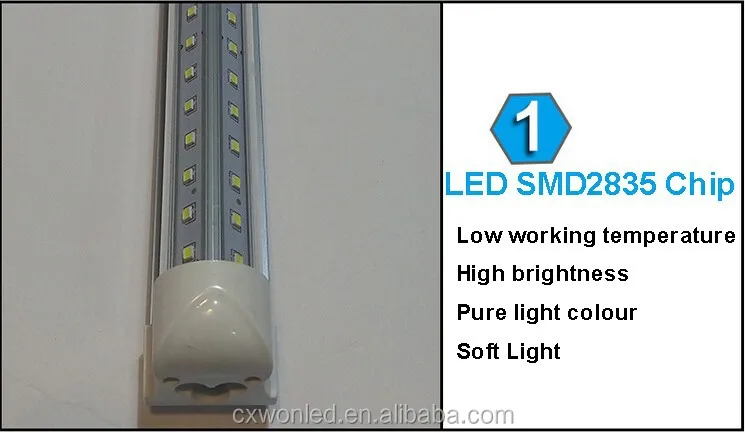

(10)	High lumen SMD2835 Sanan chip, 25lm/pcs.  Pure colour, High CRI.

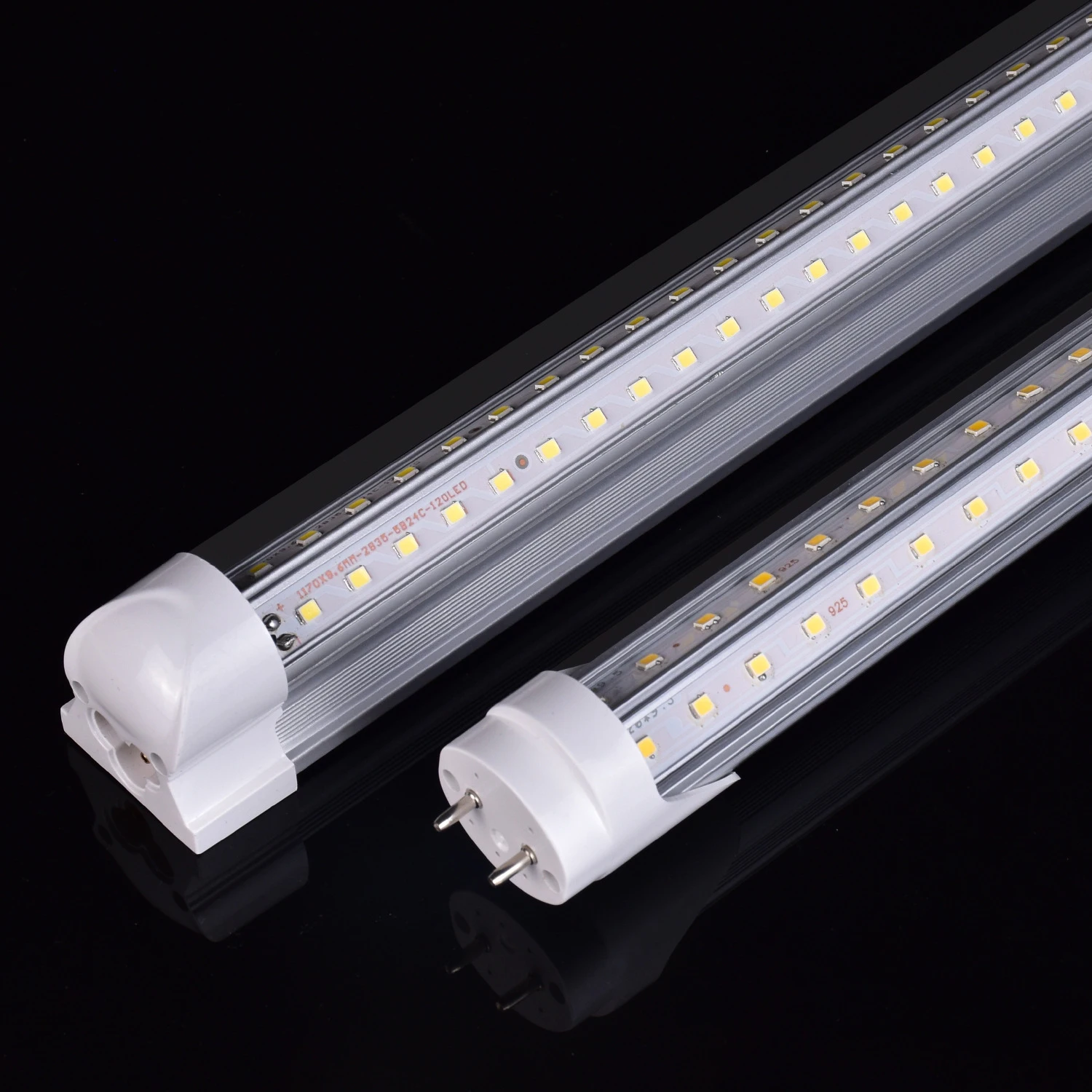

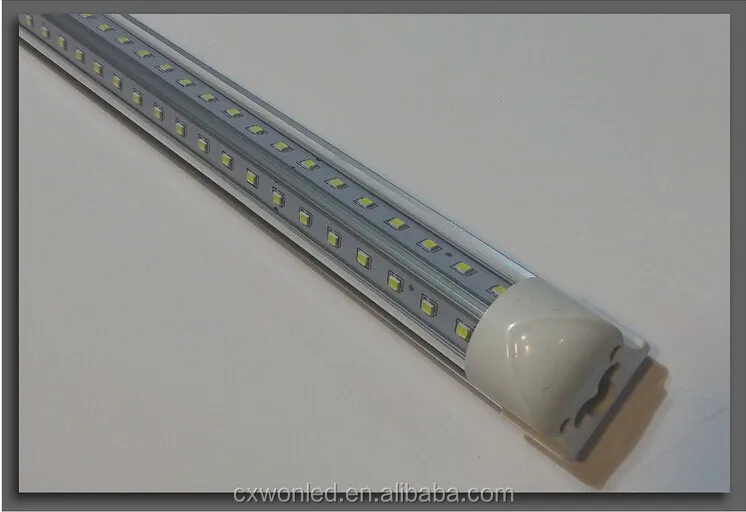

PICTURE SHOW:





            Package for Batch: Paper Tube+Carton

                           Each LED Tube Can be Put in One Paper Tube and 25 Paper Tubes to One Carton



 PACKING DETAILS:

  600mm 18W    25pcs/ctn , packing size:  65x20.5x20 cm

  900mm 15w     25pcs/ctn ,packing size:   95x20.5x20 cm

  1200mm 36w    25pcs/ctn,packing size:    125x20.5x20 cm

  1500mm 48W    25pcs/ctn,packing size:    155x20.5x20 cm

   2400MM 65W    25pcs/ctn,packing size:    255x20.5x20 cm



SHIPPING:



We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.





 LED V SHAPED T8 TUBE 1200MM 25W TRADE TERMS:

1, Payment: T/T, 30% deposits, before the ship to pay the balance end. Western Union, PAYPAL or TT



2, Delivery time , Samples can be delivered in 3days. Normal order will be sent within one week.



4, Freight are quoted under your requests.



5, Shipping Port< Shenzhen, China(Mainland).



6, Discounts are offered depend on quantities



7, MOQ›25pieces.
