Веревочный кабель измеритель напряжения для
- Категория: Испытательное оборудование >>>
- Поставщик: Wenzhou,Tripod,Instrument,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.3 $* | 0.79 $* |
| Aug-18-2025 | 0.3 $* | 0.1 $* |
| Jul-18-2025 | 0.2 $* | 0.59 $* |
| Jun-18-2025 | 0.42 $* | 0.61 $* |
| May-18-2025 | 0.9 $* | 0.16 $* |
| Apr-18-2025 | 0.22 $* | 0.5 $* |
| Mar-18-2025 | 0.25 $* | 0.88 $* |
| Feb-18-2025 | 0.16 $* | 0.55 $* |
| Jan-18-2025 | 0.70 $* | 0.68 $* |
Характеристики

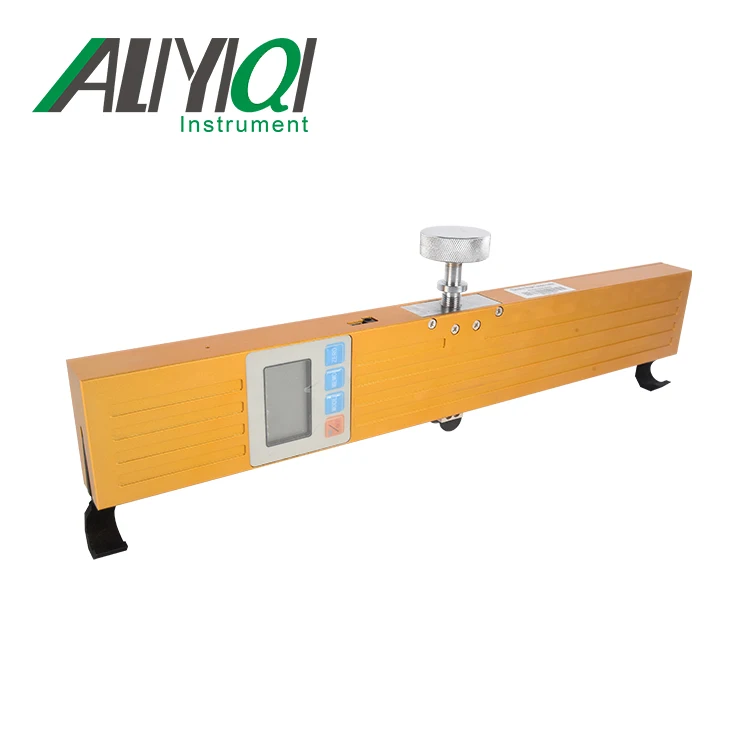

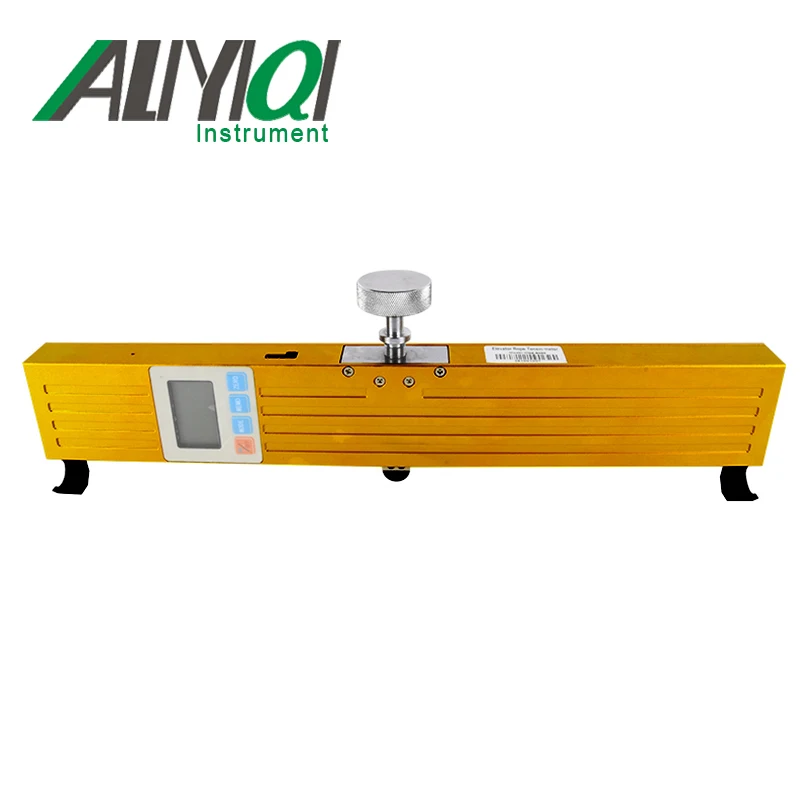

Rope Cable Tension Meter Tool for Lift
Description
The Elevator rope tensiometer is main used in the elevator traction wire rope tension test.
In elevator installation, acceptance and inspection process, through the test and
adjustment of each tractive ropes, make each rope tension as consistent as possible. So
can prolong the service life of tractive sheave and make the elevator wire rope run more
smoothly.
The tensiometer can also be used in bridge sling, tower connection line, overhead
conductors, index wire rope and all involving the wire tension tests.
Parameter
Model | DGZ-Y-3000 | DGZ-Y-5000 | ||||
Number | 1 | 2 | 3 | 1 | 2 | 3 |
Diameter | φ6 | φ8 | φ10 | φ11 | φ13 | φ16 |
Range | 3000N | 5000N | ||||
Min. Load Division Value | 1N | |||||
Scientific measuring range | 10%~90% | |||||
Accuracy | ±5% | |||||
Power | 7.2V 1.2V×6 NI-H Battery | |||||
Charger | ||||||
Weight (Kg) | 1.4 kg | |||||
