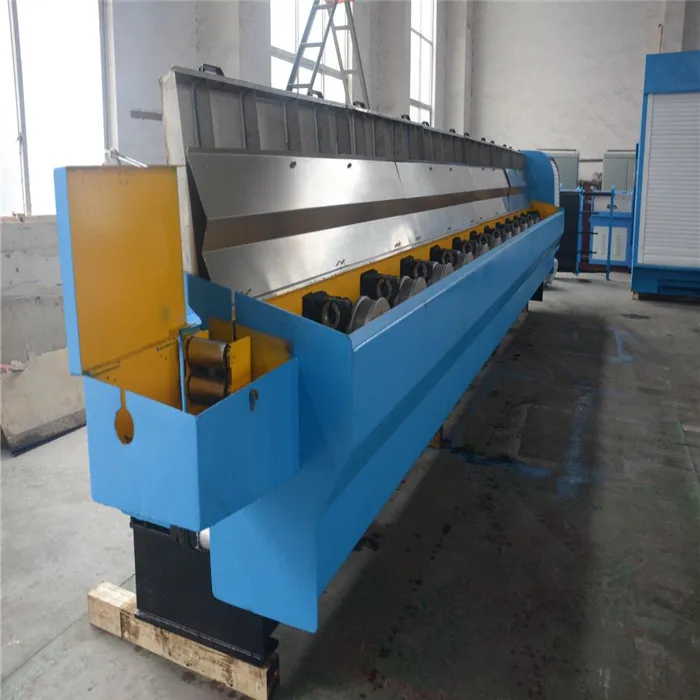

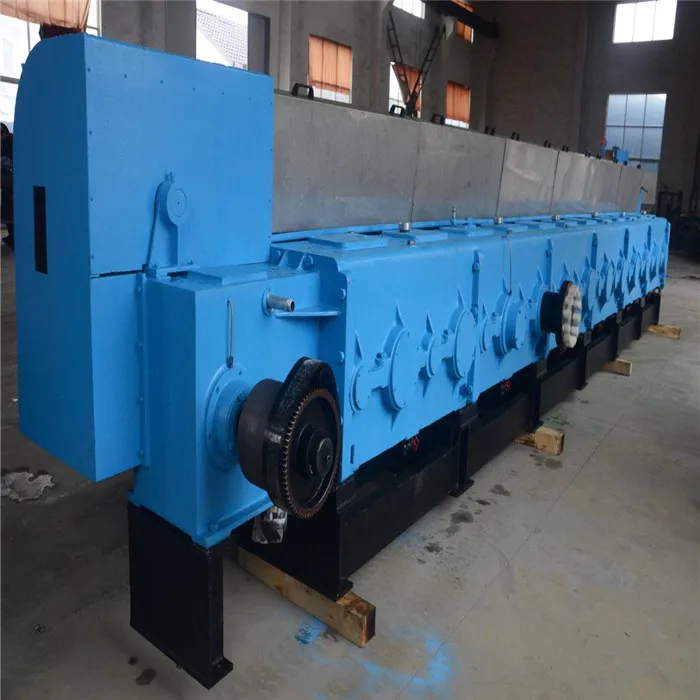

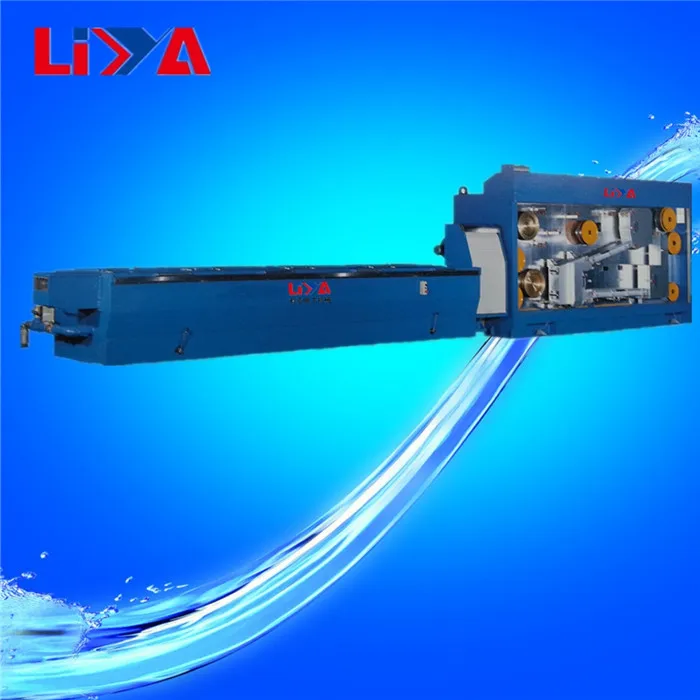

  8mm Automatic Large Wire Drawing Thinning Machine

Usage for LY-9D/13D Large Wire Thinning Machine:

The high speed fine wire drawing machine is used for drawing wire from diameter 8.00mm to 1.20-3.20mm.



Technical Parameter for LY-9D/13D Large Wire Drawing Machine:

Model	13D	9D
Inlet Diameter(mm)	Ø8.00	Ø8.00
Outlet Diameter (mm)	Ø1.20-Ø3.20	Ø2.20-Ø3.20
Max. Drawing Speed (m/min)	1200	600
Max. Drawing Dies No.	13	9
Slip Ratio of m/c	23.60%	23.60%
Fix Speed Capstan Slip Ratio	20%	20%
Capstan	Tungsten
Max. Capstan Dia. (mm)	Ø450
Fix Speed Capstan Dia. (mm)	Ø450
Frame	Weld, Two Conjunctions
Main Motor	250KW, DC Motor	160KW, DC Motor
Spooler Motor	15KW Three Phase Inductor Motor
Revise System	PID Synchronous Spooler
Inverter Control	DC Speed Regular Control
Transmission	Gear
Send-Out Method	Over Head
Traversing Unit	Decelerate Motor
Tension Control	Pneumatic Balance by Swing Arm
Lubrication	Immersion
Suitable Dia. of Spool (mm)	Ø800 Pay-Off Frame in Coils
Capacity for Wire Receiving (KG)	1200-1800
Power Source	380V
Brake	Pneumatic



After-Sale Service for 9D/13D Large Wire Drawing Machine:

1. In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.

2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
