Наперники для троса из углеродистой

Категория: Наперсток >>>
Поставщик: Qingdao,Q-Ran,Import,&,Export,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.10 $*	0.12 $*
Aug-16-2025	0.22 $*	0.86 $*
Jul-16-2025	0.26 $*	0.8 $*
Jun-16-2025	0.40 $*	0.3 $*
May-16-2025	0.63 $*	0.46 $*
Apr-16-2025	0.44 $*	0.13 $*
Mar-16-2025	0.25 $*	0.28 $*
Feb-16-2025	0.75 $*	0.68 $*
Jan-16-2025	0.21 $*	0.16 $*

Характеристики

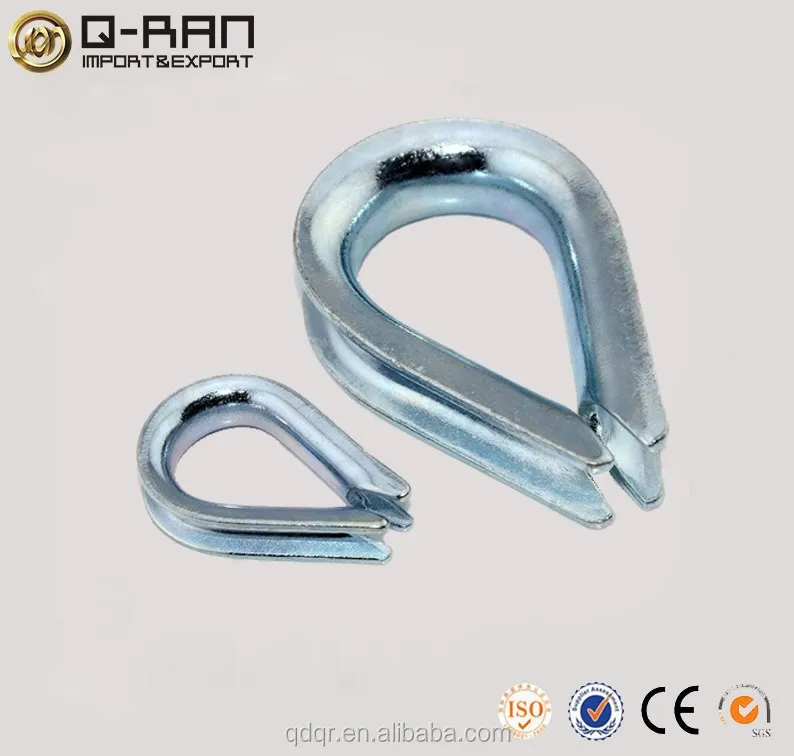

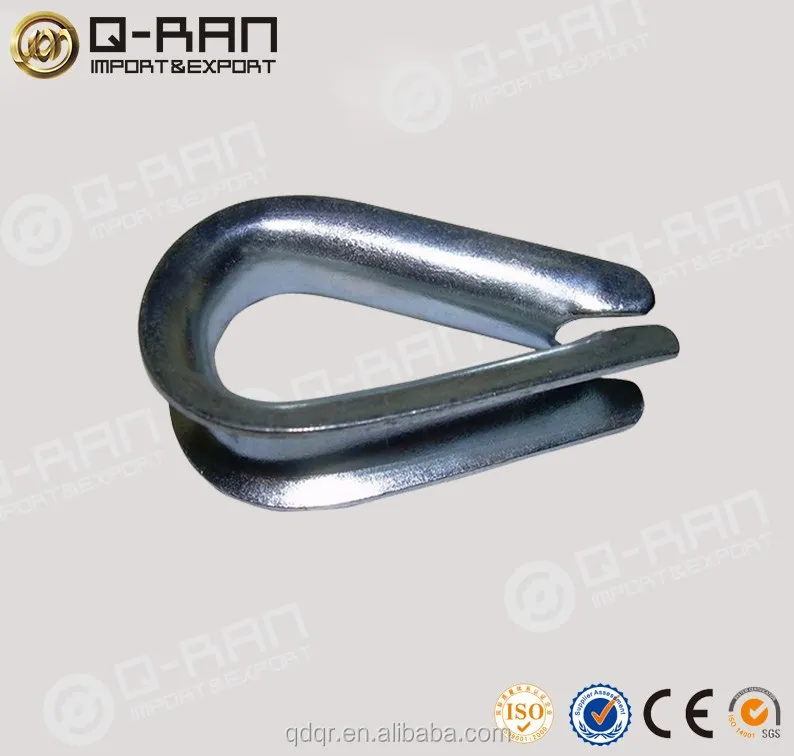

Wire Rope Thimble

Product Description

PRODUCT DETAILS
Product name	Wire Rope Thimble
Place of origin	Shandong,China.
Brand	Q-RAN
Material	Carton steel
Size	From 1/4 to 2-1/4 inch
Surface	Electro Galivanized;Hot Dip Galivanized
Standard	G414 thimble
Grade	None
Stock	There are emergency stocks for regular sizes.
Sample	The sample is free,the freight should on your account before your first order.
Packing method	packed in cartons ,then on pallets .
Payment term	30% advanced by T/T,the balance should be paid after see the copy of the B/L;L/C at sight;Western Union.
Delivery time	Usually within 15-30days according to your required size&quantity.
Using range	1. Wire rope,fastener,industry,hoist,heavy duty lifting equipment

Dimension

Rope Sise(IN)	Dimension (inch)								Weight 100pcs(Lbs)
Rope Sise(IN)	A	B	C	D	E	F	G	H	Weight 100pcs(Lbs)
1/4	2.19	1.63	1.50	0.88	0.41	0.28	0.06	0.23	6.75
5/16	2.50	1.88	1.81	1.06	0.50	0.34	0.08	0.28	11.25
3/8	2.88	2.13	2.13	1.13	0.63	0.41	0.11	0.34	25.00
7/16	3.25	2.38	2.38	1.25	0.72	0.47	0.13	0.38	30.00
1/2	3.63	2.75	2.75	1.50	0.81	0.53	0.14	0.41	51.00
9/16	3.63	2.75	2.69	1.50	0.88	0.59	0.14	0.41	51.00
5/8	4.25	3.25	3.13	1.75	0.97	0.66	0.16	0.50	75.00
3/4	5.00	3.75	3.81	2.00	1.22	0.78	0.22	0.66	147.00
7/8	5.50	4.25	4.25	2.25	1.38	0.94	0.22	0.75	175.00
1	6.13	4.50	4.94	2.50	1.56	1.06	0.25	0.88	275.00
1-1/8--1-1/4	7.00	5.13	5.88	2.88	1.81	1.31	0.25	1.13	400.00
1-1/4--1-3/8	9.00	6.25	6.81	3.50	2.19	1.44	0.38	1.13	817.00
1-3/8--11/2	9.06	6.50	7.13	3.50	2.56	1.56	0.50	1.13	1175.00
1-5/8	11.25	8.00	8.13	4.00	2.72	1.72	0.50	1.38	1700.00
1-3/4	12.19	9.00	8.50	4.50	2.84	1.84	0.50	1.31	1775.00
1-7/8--2	15.13	12.00	10.38	6.00	3.09	2.09	0.50	1.50	2775.00
2-1/4	17.13	14.00	11.38	7.00	3.63	2.38	0.63	1.63	3950.00

Packaging & Shipping

Packaging and Shipping

Packing:

Safety Carton and pallet,sack and pallet,according to customers requirement.

Shipping:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

Delivery time:

3-7 days for samples; within 30 days for batch goods.

Product Uses

Wire rope thimble is widely used in machinery, metallurgy, electric power, railway, water conservancy, port, mining, construction, port, paper making, chemical industry, etc.

Our Main Products

Qingdao Q-RAN import & export co., ltd is major in producing and sale rigging hardware,such as shackle,eyebolt,eye nut,wire rope clip,turnbuckle and so on.
