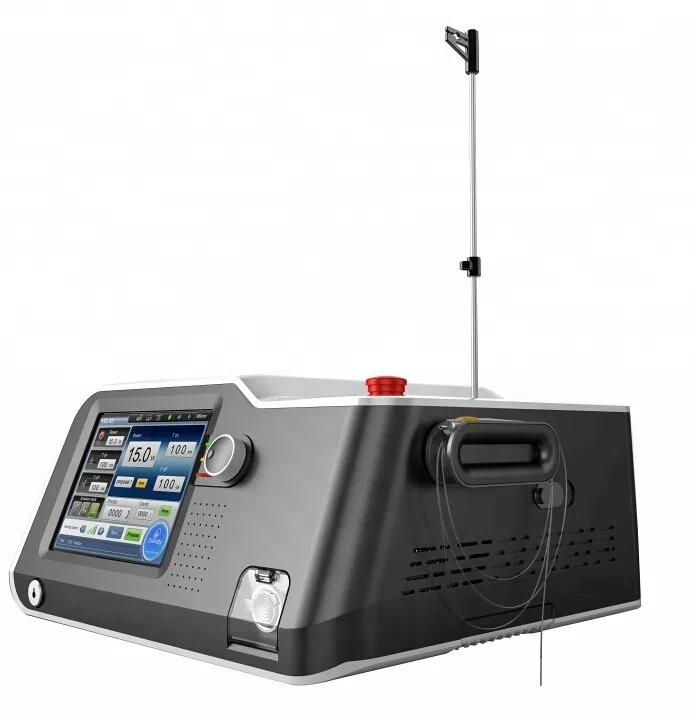

VELAS15D 1470nm surgical diode laser system





1. Indroduction
GIGAALASER is very proud to introduce the new generation of
Our diode laser system VELAS15D 1470nm surgical diode laser
System.
Why choose the VELAS15D?

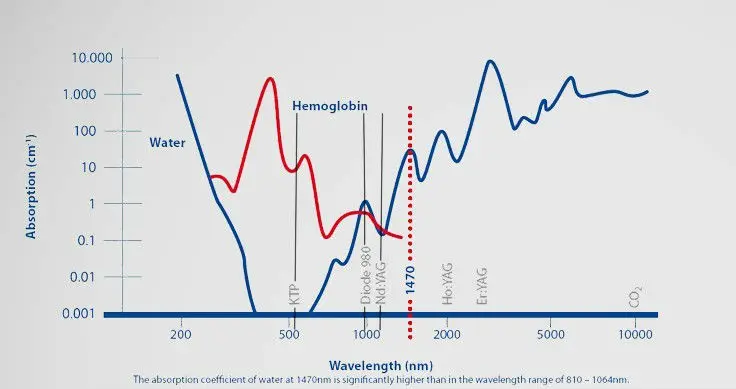

The 1470nm wavelength corresponds to a Peak of water absorbion.
Due to the intracellular water of the vein wall and the water contend of blood, the 1470nm laser is ideal for venous diseases. VELAS15D offers you the optimum treatment solution in EVLT application.
With our EVLT accessories kit, VELAS15D could offer you the optimum treatment solution in the superficial reflux of the great saphenous veins, reticular veins, spider veins and vascular lesions. The VELAS15D minimize any post-operative pain and bruising, due to a 40 times or greater absorption coefficient in water compared to 810nm or 980nm lasers targeting hemoglobin. The patients will recovery quickly from the treatment to daily work.
With other kind of accessories, the VELAS15D could offer the ideal application in ENT, PLDD, Proctology, Gynaecology, Transcutaneous treatment, Dermatology and General surgery. Our laser systems have approved CE mark and ISO13485, so we can provide the best product with our best service for every customer.

2. Technical Specifications
Laser type GaAlAs diode laser
Model VELAS15D
Wavelength 1470nm
Maximum power 15W
Operation mode CW, pulsed
Pulse duration 50ms-2s
Repetition rate 0.5Hz-10kHz
Transmission system Fibers of 400um, 600um with SMA905 connector
Pilot Beam Red Diode laser of 635nm, power<5mW
Control mode True color Touch screen
Voltage/Current Rating 110/220 VAC, 2A, 50/60 Hz
Dimensions 400(W)*385(L)*200(H) mm
Weight 9.5Kg

3. Endovenous Laser Treatment
The new clinical technique of minimally invasive varicose vein treatment now is getting more popular in the world. Velas30 diode laser system provides the fully solution during the process. This treatment have 98% success rates with excellent long-term results, which has been proven to be a safe and effective alternative to painful surgery, and is rapidly becoming the gold standard in varicose vein treatment.
With excellent hemostatic and ablative capabilities, the flexile optic fiber insert into the vein through catheter, and emit accurate laser energy to coagulate and seal the vein shut.

4. Advantage:
Treatment in less than an hour
Performed by a doctor in the doctor's office
Minimal post-operative pain
Quick recovery
Excellent long-term results
No scars

5. Dermatology

Vascular lesions:
Spider vein
Leg vein
Hemangioma
Port wine stains

Pigmented lesions:
Age spots
Naevi
Xanthelasmas

6. Main Clinical Application
Other Applications
ENT
Percutaneous Laser Disc Decompression(PLDD)
Proctology
Transcutaneous treatments
Gynaecology
General surgery
