YD-355AT с Германия компоненты парафина патологий оборудование полностью автоматически

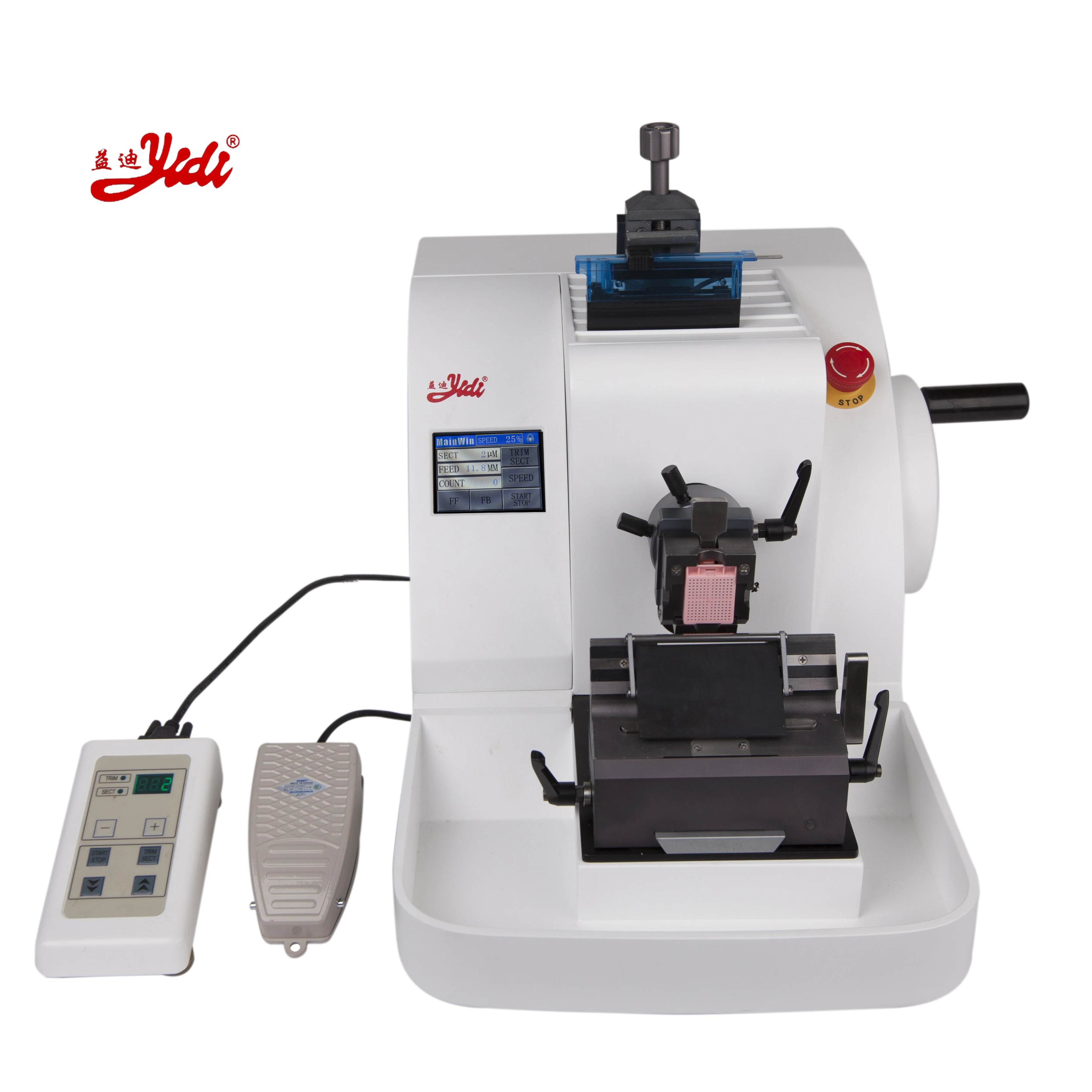

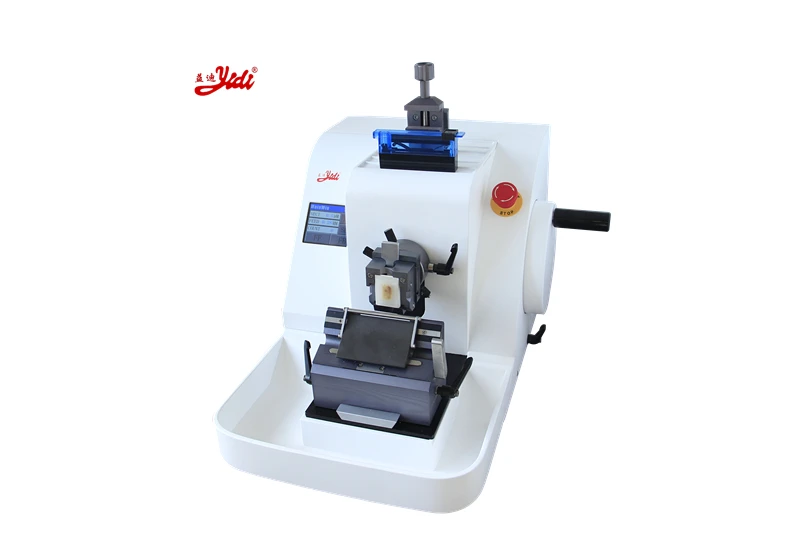

                                                                        YD-355AT Fully Automatic Microtome

Section thickness range

0.5- 100μm

Section Setting values

From 0.5-2μm in 0.5μm –increments
Form 2-10μm in 1μm -increments
Form 10-20μm in 2μm -increments
Form 20-50μm in 5μm -increments
Form 50-100μm in 10μm increments

Trimming section thickness range

5-500μm(600 /999μm is optional )

 Cutting speed

0 – 300mm/s（0-400 or 500mm/s is optional ）

 Horizontal specimen stroke

28 mm

Vertical specimen stroke

60mm(70mm is optional)

Specimen retraction

12μm

Specimen feed speed

1250/s (click) , 2000μm/s(keep pressing)

Sample orientation

8°along the X-Y-axis, rotate 360°

Precision error

 ± 5%

 Maximum section size

 50 × 45mm (55x55 is optional )

Net weight

32KG

Dimensions incl. tray (L/T/H)：

500mm（L）X320mm（W）X300mm（H）
