Промышленный резиновый v-образный ремень SPB SPC SPZ Bando SPC2450

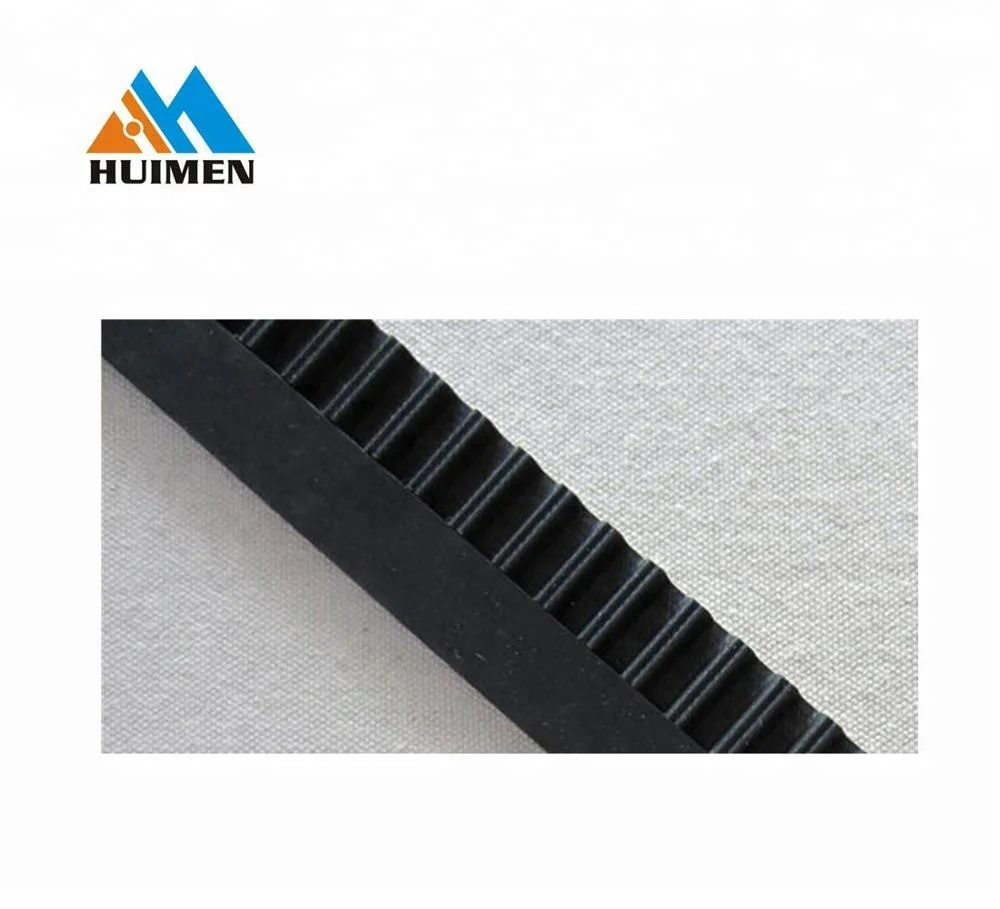

Timing Belts Structure

No.

Name

Function

Material

1

Top Rubber

Protect the linling tensile member

CR HNBR

2

Tensile Member

Glass fiber with high tensile strength and elsticity

Glass Filber

3

Teeth Rubber

Protect the tensile member and maintain the shape of the rubber

CR HNBR

4

Teeth Fabric

excellent frictional resistance and low skin-friction coefficient

Elastic Fabric

Feature

• lt may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear.


• Glass fiber as tensile member.no elongation of rubber belt.


• Excellent heat-resistance,oil-proof,and wearing resistance


• Higher transmission efficiency can be guaranteed under the condittion of large change of peration speed and temperature.


• lts performance can be exerted stably and safely during the process of high-speed rotation.

Section Size Synchronous Belt for Automobile (Only Partial products)

Type

Pitch(mm)

Tooht Height(mm)

Belt height (mm)

ZA

9.525

1.91

4.10

ZB

9.525

2.92

4.50

ZH

9.525

3.50

5.50

YH

8.00

3.04

5.20

ZR

9.525

3.20

5.70

YS

8.00

2.00

5.10

ZS

9.525

3.53

5.70

YA

8.00

2.95

5.20

ZAS

9.525

2.32

4.62

ZBS

9.525

2.76

5.06

S8M(YU)

8.00

3.05

5.30

FS

9.525

3.05

5.35

MY

8.00

3.06

5.20

MR

9.525

3.54

5.69

RU

9.525

3.41

5.40

ZLB

9.525

2.70

5.05
