rubber crusher waste tire recycling machine rubber powder production line

Note: We can design the different size of machine according to the requests for products.



 advantage:
1.Make waste tire break into powder;
2.28-30mesh rubber powder
3:no waste of the whole line





Factory direct sales,with high quality and competitive price

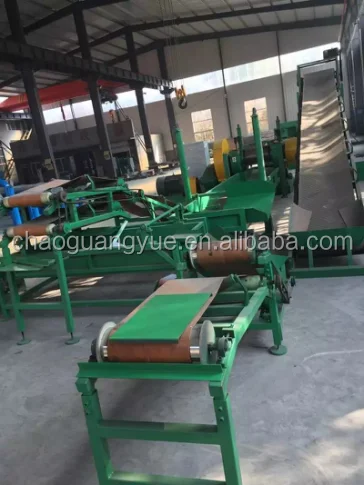

Process flow



waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)

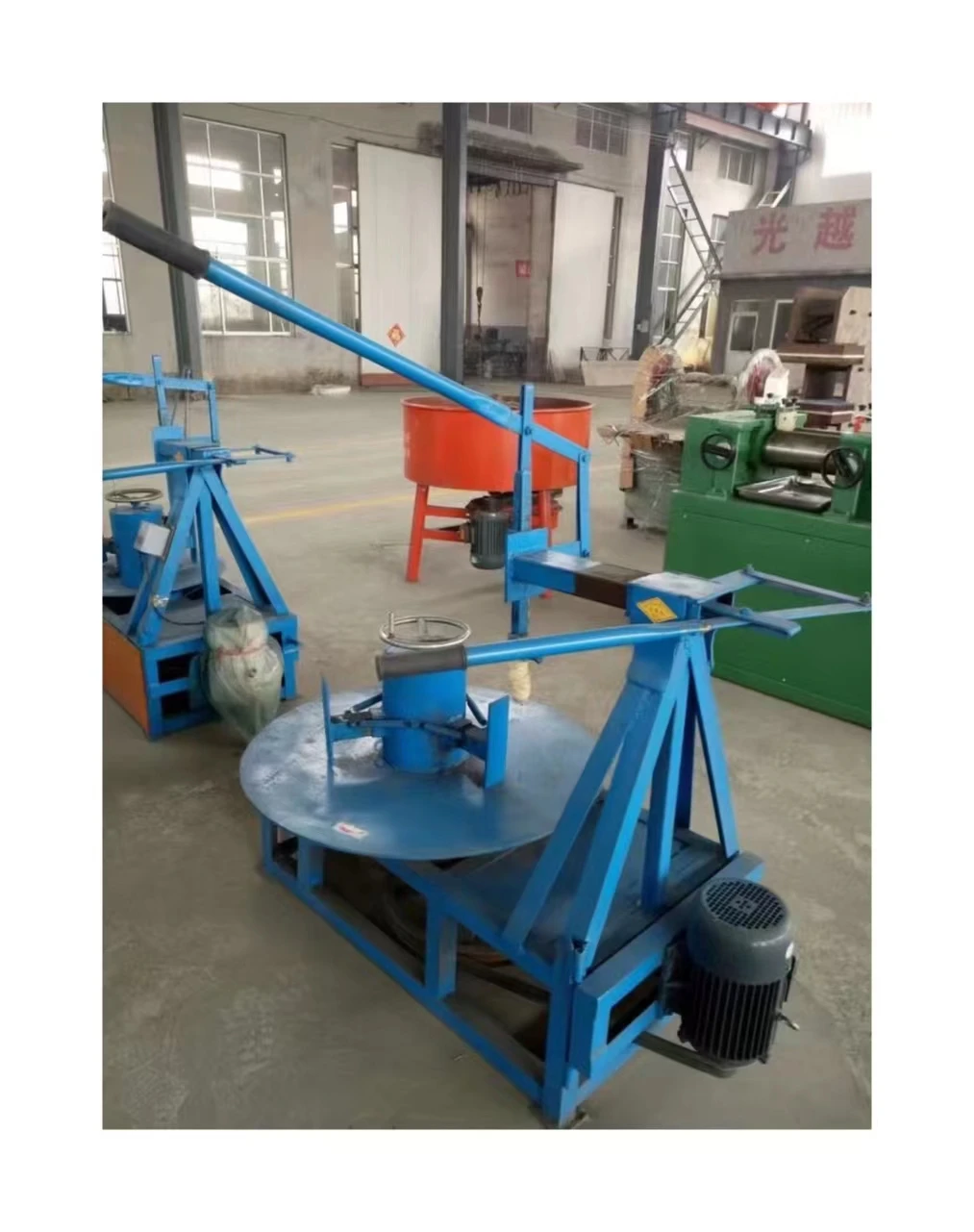

1. Ring cutter



Function: will whole tire cutting into tire crown, the side of the tire and inner circle



Power	Blades rotating speed	Adapt tire	Productivity	Dimensions	Weight
3kw	15R/MIN	650-1200	30strips	1150*850*1200	0.5t





2. Strips cutter





Function: various tire, glue, glue board piece cut into long strips





Power	Productivity	diameter	Output size	Equipment size	weight
4kw	20strips/h	650-1200	25-55	1230*650*1580	0.8t





3. Rim cutter



Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.





Power	Productivity	Output size	Equipment size	Weight
7.5kw	0.8-1.0t/h	35*35	780*550*1210	0.8t





4. Steel wire separator





Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation





Power	Blades rotating speed	Adapt tire	Productivity	Dimensions	Weight
11kw	18R/MIN	650-1200	1-2strips/min	1.7*1.2*1.3m	1500kg





5.Rubber crusher





Type&Specification	XKP-400	XKP-450	XKP-560
Feeding size	3.5CM	3.5CM	3.5CM
Discharging size	10—30 mesh powder	10--30 mesh powder	10--30 mesh powder
Rubber crusher throughput(kg/h)	100--150kg	250—300kg	350—420kg
Motor power(kw)	45	60	75
Outside measurement(m)	4.1×1.8×1.9	4.4×1.9×1.9	5.5×2.2×2.1
Weight(t)	7.5	11	19







     Crush the rubber block into rubber powder and granule .we can produce the no-standard production as your requirement .
