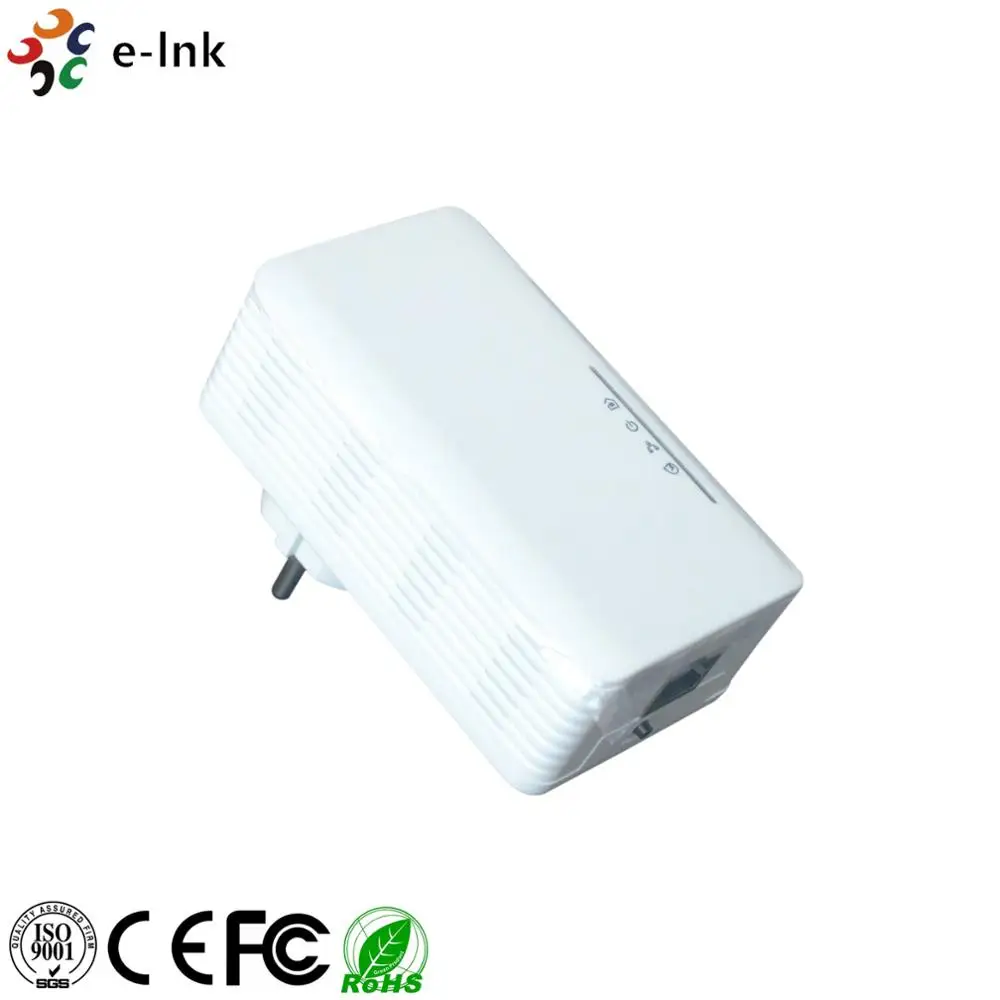

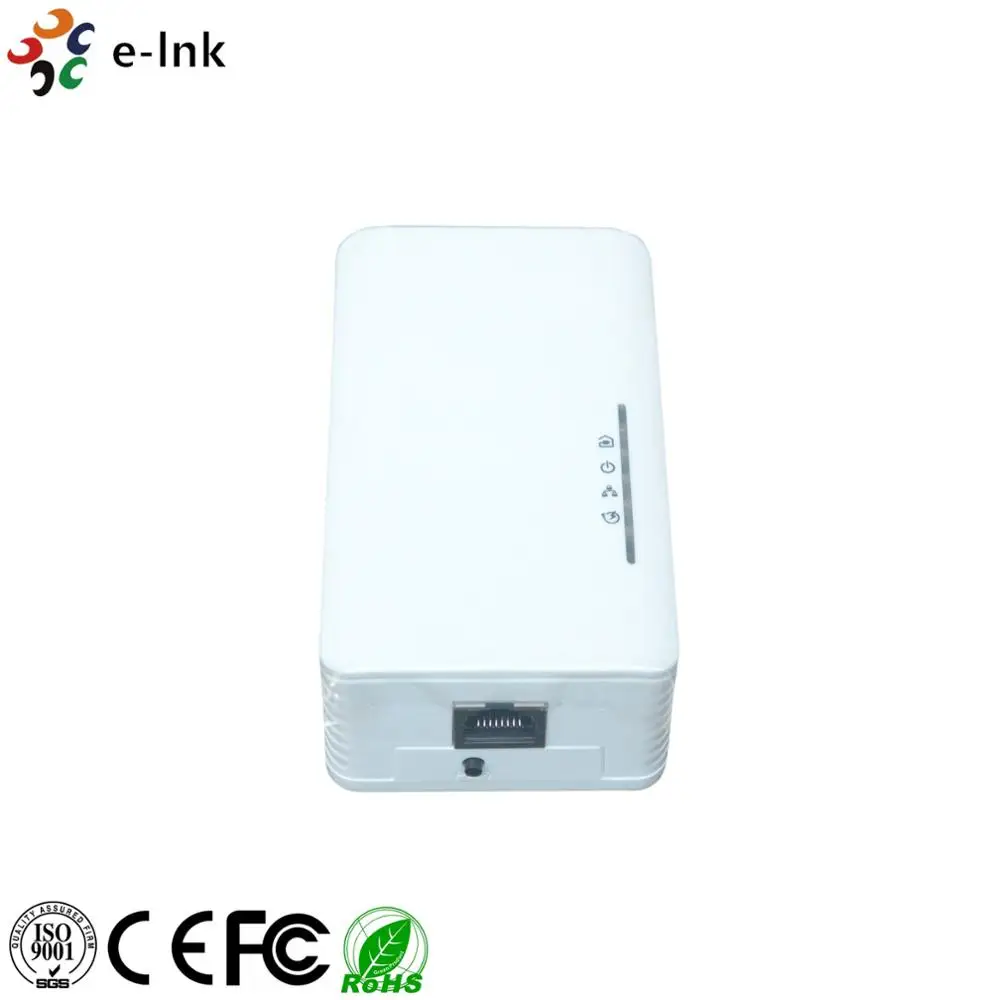

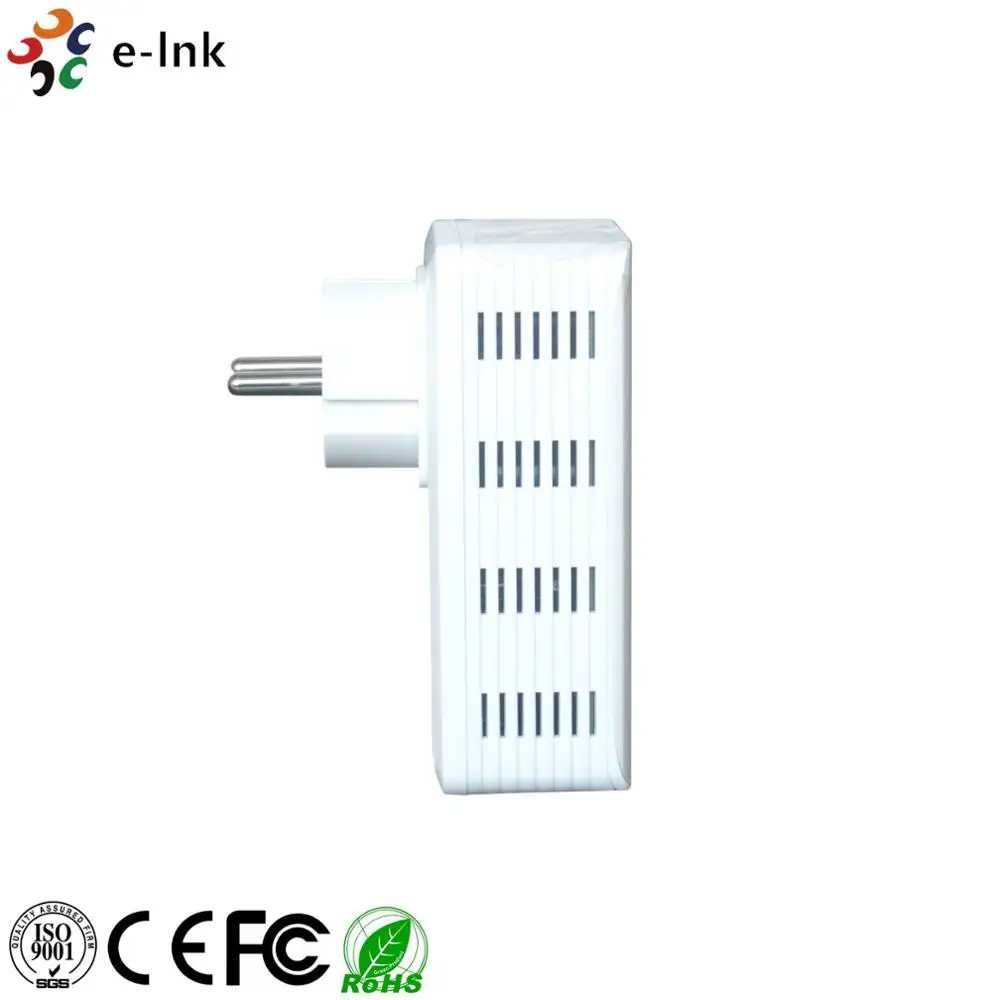

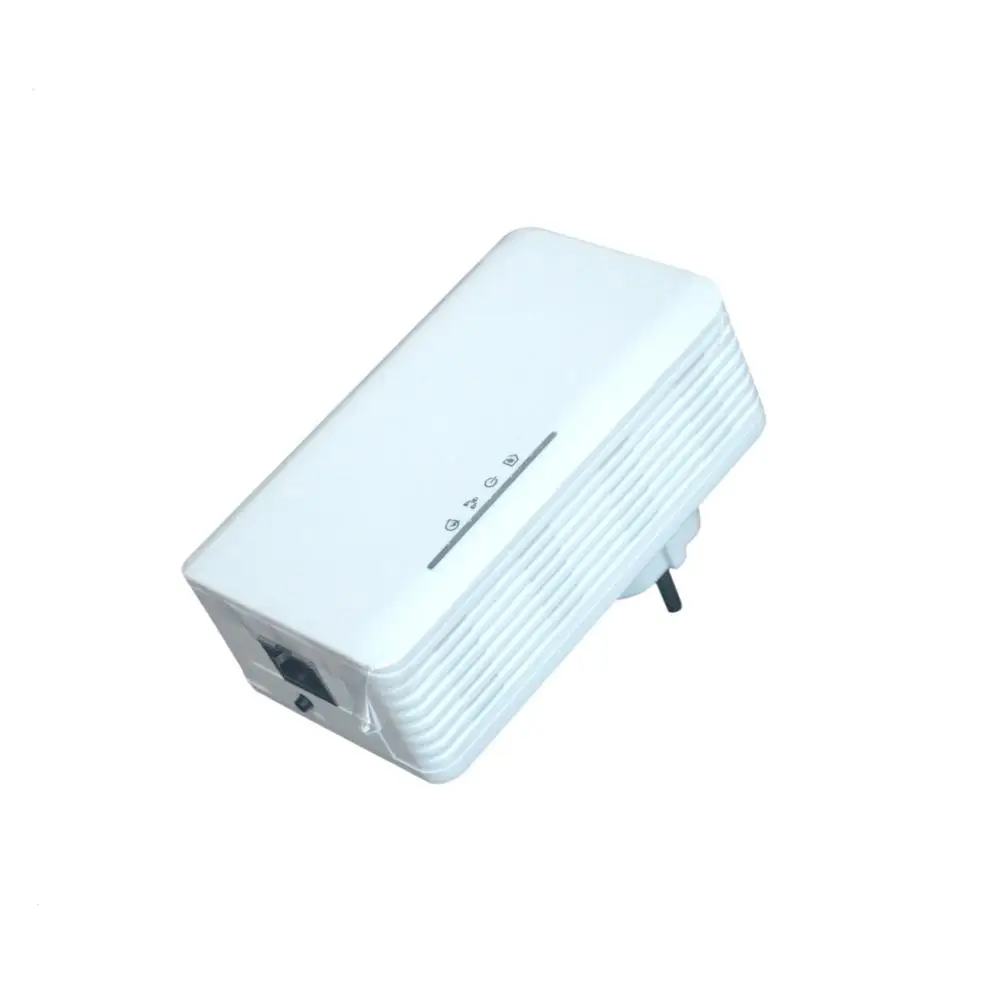

500Mbs Home Plug powerline adapters with PoE Injector & Ethernet interface





Model: LNK-P1200 Series

Overview



E-link's LNK-P1200 High speed powerline adapter with Ethernet interface for fast data transfer high-speed over the existing household power supply, Built-in PoE Injector to provide 48V classification power via CAT5E / CAT6. Through the combination of Powerline and PoE technology you can use your IP-devices completely independent of your network cabling. The E-link LNK-P1200 also offers all benefits and features of a Powerline adapter of the Homeplug AV standard. The new Intellon chip-set version 2 with a higher data throughput enables the data transfer over the 230 V power network of the home cabling. 1200 MBit/s gross bandwidth and the new HomPlug AV standard with quality of service (QoS) are ideal for modern applications like IPTV, Voice over IP and video streaming. Thereby, the power consumption is just approx. 3.9 W.







Features

• High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply
• The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality
• No need new wires and use at any power socket with up to ranges of 300 meters
• Simple plug and easy to install
• Fully compliant with IEEE 802.3 / 802.3u, IEEE 802.3af and HomePlug AV standard
• Provide 48V classification power for the PoE PD over CAT5e / CAT6
• Provide 128-bit AES link encryption for Powerline networks
• Up to 500Mbps data rate on Powerline networking
• Allow user to connect PCs and other devices conveniently via any power outlet at home
• IEEE 802.3af compliant Midspan or Endpoint (Option) PSE





Technical Indexes



Parameter	Specification
Transfer rate (PHY):	1200Mbps
Range:	up to 200m
Frequency Band	2~68 MHz
Access-Method:	OFDM
Powerline Connector:	EU, UK, AU and US
Network Connector:	1x RJ45 10/100Base-TX
Encoding:	128Bit AES-Encryption with key management
LED-Displays:	PLC (PLC signal light)
	ACT
	PWR (power light)
	ETH (Ethernet light)
	PoE (POE light)
Power supply:	100~240 VAC, 50/60 Hz
Power over Ethernet:	PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 48V DC, 15.4 watts
Power consumption:	3.9 watts without PoE terminal, 18 watts maximum
Supported Standards:	IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, Auto MDI / X, HomePlug AV
Operating Systems:	Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems
Housing:	Plastic housing
Environment:	Temperature in use: 0 ~ 40 °C
	Humidity in use: 10% ~ 85% (non condensing)
	Temperature storage: -20 ~ 60 °C
	Humidity storage: 5% ~ 90% (non condensing)
Mark:	CE
Dimension:	96,5 x 67 x 23 mm (height x width x depth)
Weight:	194 grams (only adapter)
	500 grams (incl. accessories and packaging)
Package contents:	1x PoE Powerline Adapter
	1x RJ45 patch cable 1.5m
	1x CD-ROM with manual & software
