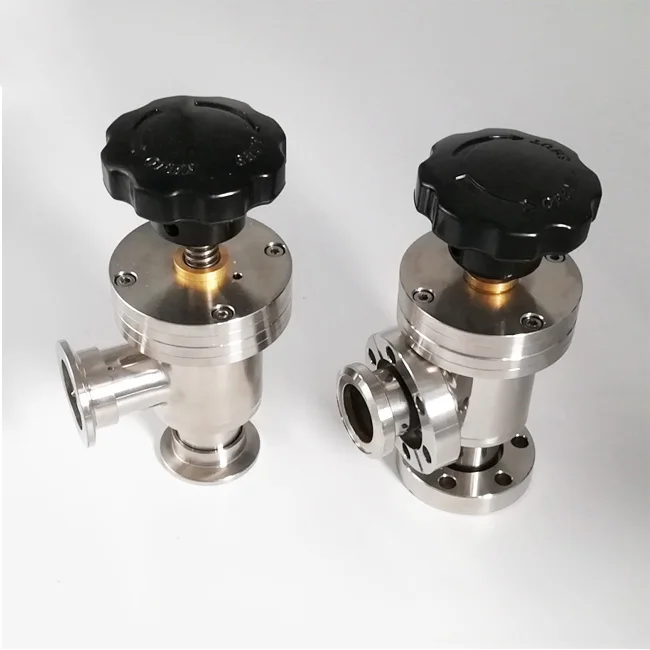

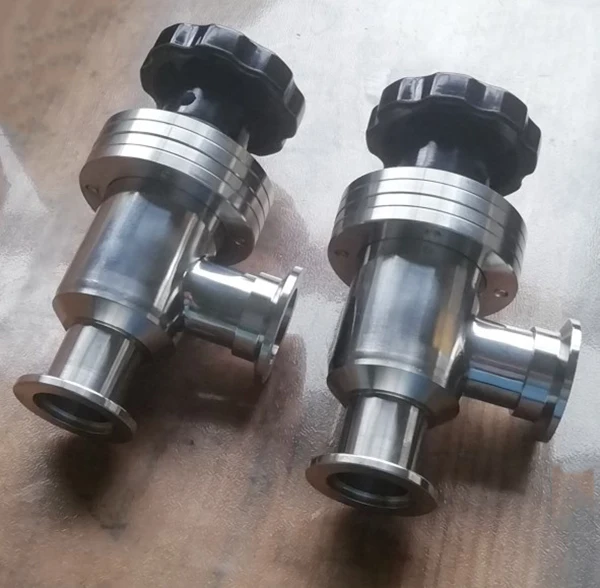

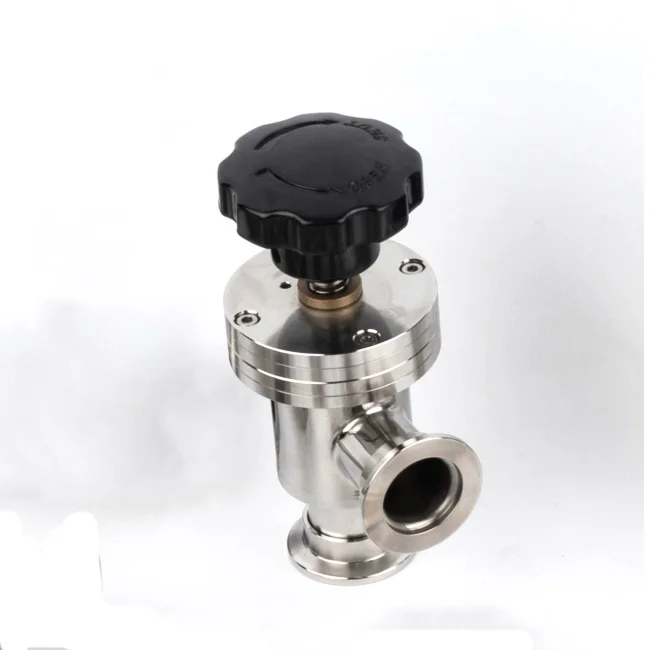

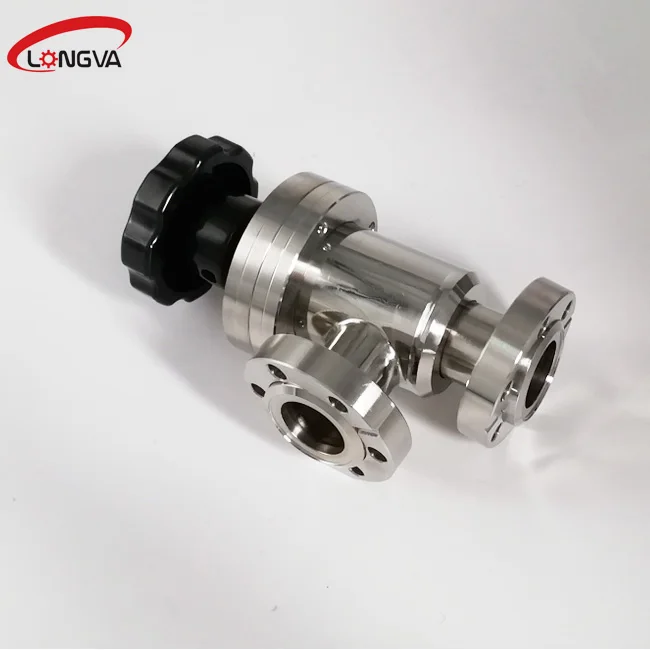

Name:Stainless Steel Manual High Vacuum Flapper Valve KF CF Bellows Angle Valve

     GD high vacuum flapper valve is used to put through or cut off the airflow in vacuum pipeline. According to its shaft seal structure, high vacuum flapper valve is classified into GD-J rubber shaft seal type and GD-J(b)bellows shaft seal type. According to its put-through type, it is classified into GD-J angle type and GD-S three-way type with prepumping.

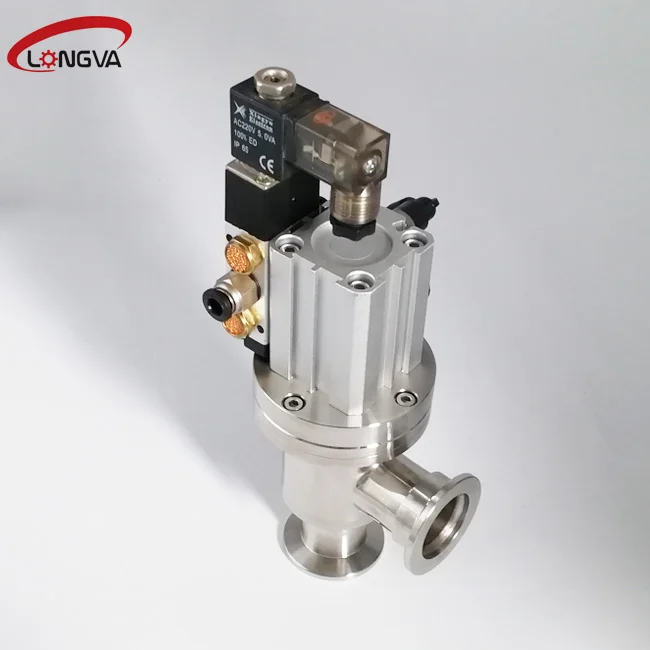

    GDQ-J/KF series pneumatic high vacuum baffle valve is sealed with fluorine rubber shaft seal, which is a vacuum valve used to open or cut off the air flow in the vacuum system. The valve is powered by compressed air. It is executed by the cylinder, and the electromagnetic directional valve changes the direction of the gas path to drive the valve rod to move up and down to achieve the purpose of opening or closing the valve plate. The valve has the advantages of reliable performance and long life. The valve has the functions of normally open and normally closed, and can be equipped with magnetic switch signal control and explosion-proof solenoid valve device. The applicable working medium is air and non-corrosive gas.

Size	KF16,KF25,KF40,KF50
Material	SUS 304, SUS 316L
Medium	air
Range of Application	1×10-6Pa~1.2×105Pa(bellows seal);                                                             1×10-5Pa~1.2×105Pa(FPM seal)
Differential pressure on the disc	≤1.2×105 Pa
Leakage rate of body and seat	≤1.3×10-7Pa·L·s-1
Temperature range	-30°C~+150°C

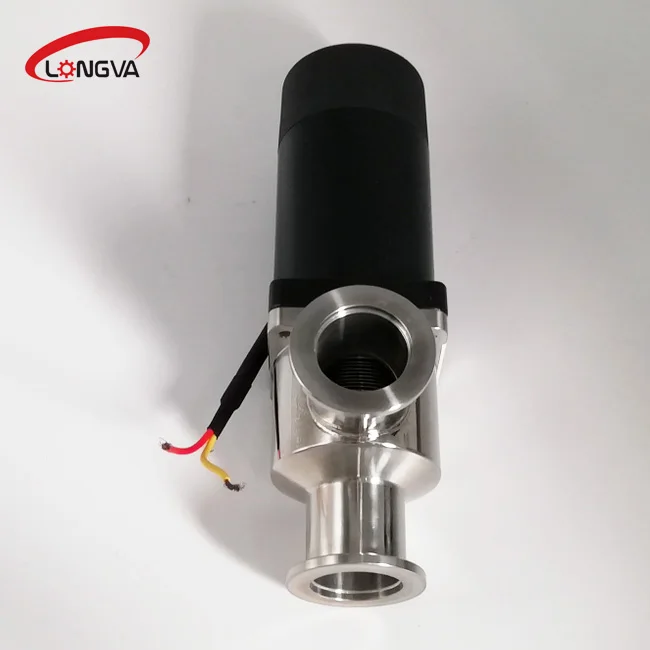

Working Principle	by manual,pneumatic,electric
Application	vacuum system

(As your reference)



     A: We can not promise you the lowest price,because the best quality is what we pursue firstly.

     Q: Can you provide us with some samples for testing?
     A: Of course, we can offer you samples.
        You only need to bear the freight and samples' charge can be negotiated.

     Q: How about your service?
     A: We have pre-sale service, in-sale service and after-sale service and you can know about them in our service.

     Q:What's your package?
      A:1pc/plybag then put into carton box;

     Q:What's the shipping way?
     A:small package,you can choose courier or China post(if it is not urgent)
     Large or weight package,you can choose by air,see or train.

     Q:What's the information we need tell you before we place order?
     A:you need tell us your flange standard,connection,size,mateiral,operate(manual,pneumatic or electric).

      Q:What's the delivery time?
      A:if the qty is less than 1000pcs normal 12~15days,if 1000~5000pcs about 20-25days.
