Экструдированный дорожный твердосплавный

Описание и отзывы

Трекер стоимости

Характеристики

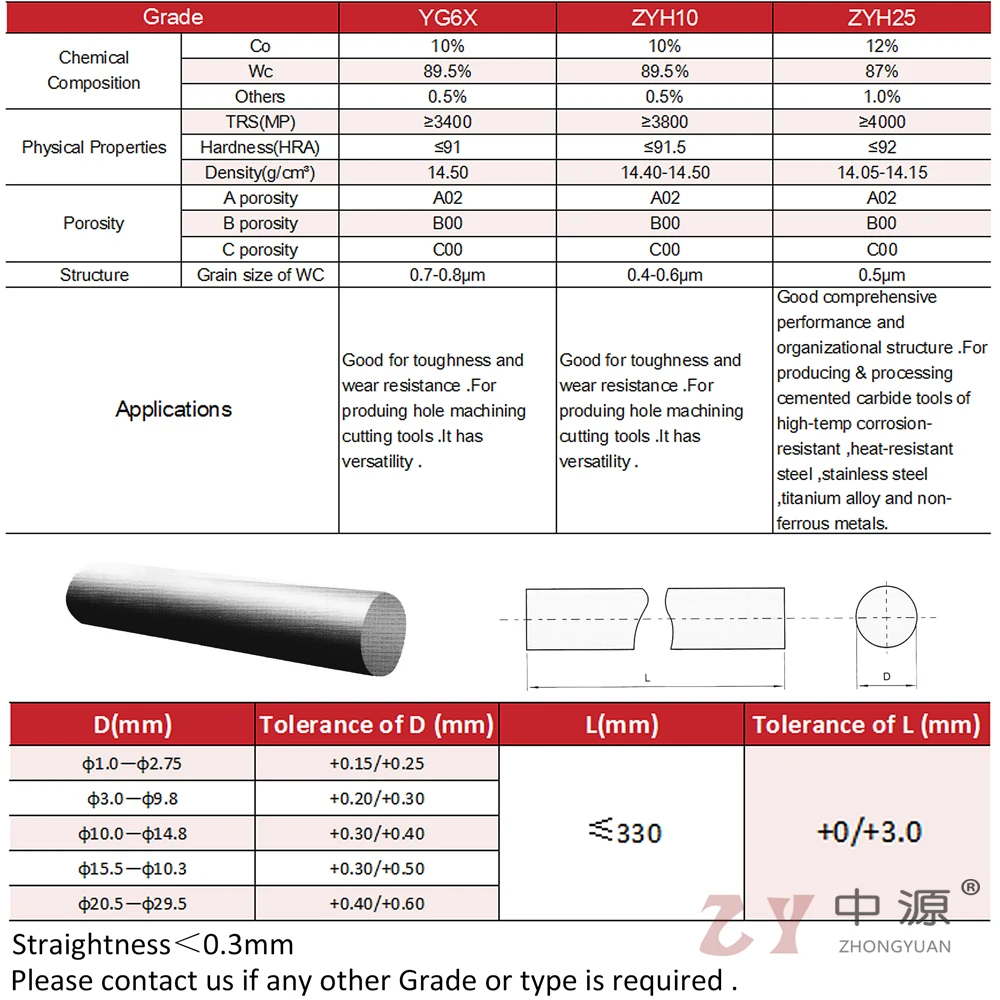

Grade		YG6X	ZYH10	ZYH25
Chemical Composition	Co	10%	10%	12%
	Wc	89.5%	89.5%	87%
	Others	0.5%	0.5%	1.0%
Physical Properties	TRS(MP)	≥3400	≥3800	≥4000
	Hardness(HRA)	≤91	≤91.5	≤92
	Density(g/cm³)	14.50	14.40-14.50	14.05-14.15
Porosity	A porosity	A02	A02	A02
	B porosity	B00	B00	B00
	C porosity	C00	C00	C00
Structure	Grain size of WC	0.7-0.8μm	0.4-0.6μm	0.5μm
Applications		Good for toughness and wear resistance .For produing hole machining cutting tools .It has versatility .	Good for toughness and wear resistance .For produing hole machining cutting tools .It has versatility .	Good comprehensive performance and organizational structure .For producing & processing cemented carbide tools of high-temp corrosion-resistant ,heat-resistant steel ,stainless steel ,titanium alloy and non-ferrous metals.

Grade		ZT20	ZT30
Chemical Composition	Co	10.3%	7.2%
Physical Properties	TRS(MP)	≥2500	≥2800
	Hardness(HRA)	91~91.5	92~92.5
	Density(g/cm³)	14.2~14.4	14.6~14.7
Porosity	A porosity	A02	A02
	B porosity	B02	B02
	C porosity	C00	C00
Structure	Grain size of WC	0.7~0.8μm	0.6~0.7μm



 Extruded ground cemented carbide rod



D(mm)	Tolerance of D (mm)	L(mm)	Tolerance of L (mm)
φ1.0—φ2.75	+0.15/+0.25	≤330	+0/+3.0
φ3.0—φ9.8	+0.20/+0.30
φ10.0—φ14.8	+0.30/+0.40
φ15.5—φ10.3	+0.30/+0.50
φ20.5—φ29.5	+0.40/+0.60





   NEED MORE INTRODUCTION? CONTACT US!













1Q: What's the payment term?

A: T/T, L/C, WESTERN UNION and ONLINE TRADE ASSURANCE ORDER.

2Q: What's the delivery time?
A: 2-15 working days based on quantity after confirmed sample
But for new molds, the delivery time may be 25-35 days, as we need about 10days to produce and test.

3Q:Tell me the standard of package?
A: It will be carton for the small capacity. But for big capacity, we will use strong wooden case  metal drum for protection.





4Q: Do you accept OEM?

A: If you have good quantity, it's no problem.

5Q: Are free samples available?
A: Yes, but sample fee or freight fee will be required, the sample fee will be returned to you after you making official order.

6Q: Where is your market?
A: Our products are popular in Germany, America, Brazil, India, Russia, Indonesia, Philippines, Italy, Pakistan South Africa, Egypt and etc.



Contact us right now!
