Система кондиционирования воздуха выхлопная решетка для
- Категория: Системы ОВКВ и запчасти >>>
- Поставщик: Foshan,Vairtech,Ventilation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 11.45 $* | 11.71 $* |
| Jul-18-2025 | 9.95 $* | 9.33 $* |
| Jun-18-2025 | 11.14 $* | 11.19 $* |
| May-18-2025 | 11.50 $* | 11.54 $* |
| Apr-18-2025 | 9.79 $* | 9.2 $* |
| Mar-18-2025 | 11.92 $* | 11.94 $* |
| Feb-18-2025 | 11.20 $* | 11.15 $* |
| Jan-18-2025 | 11.95 $* | 11.72 $* |
Характеристики
Product Description

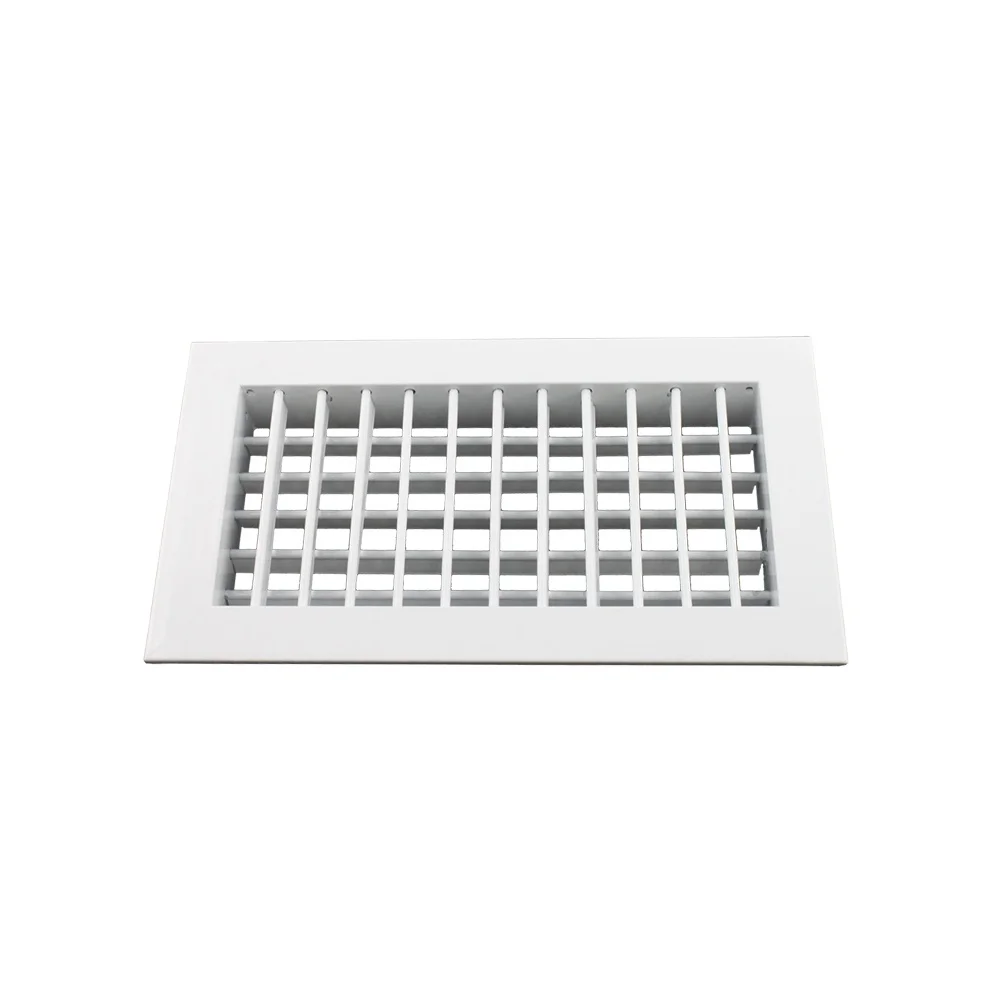

Product Name | HVAC air conditioner exhaust air grille for ventilation |
Material | aluminum alloy |
Function | wall&ceiling |
HS CODE | 7616999000 |
Description:
The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

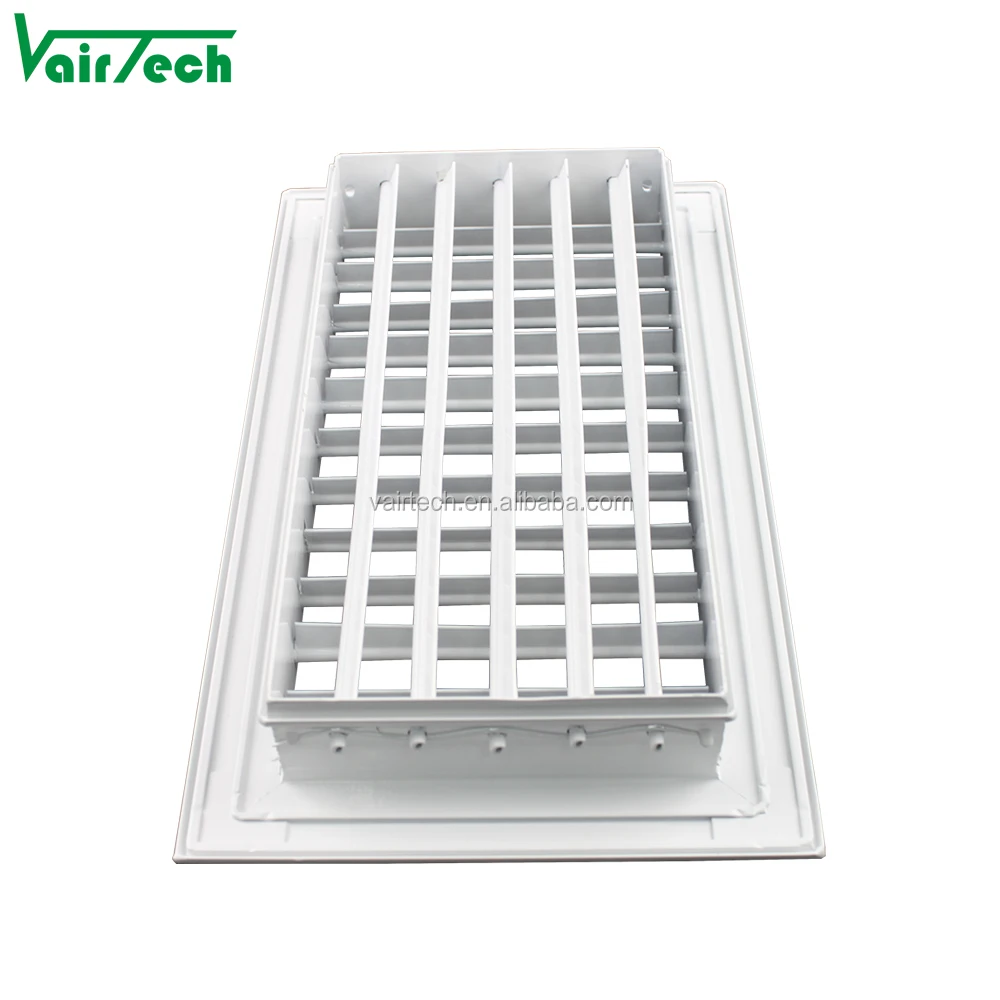

Grilles have two sets parallel blades,
DG-AV: vertical on the front and the horizontal at the rear,
DG-AH: horizontal on the front and the vertical at the rear
Blades can be adjusted manually and individually to provide air deflection in both horizontal and vertical planes.
Maximum affective pressure areas can be achieved when the blades are positioned at 0 degree.
The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
Grilles have two sets parallel blades,
DG-AV: vertical on the front and the horizontal at the rear,
DG-AH: horizontal on the front and the vertical at the rear
Blades can be adjusted manually and individually to provide air deflection in both horizontal and vertical planes.
Maximum affective pressure areas can be achieved when the blades are positioned at 0 degree.

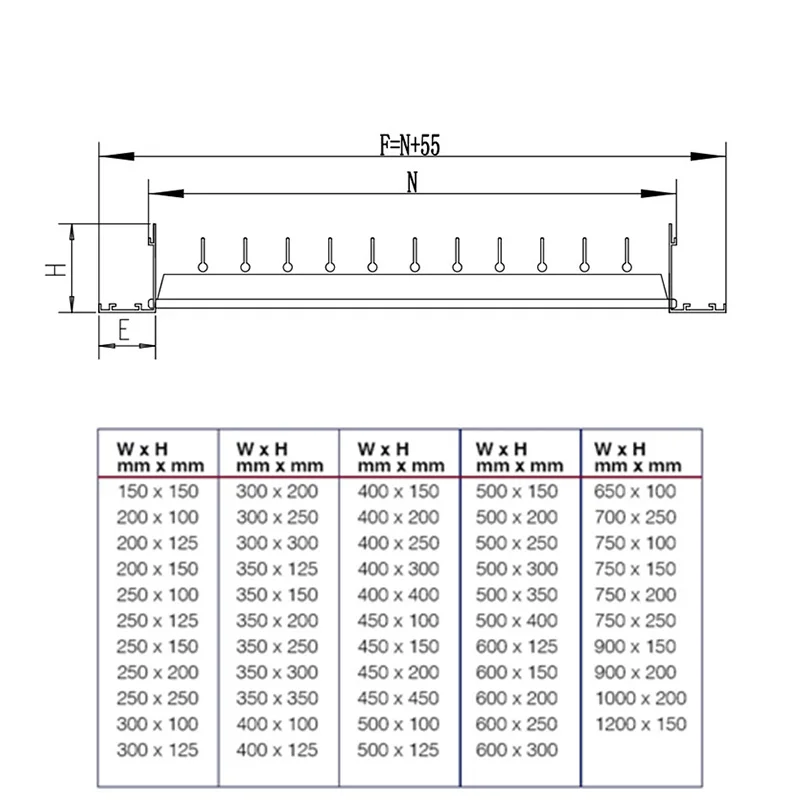

Any size available
Over face size= Neck size +55mm
W x H mm x mm | W x H mm x mm | W x H mm x mm | W x H mm x mm | W x H mm x mm |
150 x 150 | 300 x 200 | 400x 150 | 500 x 150 | 650 x 100 |
200 x 100 | 300 x 250 | 400 x 200 | 500 x 200 | 700 x 250 |
200 x 125 | 300 x 300 | 400 x 250 | 500 x 250 | 750 x 100 |
200 x 150 | 350 x 125 | 400 x 300 | 500 x 300 | 750 x 150 |
250 x 100 | 350 x 150 | 400 x 400 | 500 x 350 | 750 x 200 |
250 x 125 | 350 x 200 | 450 x 100 | 500 x 400 | 750 x 250 |
250 x 150 | 350 x 250 | 450 x 150 | 600 x 125 | 900 x 150 |
250 x 200 | 350 x 300 | 450 x 200 | 600 x 150 | 900 x 200 |
250 x 250 | 350 x 350 | 450 x 450 | 600 x 200 | 1000 x 200 |
300 x 100 | 400 x 100 | 500 x 100 | 600 x 250 | 1200 x 150 |
300 x 125 | 400 x 125 | 500 x 125 | 600 x 300 |

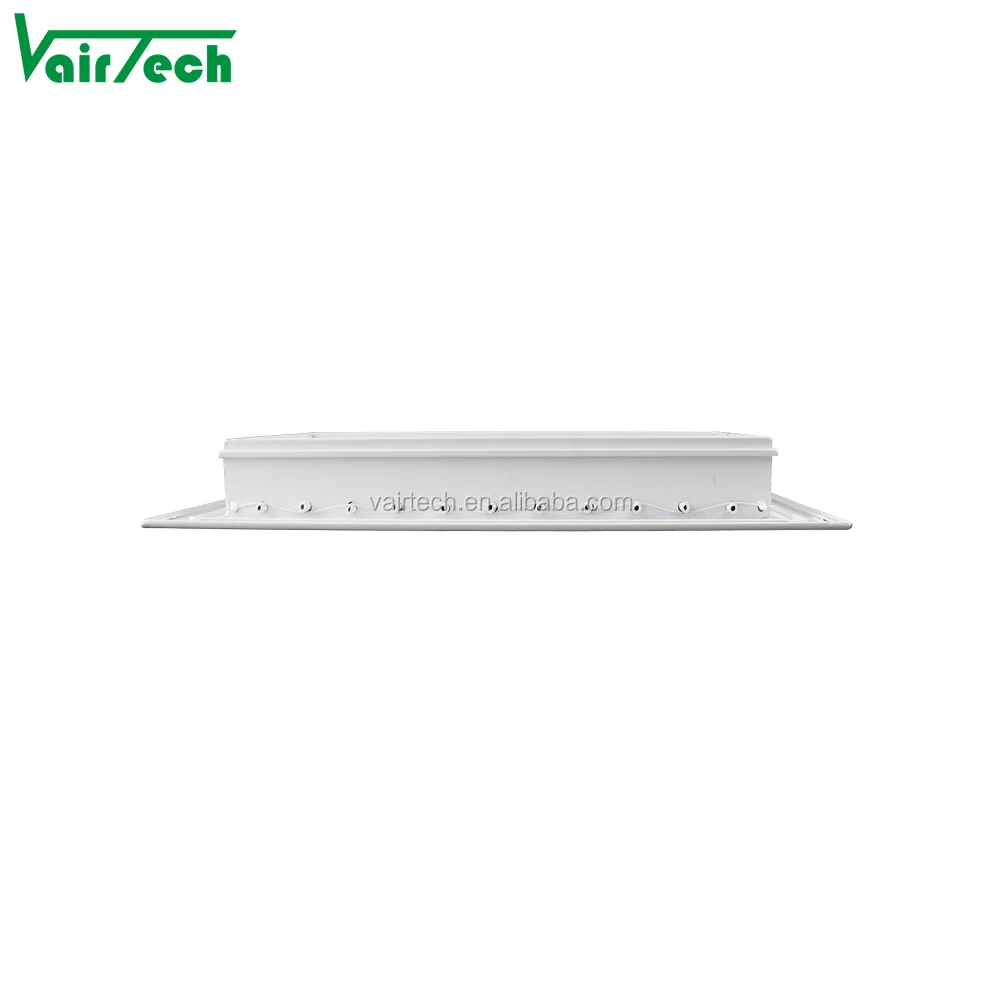

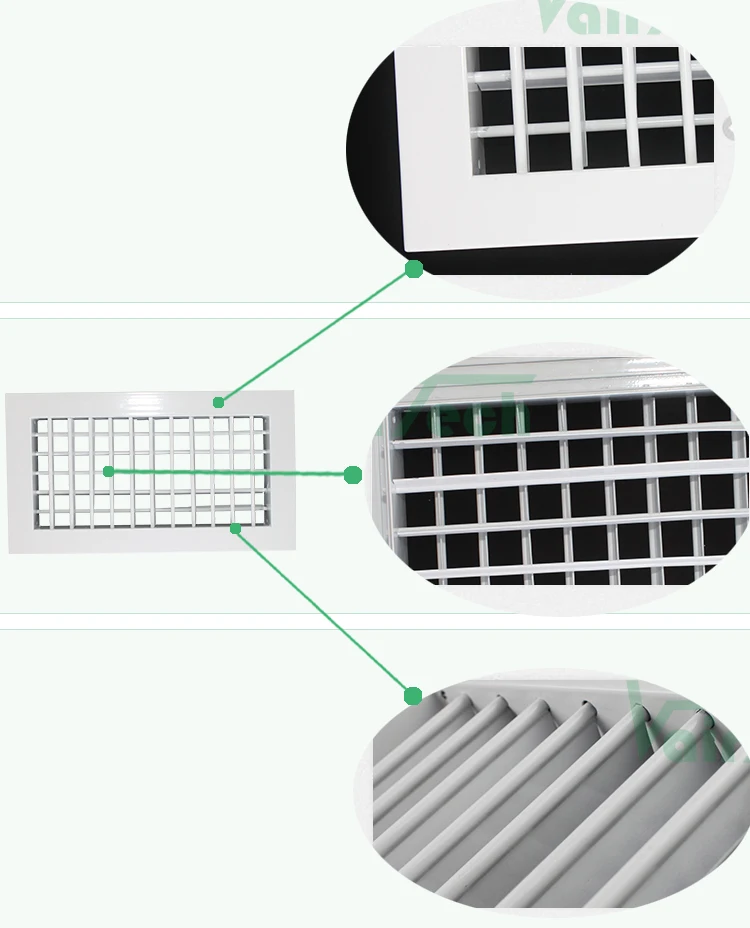

Details Images
Advantage
Packing&Shipping
1. Plastic corner protection; 2. Inner PVC bag packed;
3. Outer strong carton; 4. Extra pallet for option.
Related Products
Company Profile
Machines and aluminum profiles providing
Welcome to Choose Vairtech
we will supply best service for you sincerely
FAQ
Q: Where to load the goods?
A: Foshan City, China.
Q: Can I ask for a slight change in the design of the product according to our project?
A: Yes, we can do that, our factory production is very flexible.
Q: Can you print words on products as per client's requirement?
A: Yes, make label according to your exact requirement.
Q: Can I ask for a slight change in the design of the product according to our project?
A: Yes, we can do that, our factory production is very flexible.
Q: Can you print words on products as per client's requirement?
A: Yes, make label according to your exact requirement.
