Характеристики
Product Description

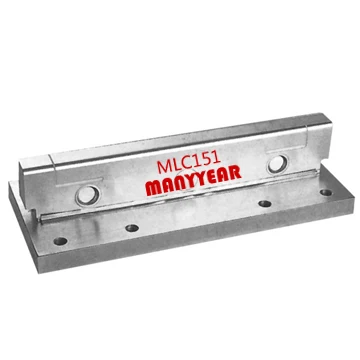

High precision alloy steel railway scale load cell 5ton
Model: MLC151
Category: Bridge load cell
Load range: 5ton
Dimension: 374*160*91mm
Material: alloy steel, stainless steel
Application: railway scale, truck scale
Category: Bridge load cell
Load range: 5ton
Dimension: 374*160*91mm
Material: alloy steel, stainless steel
Application: railway scale, truck scale
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
Comprehensive error: | 0.1%FS | Output resistance: | 702±5Ω |
Rated output: | 2.5±0.005mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
Non-linearity: | 0.1%FS | Excitation voltage: | 9~12VDC |
Hysteresis: | 0.1%FS | Compensated temp: | -10~+40℃ |
Repeatability: | 0.03%FS | Use temperature: | -20~+55℃ |
Creep: | 0.03%FS/10MIN | Temp effect on zero: | 0.05%FS/10℃ |
Zero balance: | ±1%FS | Temp effect on span: | 0.05%FS/10℃ |
Input resistance: | 750±10Ω | Defend grade: | IP66 & IP68 |

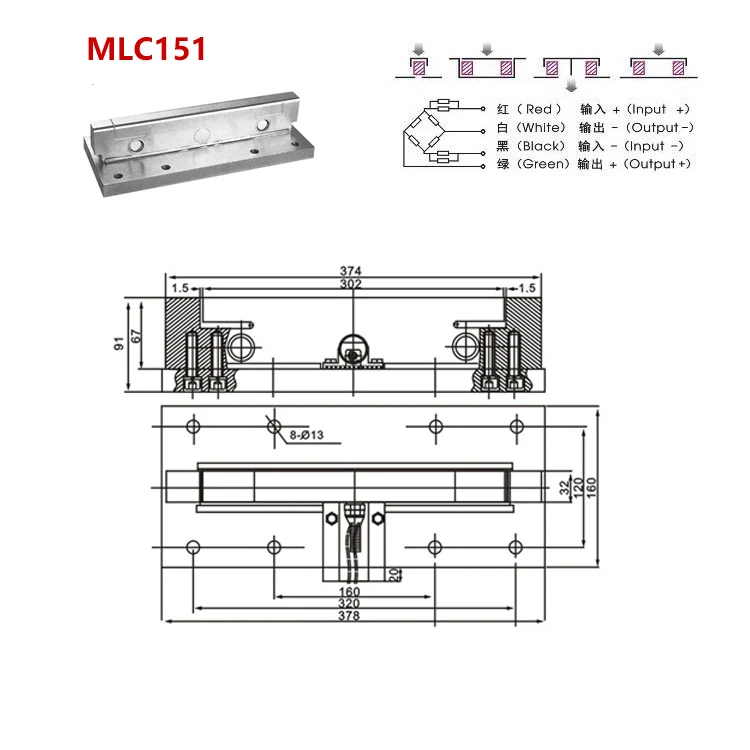

Product Assembly Structure
Blow force structure is for reference.
Product Process
Product Application
Delivery and Shipment
