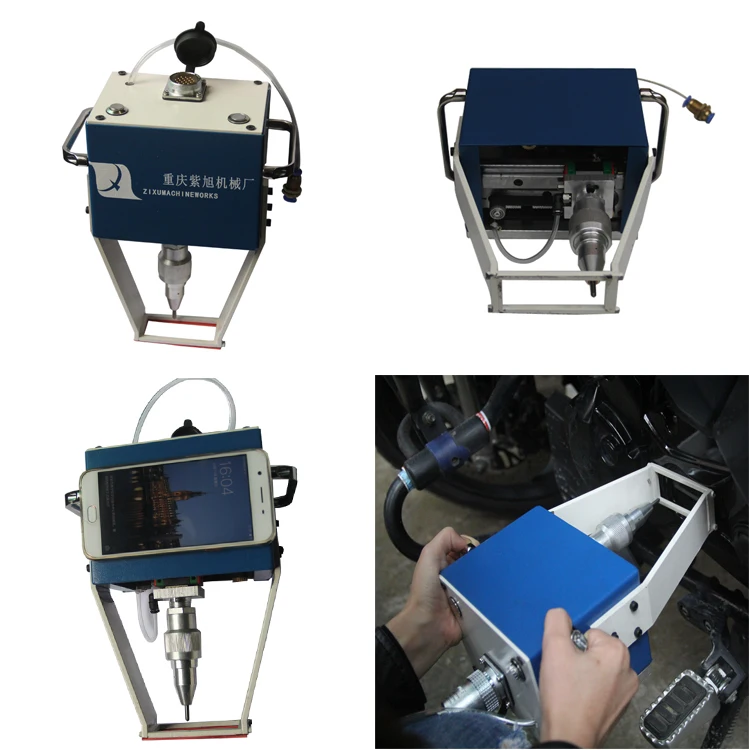

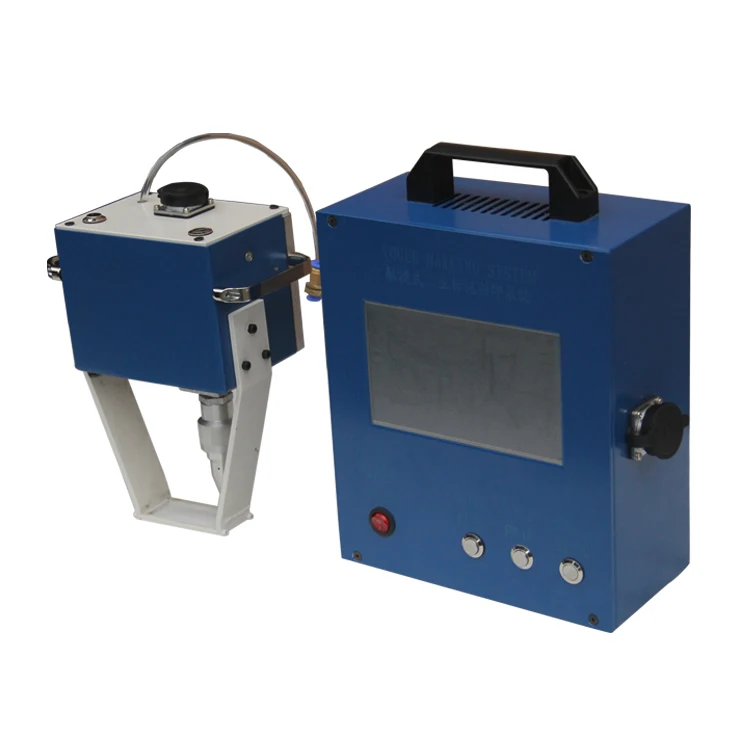

Zixu Pneumatic Portable Vin Chassis Number Maker Machine





Vin Number Marking Machine Description


Vin number printing machine,used for marking car or motorbike vin number. Our machine is light in weight and easy to operate.The failure rate is very low and the maintenance is low. Supply cusotmized fixture. Vin number printing machine also called pneumatic dot matrix marking machine.


It consists of three parts:the computer system,the control system,the air compressor. Inputting the printing contents into the computer,the control system will control the marking pin working under a certain trajectory on an X-Y two-dimensional plane. At the same time,affected by the compressed air,the marking pin begin to work. Because of its small and light weight design, It’s easy to carry for marking, has gradually became our company’s primary products.







marking machine (9).jpg

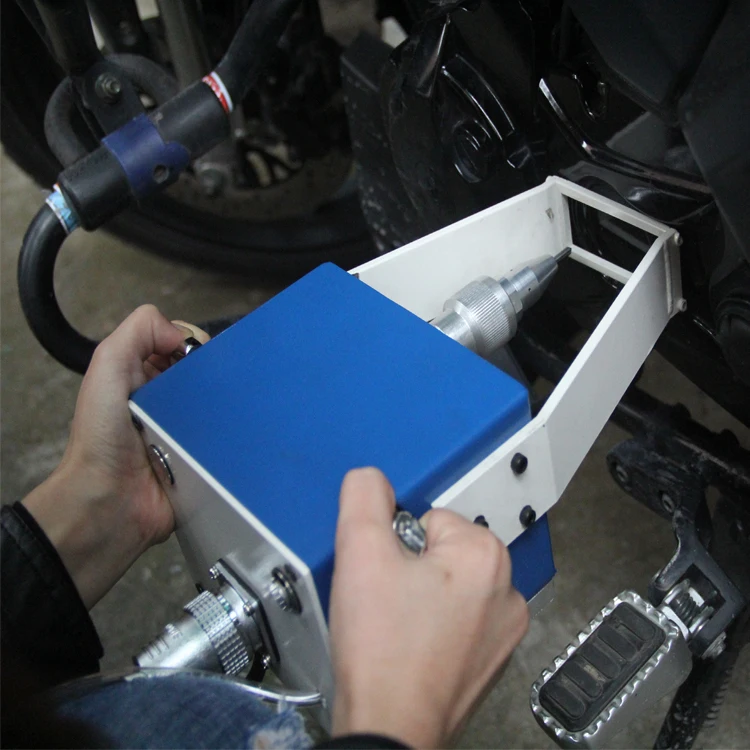

Vin Number Marking Machine Application





marking machine (20).jpgmarking machine (12).jpg

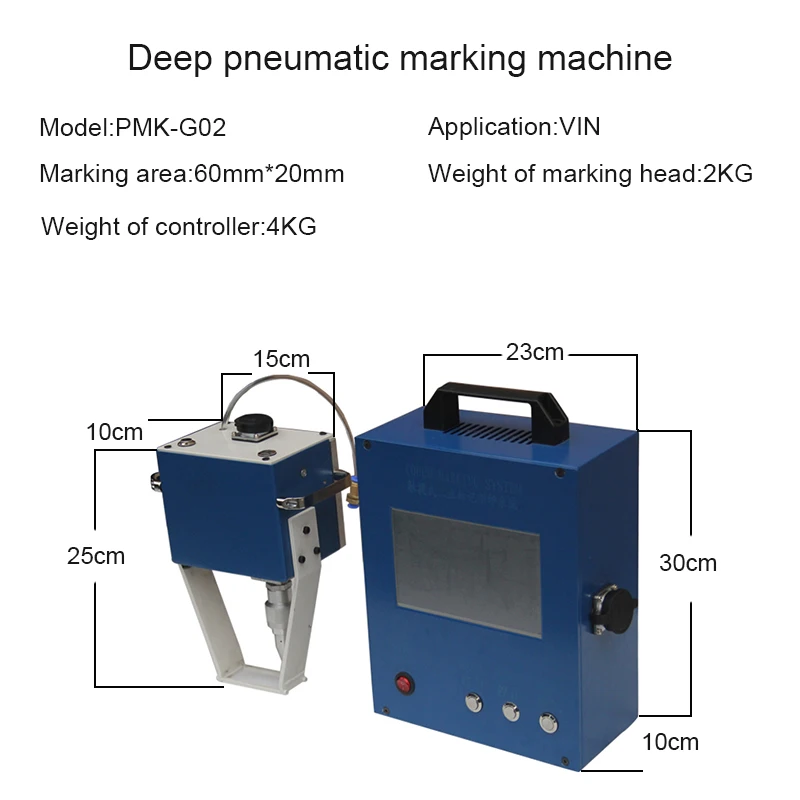

 Vin Number Marking Machine Parameter













































































Marking speed



2-5 characters(2x2mm)/s



Stroke Frequency



300times/s



Marking depth



0.01 to 1mm (Vary to the material)



Marking contents



Alphanumeric info, Data Matrix or dot matrix 2D codes,


Shift codes, Barcode, Serial Number, Date, VIN Code, Time,


Letter, Figure, Logo, Graphics and etc.



Stylus Pin Hardness



HRA92/HRA93



Marking area



80x40mm,130x30mm,140x80mm,200x200mm



Dimensions



320x420x440mm



Marking materials



below HRC60 metallic and nonmetallic materials ,


above HRC60 need special stylus



Repeat accuracy



0.02-0.04mm



Power



300W



Work voltage



AC 110V 60HZ or AC220V 50HZ



Compressed Air( Pneumatic Air)



0.2-0.6Mpa



Connection



 USB and RS-232



Controller



a. 7"LCD touch screen controller


b. windows 7&windows XP



Power type



a.Pneumatic


b.Electric



Marking directions



up, down, left, right, and the circular arc surface marking



Net weight



12KG






Vin Number Marking Machine Advantages


1.     The size is same as the phone,easy to carry


2.     suiting for outdoor and other places


3.     For automobile beam, frame, engine, marking operation is especially convenient.










Vin Number Marking Machine 's Marking Needle


1.High wear resistant,high frequency,strong intensity,long range,stable performance


2.Adopt imported all-carbide crown/marking needle


3.For metal parts below hardness HRC63 and hard non-metallic


4.Needle strength 30% higher than ordinary marking









Vin Number Marking Machine High precision linear guides


1.Use high precision gap automatically fit


2.Heat resistance,compressive


3.Small sliding wear


4.Long product service life







Vin Number Marking Machine Swith Button


1.Use metal material for body


2.Service life :more than 10 millions times of


3.Durable




marking machine (21).jpg





Vin Number Marking Machine Free Items


Including two marking needles,pressure regulating valve,power line and one cable





Why choose us?


1.Smart and portable,easy to carry for working on big parts like Automotive frame


2.Numerous option for fonts,supporting edit fonts


3.Marking depth is adjustable by controlling the marking pin


4.Stable quality and can work continuously for the whole day


5.Flexible configuration of various models of mark


6.High speed operation, stable lasting


7.Support line and dot marking


8.Can be customized according to the customers’ requests.





Vin Number Marking Machine Factory


Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001,  TUV certificate, won the domestic and foreign large number of customers favor and approval.





.jpg





marking machine.jpg





Vin Number Marking Machine Packing and Shipping


The machine gross weight is 22KG


.


























  Delviery time



3-10days



Type of shipping



Express,air or sea



Terms of payment



T/T,credit card,western union,paypal



package size



75x55x83cm



Gross weight



22KG
