Продвижение 8 каналов IRD ТВ цифровой приемник декодер DVB-S/S2/T/T2 RF DVB к IP Шлюз
- Категория: Satellite TV Receivers >>>
- Поставщик: Hangzhou,Dtvane,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.67 $* | 0.30 $* |
| Aug-19-2025 | 0.48 $* | 0.64 $* |
| Jul-19-2025 | 0.34 $* | 0.93 $* |
| Jun-19-2025 | 0.97 $* | 0.80 $* |
| May-19-2025 | 0.69 $* | 0.58 $* |
| Apr-19-2025 | 0.35 $* | 0.68 $* |
| Mar-19-2025 | 0.73 $* | 0.5 $* |
| Feb-19-2025 | 0.13 $* | 0.13 $* |
| Jan-19-2025 | 0.39 $* | 0.27 $* |
Характеристики
DTVANE Work with customers together to fight the epidemic ,we offer free disposable mask as gift for any order.
We trust human will succeed amid anti-epidemic battle soon.
We trust human will succeed amid anti-epidemic battle soon.
Top Selling
Contact Us
Contact Person | Lisa Lee | ||||
Email | service(at)digicast.cn | ||||
Skype | 86 13857172666 | ||||
Mobile/Whatsapp/Wechat | 8618167118312 | ||||
Detailed Images
Overview:

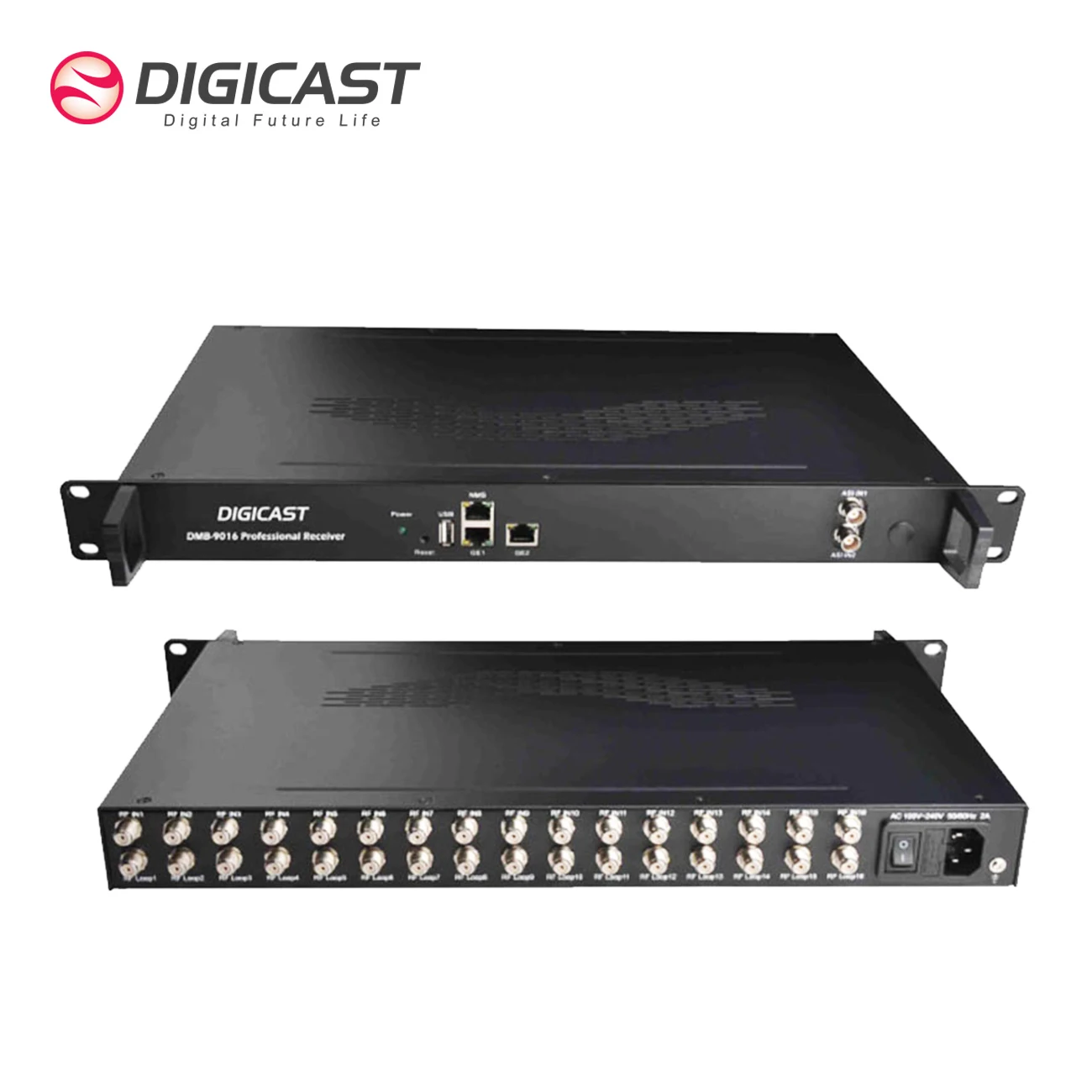

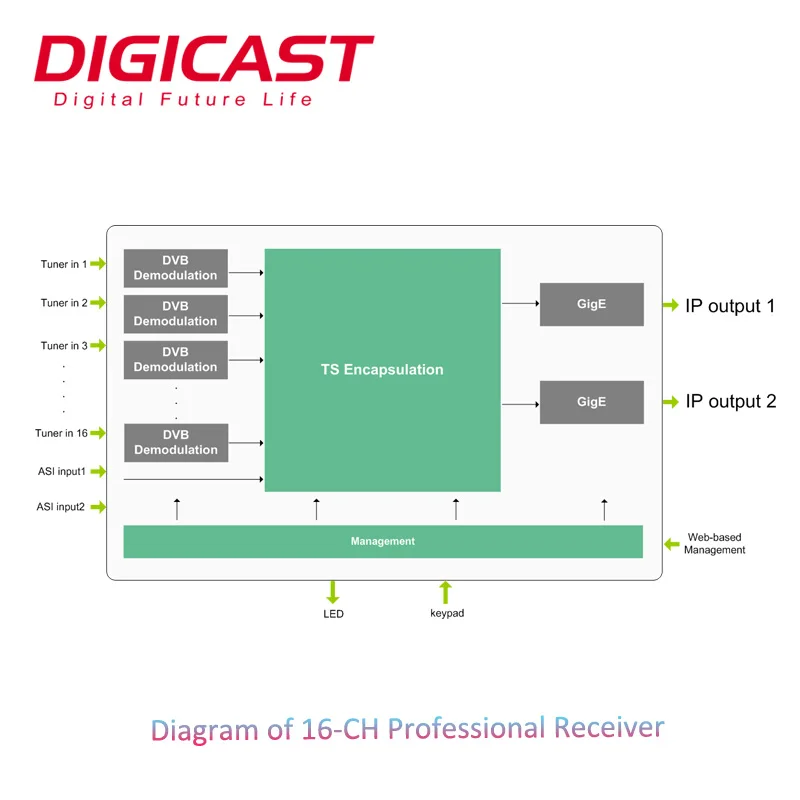

DMB-9016B 16 Channel professional Receiver works with TS over IP technology. De-modulate the Tuner signals to DVB-ASI signals, encapsulating TS over IP signals for transmission via Internet. Meanwhile capable of multiplexing, BISS descrambling, DisEqc. This Multi-Channel Professional Receiver accept 16*Tuners (DVB-S/S2/T/T2/C/ISDB-T optional) input, DE-modulate to 2*ASI(independent) output and encapsulate to IP packet. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol through different IP address and ports.
Product Description
FEATURES:
Tuner inputs support DVBS/S2,DVBT/T2,DVBC,ISDBT/Tb for option
Three input version option :
Optional 1:16 tuners input +2 ASI input---SPTS output
Optional 2:14 tuners input +2 ASI input --- MPTS output
Optional 3:16 tuners input --- MPTS output
* Tuner inputs support DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb/ATSC for option
* Each Tuner input with loop out interface, for the convenience of next device
* Up to 512*SPTS or 16*MPTS output over IP addresses or ports via GigE
* IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol
*Capable of BISS decryption.
* Realize optimum transmission performance in low latency
* Easy and convenient operation, with keyboard on front panel and LCD display
* Web-based management
* 16 MPTS or 512 SPTS output option
* 2 GE mirrored output, up to 850Mbps---SPTS
* 2 independent GE output port, GE1 + GE2---MPTS
* Support PID filtering, re-mapping (Only for SPTS output)
* Support “Null PKT Filter” function (For MPTS for output)
* Support Web operation
SPECIFICATION | ||||||
Transport Stream Input Interfaces | ||||||
Tuner Input | Interface: 16*Tuner(DVBS/S2/T/T2/C/ISDBT/Tb) input and loop out RF input range: 950MHz~2150MHz(DVBS/S2) Input level: 65~25dBm Connector: Ffemale type, 75ohm Symbol rate: 2~45Msps for QPSK/8PSK Rolloff factor: 0.35 for QPSK; 0.35,0.25,0.2 for 8psk Convolution: DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 ; DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 Standard: DVBS comply to EN300421 DVBS2 comply to EN302307 LNB Power Output: 0V/+DC 13V/18V, Imax=400mA | |||||
Transport Stream Output Interfaces | ||||||
ASI Output | 2 x ASI(independent),impendence 75Ω, BNC Female 188/204 Bytes MPEGTS per packet length Bit Rate≤100Mbps each | |||||
IP Output | Output option1 : 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast Output Option2: 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast Interface: GigE port(100/1000M base-T Ethernet),RJ45 Transmission protocol: UDP, RTP, ARP, ICMP, IGMP protocol Transmission mode: Unicast or Multicast TS packet Length: 7 x 188Byte | |||||
Transport Stream Processing | ||||||
Re-multiplexing | Capable of multiplexing, BISS decryption, SimulCryption & DVBCSA scrambling(optional) | |||||
GENERAL OPTIONS | ||||||
Control and Management | Interface: 1*RJ45,10/100 BaseT network interface Remote control: web-based management Local operation: keyboard on front panel, LCD display | |||||
Voltage: 90~260VAC, 50/60Hz Consumption: 25W Operating temperature: 0~50°C Storage temperature: 10~70°C Relative humidity: 10%~90%(non-condensing) Dimensions: 430mm(W)×400(D)mm×45mm(H)(19inch,1RU) Weight: 4 KGS | ||||||
Packing & Delivery
New FAQ
Q1: Where is your Factory located? How can I visit your company?
A1: Our factory is located in Hangzhou City, Zhejiang Province of China.
From Shanghai, 1.5 hours by Train, 30mins by intercity high-speed rail.
From Shenzhen, 11 hours by Train,2 hours by Aircraft
Q2: Can I get some Samples for testing? Is it free?
A2:We are honored to offer you samples,but samples will be charged because of it's high value.
While to ensure the products are bought correctly and safely, we will offer online test for customers' evaluation.
Q3: Can you provide OEM service as per our request? Is it free?
A3: With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
Please consult the sales for detailed requirements.
Q4: What about your Warranty?
A4: All products has 5 years’ warranty.
We offer technical supports online/phone, repair services by our experienced after-sales specialist.
Service time: 9:00AM~23:59PM(GMT+8)
Q5: What is your Lead time and method of Shipment?
A5: All goods are in stock, just need 100% QC testing and Aging before sending out.
Usually it takes 3~7 working days after the full payment received.
Note:
1: There will be a little delay at busy season.
2: Sometimes the hot-sales products will be out of stock.
Q6: Your Method of shipment?
A6:Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-6 days from China to world,
we will choose the best way for you based on our history data, ensure the package will be received safely and smoothly.
Q7: What's your Payment method supported?
A7: We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram ,Alibaba Trade Assurance,etc.
Q8: Can I order Online(on alibaba website )?
A8:Firstly,make sure you have an alibaba account registered with your frequency-used email address.
Then find the product you want to order.Click the "Buy now" or "Start order" button.
Follow the steps alibaba guided or contact supplier directly for Guidance.
Q9:How can I Pay on Alibaba?
A9:You can pay whether to the appointed Citibank account by Bank Transfer or by Credit Card online.
Note: Credit card: Takes 2 days for the payment to be received. (MasterCard or Visa supported for now)
Citibank transfer: Takes 1~5 days for the payment to be received.
Why choose DTVANE
