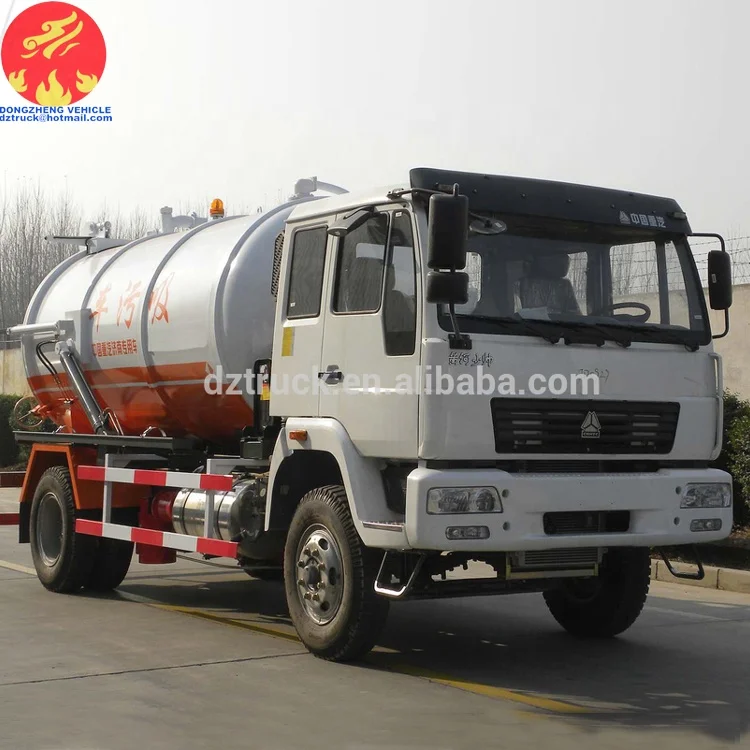

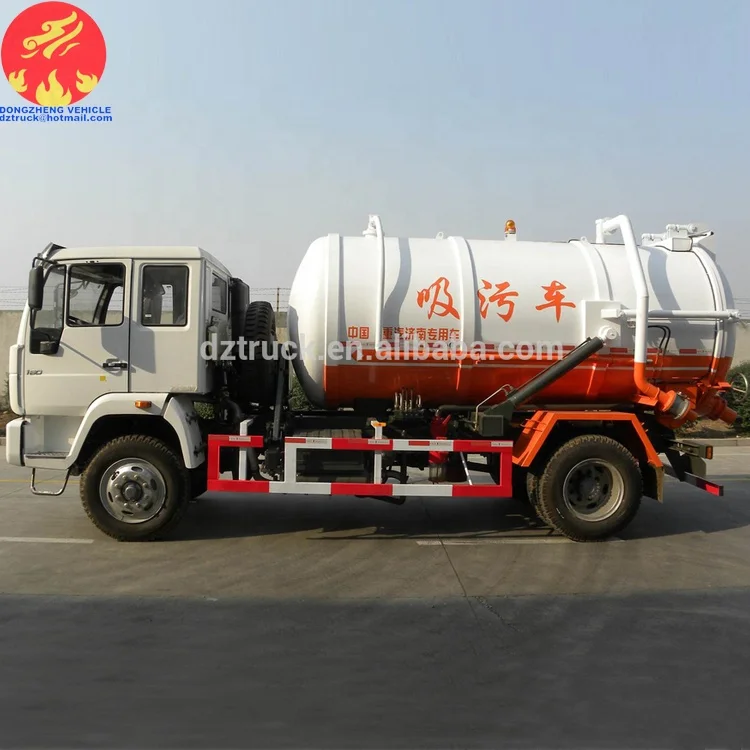

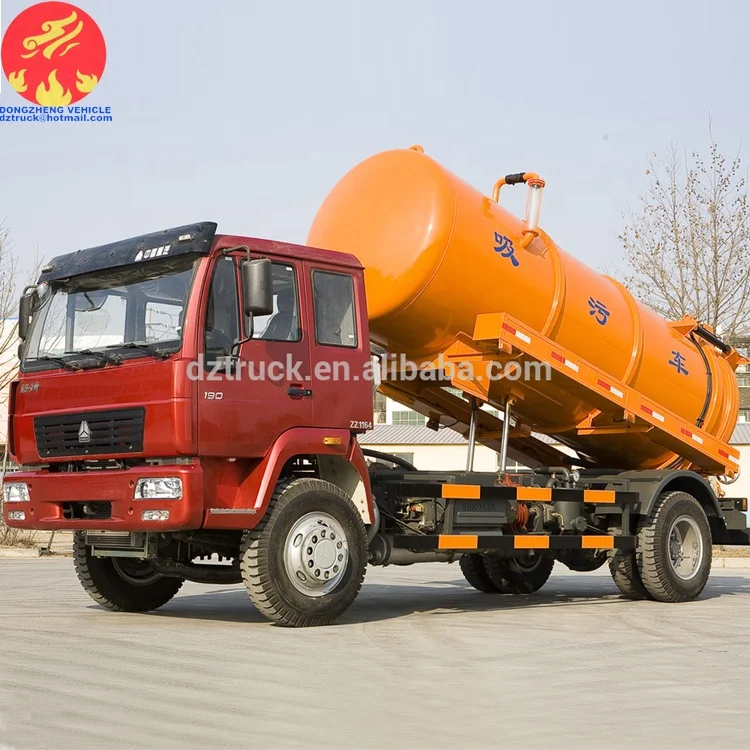

SINOTRUCK HOWO 10000L Sewage Suction Truck

we manufacture kinds sewage suction truck 2-18CBM,You have any enquiry of sewage suction truck,please contact us.

Main Feature of the sewage suction truck:

1,Adopt domestic advanced chassis that is safety and reliable.

2,The product have good performance of anti-corrosion after acid pickling and antiseptic treatment .

3,Import vacuum pump ensures well lubrication and low oil consumption with stable suction system.

4,There are three functions: vacuum suction, emission with pressure and natural discharge .

5,Novel piping design is convenient for installation and maintenance.

6,Overfill prevention device on the top of the tin make sure proper work.

7,Water marked tube can show the liquid level clearly.

Main Parameter of the sewage suction truck:

Vehicle model	SZD5160GXWD4
Tonnage	12Ton
Chassis model	ZZ1167
Maximum total mass	15990kg
Curb weight	7320kg
Load weight	8475kg
Effective volume	8.0m³
Dimensions	8055*2480*3300(mm)
Tank(length/diameter)	5150*Φ1650(mm)
Wheelbase	4500,4700,4950,4800,5100,3950mm
Front overhang	1250mm
Rear overhang	2305mm
Approach angle	32°
Departure angle	26°

Chassis Parameter of the sewage suction truck:

Model of Chassis	ZZ1167
Wheel Base	4500,4700,4950,4800,5100,3950mm
Front Track	1940,1900mm
Rear Track	1860,1800mm
Plate spring amount	9/10+8
Tire Type	10.00-20 16PR,10.00R20,9.00-20
Steering Gear Type	Steering Wheel
Axles Amount	2
Tire Amount	6
Fuel Type	Diesel
