ZLP630 ZLP800 ZLP1000 оборудование для очистки стеклоподъемника/подъемник/замок
- Категория: Рабочие платформы >>>
- Поставщик: Qingdao,Huizhi,Runde,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.18 $* | 0.49 $* |
| Aug-16-2025 | 0.31 $* | 0.29 $* |
| Jul-16-2025 | 0.10 $* | 0.12 $* |
| Jun-16-2025 | 0.25 $* | 0.9 $* |
| May-16-2025 | 0.25 $* | 0.31 $* |
| Apr-16-2025 | 0.26 $* | 0.69 $* |
| Mar-16-2025 | 0.66 $* | 0.56 $* |
| Feb-16-2025 | 0.82 $* | 0.26 $* |
| Jan-16-2025 | 0.97 $* | 0.22 $* |
Характеристики
hanging scaffold type
630
Product Description
Platform is an alternative to traditional scaffold , reduce labor intensity and improve work efficiency, and the new high operating equipment can be reused. Currently , the use of the gondola building has become a trend , has been widely recognized in the construction of high-rise multi-storey high building facades , and curtain wall installation , construction and maintenance of clean exterior insulation and other high-altitude operations.
At the same time can be used for large tanks , bridges and dams and other engineering operations. The use of this product , you can avoid scaffolding . So that greatly reduce the cost of construction , construction costs only 28 % of the traditional scaffolding , and a substantial increase in work efficiency. Suspended Platform flexible operation , the shift is easy, convenient and practical, safe and reliable.
Technical parameters
Name | Technical parameter | ||
Model | ZLP800 | ZLP630 | |
Rated load | 800Kg | 630Kg | |
Lifting speed | 8-10m/min | 8-10m/min | |
Platform Dimension L×W×H(mm) | 7500×720×1300 | 6000×720×1300 | |
Lifting Height | 100 m | 100 m | |
Cable | 100 m | 100 m | |
Steel rope (diameter) | 9.1mm | 8.3mm | |
Hoist | Power | 1.8KW*2 | 1.5KW*2 |
Voltage | 380V/50HZ | 380V/50HZ | |
Safety lock | Permission force of impact | 30KN | 30KN |
Locking Cable Angle | 3°~8° | 3°~8° | |
Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | |
Counterweight | 1000KG | 1000KG | |
20’ft container | 8 sets | 9 sets | |
Elevator:
Elevator | Model specifications | Lt8.0 | |
Rated lifting power/kn | 8 | ||
Electric motor | Power/kw | 1.5 | |
Voltage/v | 380 | ||
Rotating speed/(r/min) | 1400 | ||
Braking torque/(N.m) | 15 | ||
steel wrie rope:
Steel wrie rope | Diameter(mm) | 8.6-9.1 |
Tensile resistance | 1824-1888 | |
Breaking force(kn) | 32.3-40.5 |

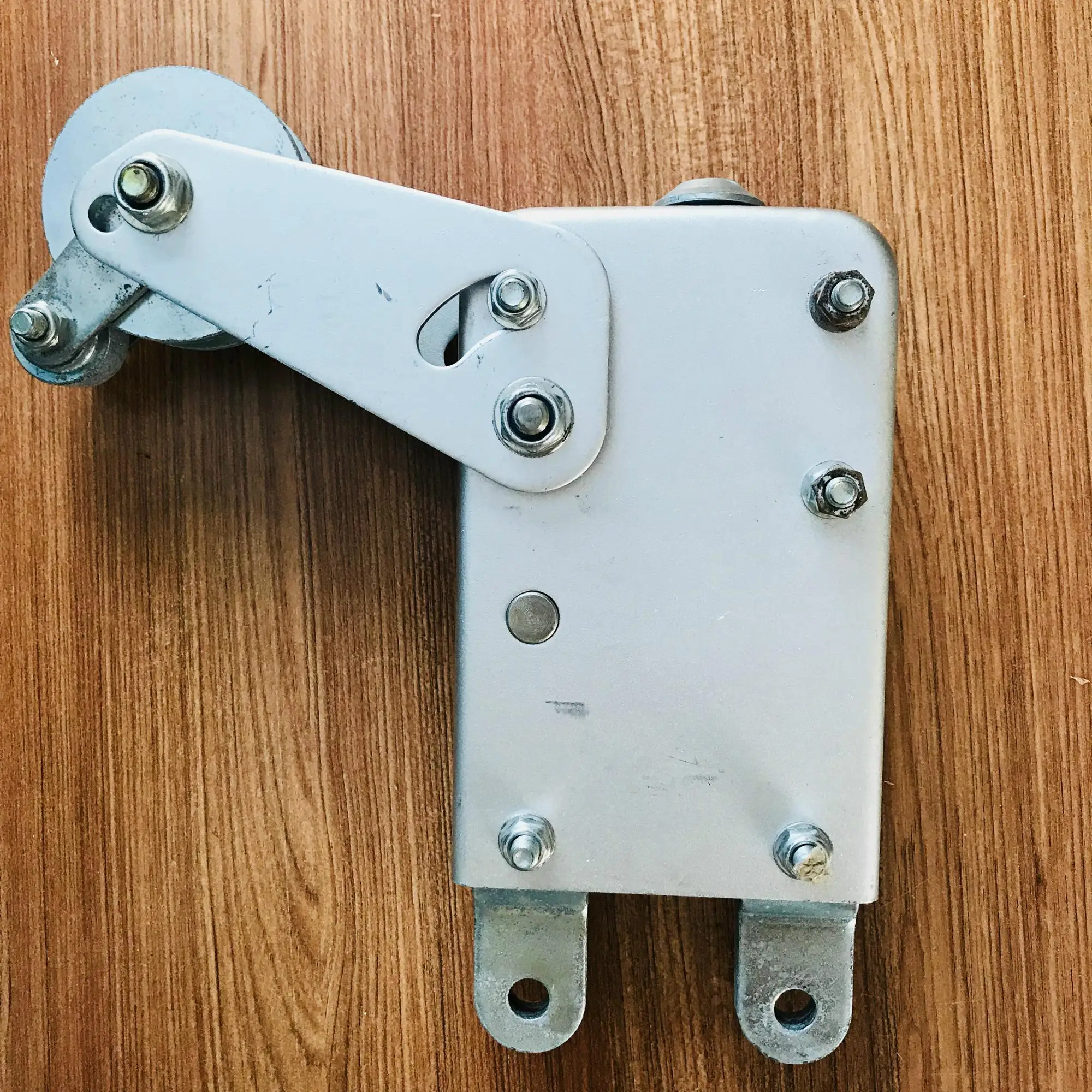

safe lock:
Safr lock | Impact force allowed/kn | 20 |
Locking cable angle | <=8 |
Techinical Parameter
1. Rated Loading Capacity: 630/800kg
2. Lifting Speed: 9-11m/min
3.Platform Dimension L*W*H: 6m*0.69m*1080/1180m
4.Lifting Height: 100m
5.Steel Rope: 8.3/8.6/9.1mm
6.Hoist Power:1 .5kw/1.8kw*2
7.Hoist Voltage: 220V/380V/415V
8.Safety Lock: LSF30
9.Permission Force of Impact: 20KN
10.Locking Cable Angle: 3-8
11.Counter Weight: 1000kg/1200kg

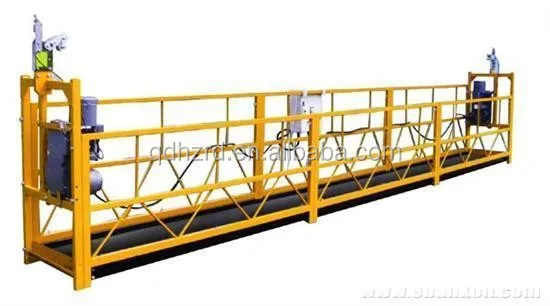

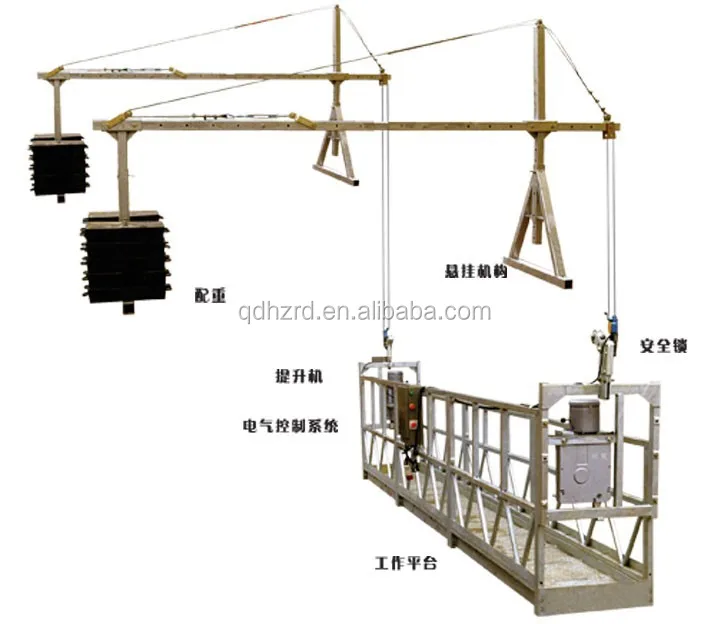

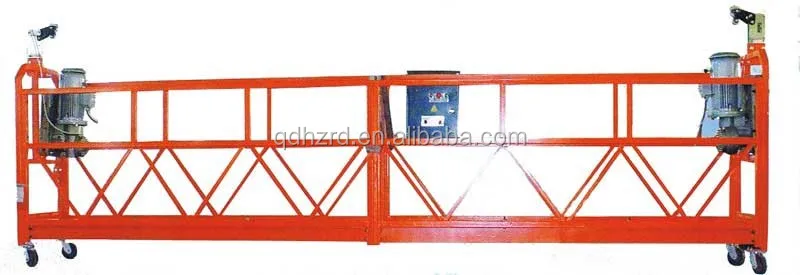

Roof Device & Suspended Platform

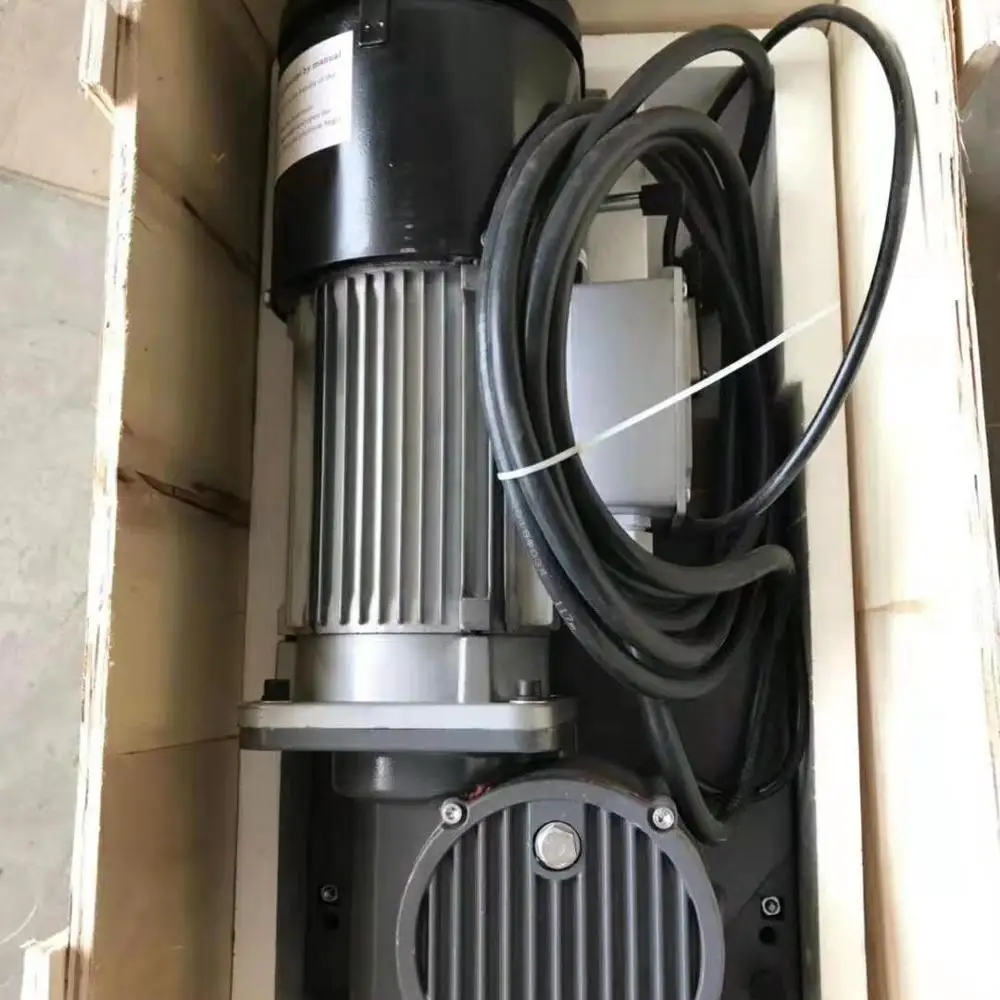

Hoist
Engineering Projects Show
Certifications
Packing
Components Spare Parts
Company Information
Qingdao Huizhi Runde International Trade Co.,Ltd, established in 2006 year, is professional in
production,sales and rental of temporary suspended platform in China.
As a market leader and key player in suspended platform&cradle sector, since its establishment, we
focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting
experience and know how in design and production of suspended platform and related components.
With technique creation, strict inspection,and perfect after-sales services, we are getting more and
more domestic and overseas market share.
Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist,
safety lock, electric control box and other parts. All these components are made in our factory by our
worker, it means stable and competitive quality, delivery and services.
Qingdao Huizhi Runde International Trade Co.,Ltd has advanced processing center, large
hydraulic&punching equipment. With technique creation, strict inspection,and perfect after-sales
services, we are getting more and more domestic and overseas market share, and bring more benefit
for our clients in the global.
Qingdao Huizhi Runde International Trade Co,Ltd are willing to make our world safe and
wonderful.
our company :
FAQ
1.Q:Are you a factory or trading company?
A:We are factory,passed CE,BV certification.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all
electrical Installation, water installation, civil foundation, training their people and proving that they will
get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine
configuration in order to get the production targets is the most important point. Even if somebody got the
cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and the
durability .so to cover the investment in the correct time.
If you are interested in our machine,or have any doubts,welcome contact us~~
