WEIHUA Hydraulic Electric Hoist Boat Lifting Gantry Crane 1000 tons
Weihua ProjectⅠ：Capacity 300T
Yacht Handling Tire Mobile Hoist, Model: MGK




Products Description

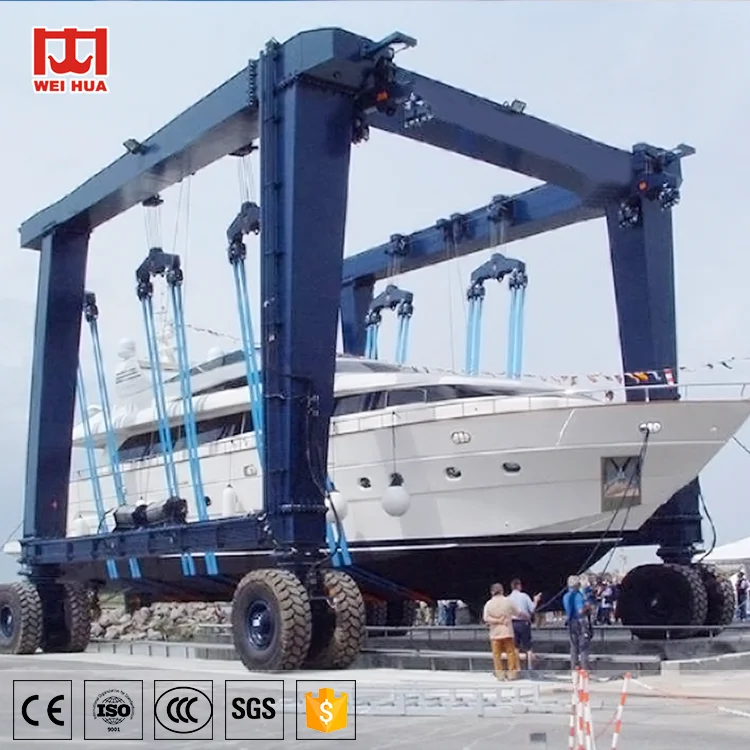

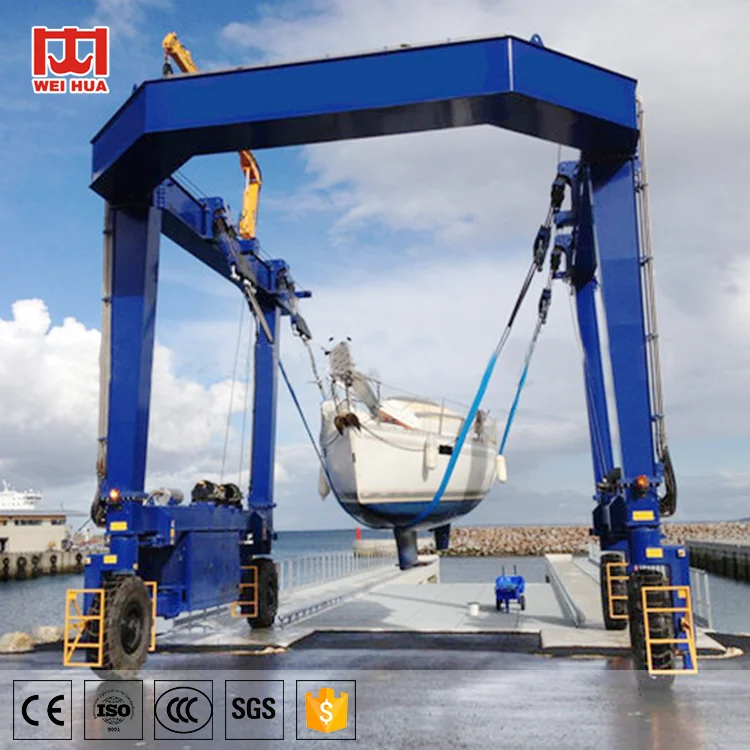

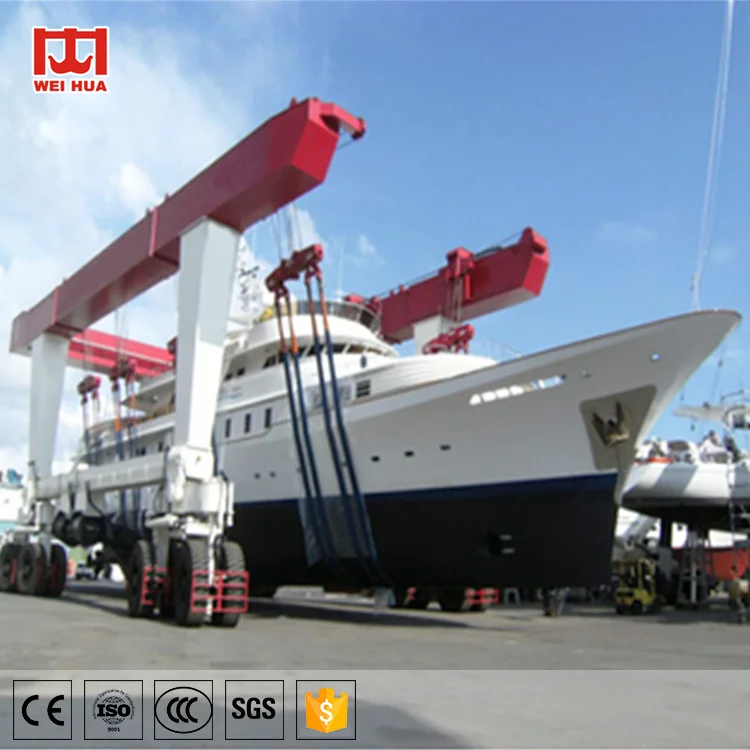

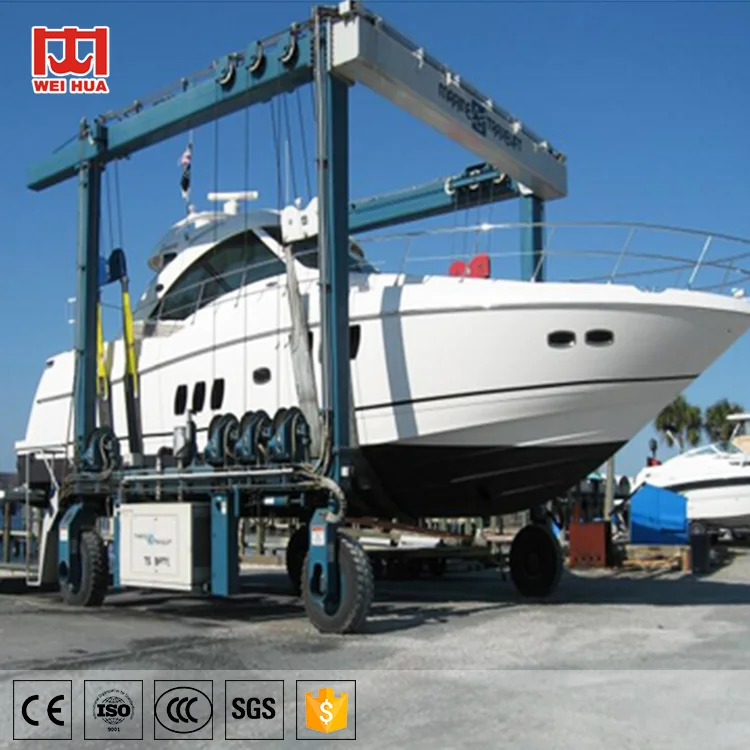

Yacht handling cranes, also known as boat handlers. It is widely used in water sports games, yacht clubs, navigation, shipping and learning, etc. It can transport different tonnage of boats or yachts from the shore dock for on-shore maintenance, repair or launching of new vessels.

The boat and yacht handling crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system and electric control system. The main structure is N type, which can transfer the boat/yacht with height surpass crane's height.

According to different requirements of our customers, the boat handling crane can handle different tonnage boats or yachts (10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat into the water. This yacht handling crane has soft and firm belt to lift the boat and yacht so that it will never hurt the surface. This crane also can put the boat in sequence quickly with small gap between each two boat.






Yacht Lift Crane Features:
1. For the crane traveling, this crane can move in diagonal direction, this boat and yacht handling crane also can steer in 90 degree and put the boat in any designated position according to requirements.
2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.
3. Low expense, high performance, easy to operate and maintenance and so on.
4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.
5. This boat crane can make the boat in order quickly; it also can adjust the gap between each boat according to different condition.






Sketch Drawing




Technical Parameters




Rated capacity
100
150
200
300
(kg/cm2)
Grounding specific pressure
11.5
11
11.5
6.5
(m/min)
Grade ability
2%
4%
4%
4%
(m/min)
lifting speed
Full load
0~2
0~1
0~2
0~1
Non-load
0~5
0~4
0~3
0~3
(m/min)
Running speed
Full load
0~20
0~20
0~20
0~20
Non-load
0~35
0~35
0~35
0~35
Working Ambient temperature
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃
-20℃~+50℃


Main Products




The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane, electric hoist, electric winch, mobile platforms and other types of hydraulic crane technical requirements.




Company Profile




Weihua Group was founded in 1988. After 33 years of development, it has developed products such as lifting machinery, port machinery, mining machinery,electric hoists, electric winch, parking equipment, special robots and other products.The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.




Packing and shipping




FAQ




Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: Remote control with push buttons B: cabin(space capsule seat) control with joystick.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
