ZHENLI горизонтальная машина для литья алюминия холодной камеры изготовления оборудования 130

Описание и отзывы

Трекер стоимости

Характеристики







Item	Unit	ZLC-130
Clamping Force	KN	1350
Die Stroke	MM	350
Die Thickness(Min-Max)	MM	200-500
Platen Size(HXV)	MM	630X680
Space Between Tie Bars	MM	410X410
Tie bar Diameter	MM	80
Intensification Injection Force	KN	180
Injection Force	MM	90
Injection Stroke	MM	320
Plunger Diameter	MM	40,50
Shot Weight	kg	0.7,1.15,1.65
Casting Pressure	Kgf/cm²	141,90,62
Casting area	cm²	90,140,205
Max Casting Area Under 40Mpa	cm²	362
Shot Injection Position	MM	0,-100
Plunger Penetration	MM	115
Ejector Force	KN	108
Ejector Stroke	MM	85
Hydraulic Working Pressure	Kgf/cm²	140
Driving Motor	HP/KW	15
Hydraulic Oil Tank Capacity	L	300
Machine Weight	KG	6000
Machine Dimensions(L x W x H)	MM	4100×1320×2650





 The die casting machine structure adopts 3-pull rod or C- shaped bracket plus hydraulic elevator device and satisfies requirements for moulds .

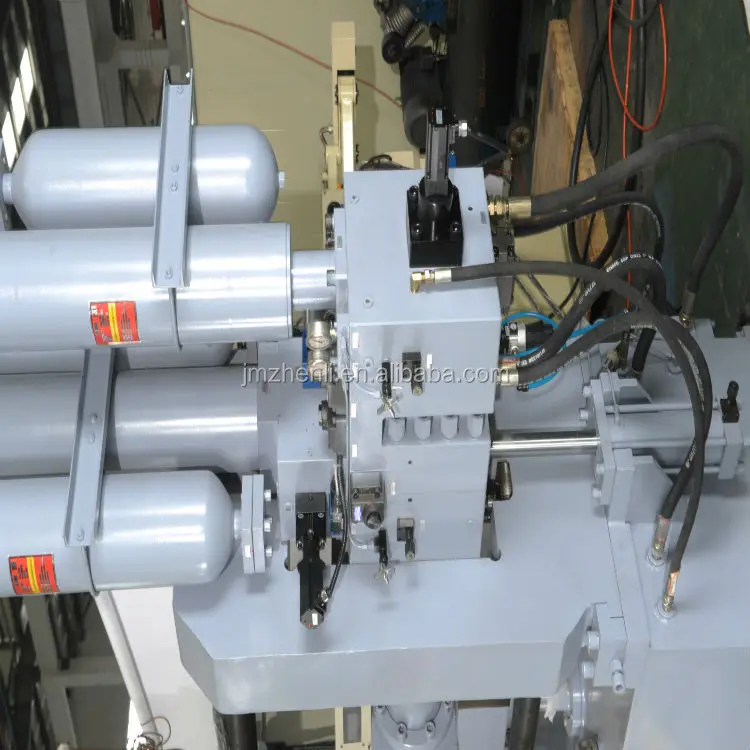

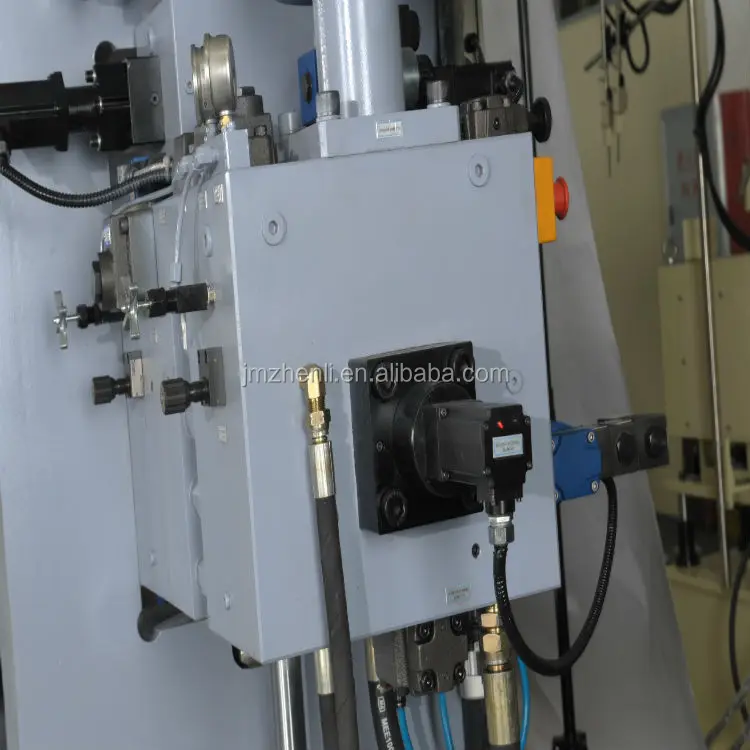

The injection system is equipped with large diameter logic valves and precise flow control valves,improves injection response,decreases oil pressure vibration and provides precise 4-stage shot adjustment.

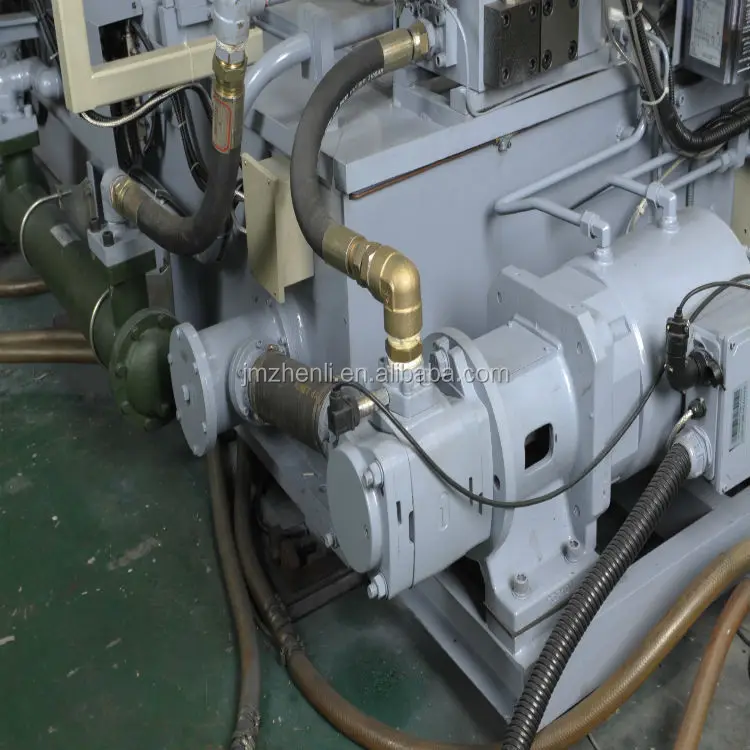

Adopts high and low pressure twin pump with high performance and low noise,saves energy consumption and improves production efficiency .


Adopts automatic concentrated lubrication system ,directly sets lubrication for times of machine operation and improves service life of the machine and decrease repair .



The planetary wheel system adopts oil motor to drive the gear mould adjusting machine structure which is easy to operate ;owns intelligent automatic mould adjusting program ,precisely calculates the mould locations ,which is convenient for mould replacing and improves efficiency .


The hydraulic ejector is convenient for control with adjustable ejecting speed .


The hydraulic main system adopts double proportional control ,which is convenient for adjusting the pressure and speed of every movement in the operation .The outlay precise suction filter ensures the hydraulic system of cleanness and decreases weariness of the hydraulic components .



Appliances control:
1.Adopts precise artificial intelligent computer control,can control and supervise the data
and  status of every movement,which is convenient for operation and maintenace .
2.The large screen LCD monitor can realize conversion between Chinese and English.
3.Its powerful memory can store 100 sets of moulding data ,such as the time,times,speed,pressure,traveling distance,mould thickness,options,etc
4.Has self-check and alarm functions to failures of computer hardware,and display function of mechanical failures,which is convenient for mechanical failure removal .
5.Mould closing adopts high precision E-ruler positioning test,which can control the precise distance to 0.1mm.
