Потолочная решетка жалюзи системы
- Категория: Системы ОВКВ и запчасти >>>
- Поставщик: Foshan,Vairtech,Ventilation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 11.32 $* | 11.96 $* |
| Jul-16-2025 | 9.0 $* | 9.4 $* |
| Jun-16-2025 | 11.98 $* | 11.68 $* |
| May-16-2025 | 11.42 $* | 11.79 $* |
| Apr-16-2025 | 9.31 $* | 9.20 $* |
| Mar-16-2025 | 11.70 $* | 11.17 $* |
| Feb-16-2025 | 11.71 $* | 11.69 $* |
| Jan-16-2025 | 11.54 $* | 11.56 $* |
Характеристики
Product Description
Product Name | hvac system ceiling eggcrate return air grille |
Material | aluminum alloy |
Function | wall&ceiling |
HS CODE | 7616999000 |
Description:
The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
Aluminum eggcrate grid is fixed to the outer frame by hinges on one side and by screw on the other side. Core can be easily open to allow for maximum flexibility in the installation, maintenance.
Rigid construction provide noiseless performance.
It is designed for return and exhaust application for air conditioned space.
The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
Aluminum eggcrate grid is fixed to the outer frame by hinges on one side and by screw on the other side. Core can be easily open to allow for maximum flexibility in the installation, maintenance.
Rigid construction provide noiseless performance.
It is designed for return and exhaust application for air conditioned space.
Any size available
Overall face size = Neck size + 55mm
Standard size (Neck size=A)
Item Code | Neck Size(mm) | Face Size(mm) |
EG-H-225x225 | 225x225 | 280x280 |
EG-H-300x300 | 300x300 | 355x355 |
EG-H-300x600 | 300x600 | 355x655 |
EG-H-375x375 | 375x375 | 430x430 |
EG-H-450x450 | 450x450 | 505x505 |
EG-H-540x540 | 540x540 | 595x595 |

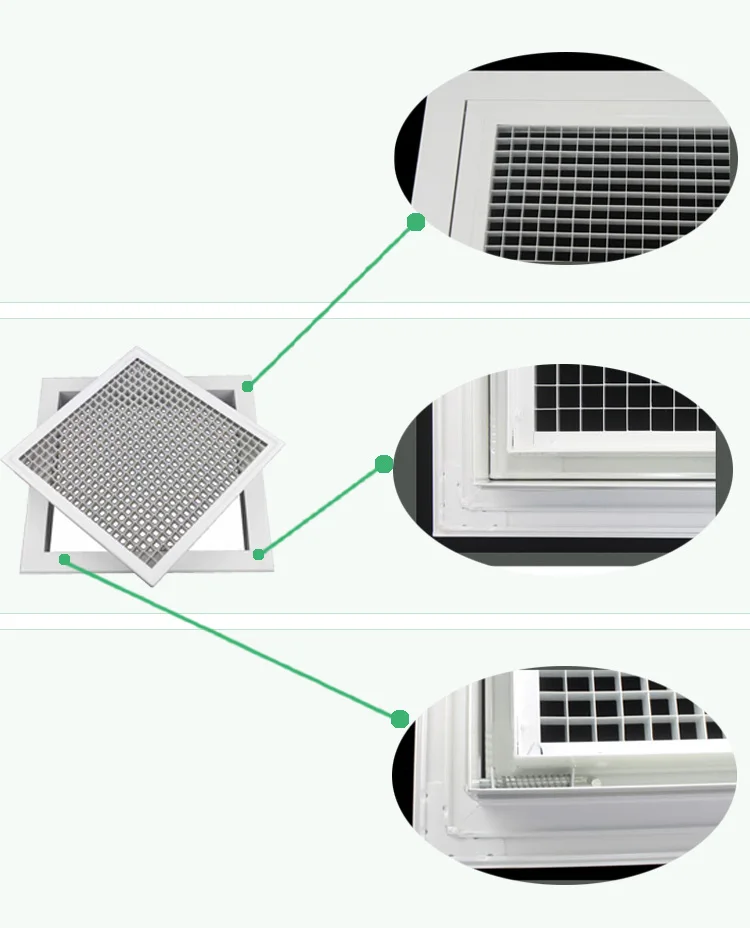

Details Images
Advantage
Packing&Shipping
1. Plastic corner protection; 2. Inner PVC bag packed;
3. Outer strong carton; 4. Extra pallet for option.
