Thanks for choosing HITECH ELEVATOR as your business partner

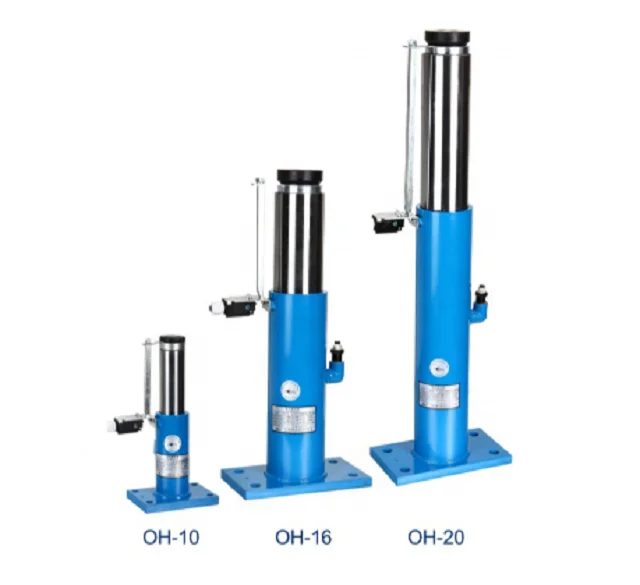

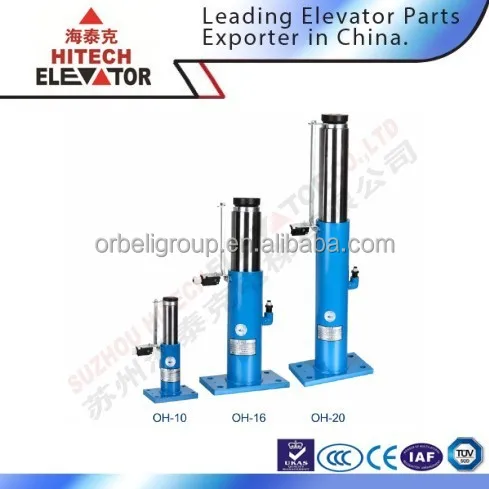

ELEVATOR HYDRAULIC BUFFER







HI-OH10/16/20 series are spring built-in hydraulic buffers, and are used at the bottom of the shaft, If the elevator gets out of order and slides down, it will take the decelerating effect, and the knockout rod will trigger the switch, and then the safety circuit is enabled.



Rated speed: v ≤1.0m/s

Buffer weigh range: 300kg~2500kg

Pillar gully routing(S):  100mm

Free State (L): 388mm

a*b (mm):150*90

A*B (mm):150*90

ΦC (mm): 14

Hydraulic oil brand: HL-46

Oil is needed: 0.48L





Type	Rated Speed	Buffer weight range	Pillar guly riuting	Free state	a×b(mm)	A×B(mm)	ΦC(mm)	Hydraulic oil brand	Oil is needed
OH-10	≤1.0	300~2500	100	388	150×90	150×90	14	HL-46	0.48
OH-16	≤1.6	700~5300	175	625	210×100	270×150	18	HL-46	1.7
OH-20	≤2.0	1000~5300	290	915	210×100	270×160	18	HL-46	2.6





Porducts can be packed in wooden cases and carton box
