Китайский лучший бренд HYSOON Мини-погрузчик с бортовым поворотом
- Категория: Loaders >>>
- Поставщик: Evangel,Industrial,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.84 $* | 0.56 $* |
| Aug-18-2025 | 0.94 $* | 0.17 $* |
| Jul-18-2025 | 0.70 $* | 0.92 $* |
| Jun-18-2025 | 0.47 $* | 0.84 $* |
| May-18-2025 | 0.71 $* | 0.17 $* |
| Apr-18-2025 | 0.45 $* | 0.91 $* |
| Mar-18-2025 | 0.6 $* | 0.37 $* |
| Feb-18-2025 | 0.92 $* | 0.75 $* |
| Jan-18-2025 | 0.51 $* | 0.28 $* |
Характеристики

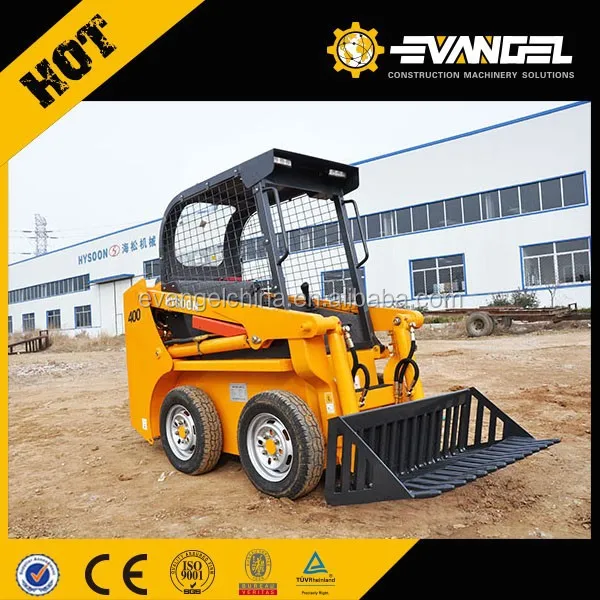

China Top Brand HYSOON Mini Skid Steer Loader HY400
Feasures
HYSOON L oader -HY400
HY400 mini skid steer loader possesses greater operating, tipping capacities, and dump height
Rated power:31hp engine :(diesel ) total width:960mm operating weight :400kg
Parameters
ITEM | HY400 | |
Metric system | English system | |
Max working eight(H3) | 2671mm | 105.2inch |
Max pin height(H2) | 2293 mm | 90.2inch |
Max dumping height(H1) | 1703 mm | 67inch |
Max Dumping distance(L3) | 315 mm | 12.4inch |
Max Dumping Angle(θ) | 41 ° |
|
Rollback of bucket on ground (α) | 24 ° |
|
Departure angle(γ) | 24° |
|
Total height(H) | 1766 mm | 69.5inch |
Ground clearance(F) | 155 mm | 6.1inch |
Wheel base(L) | 800 mm | 31.5inch |
Overall length without bucket(L1) | 2028 mm | 79.8inch |
Total length(L) | 2635 mm | 103.7inch |
Total width (W) | 960 mm | 37.8inch |
Bucket width(K) | 930 mm | 36.6inch |
Model | HY400 | ||||||
Engine | Rated power(KW) | 22.8KW(31HP) | |||||
Rated speed(rpm) | 2200 | ||||||
Hydraulic system | Hydraulic pressure(Mpa) | 17 | |||||
Cycle time(s) | Raise | dump | Lower | ||||
3.8 | 3.6 | 1.34 | |||||
Technical Parameter |
| Metric system | English system | ||||
Operating weight | 1400Kg | 3084Lb | |||||
Operating Load | 400Kg | 880 Lb | |||||
Bucket Capacity | 0.196 m3 | 6.9 ft3 | |||||
Max Lifting Force | 800 Kg | 1760Lb | |||||
Hydraulic oil tank volume | 36L | 162.6 gal | |||||
Diesel tank volume | 36L | 162.6 gal | |||||
Speed | 0-8 km/h | 0-4.95 km/h | |||||
Tire | 6.50-18(φ570*154) | ||||||
