Промежуточный чертеж проволочной машины/чертеж с отжигом
- Категория: Проволочноволочильные станки >>>
- Поставщик: Zhangjiagang,Chengjun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 68015.27 $* | 69375.81 $* |
| Jul-16-2025 | 55162.0 $* | 56265.20 $* |
| Jun-16-2025 | 66944.17 $* | 68283.50 $* |
| May-16-2025 | 66408.31 $* | 67736.65 $* |
| Apr-16-2025 | 53019.20 $* | 54079.25 $* |
| Mar-16-2025 | 65337.73 $* | 66644.86 $* |
| Feb-16-2025 | 64802.17 $* | 66098.2 $* |
| Jan-16-2025 | 64266.50 $* | 65551.82 $* |
Характеристики

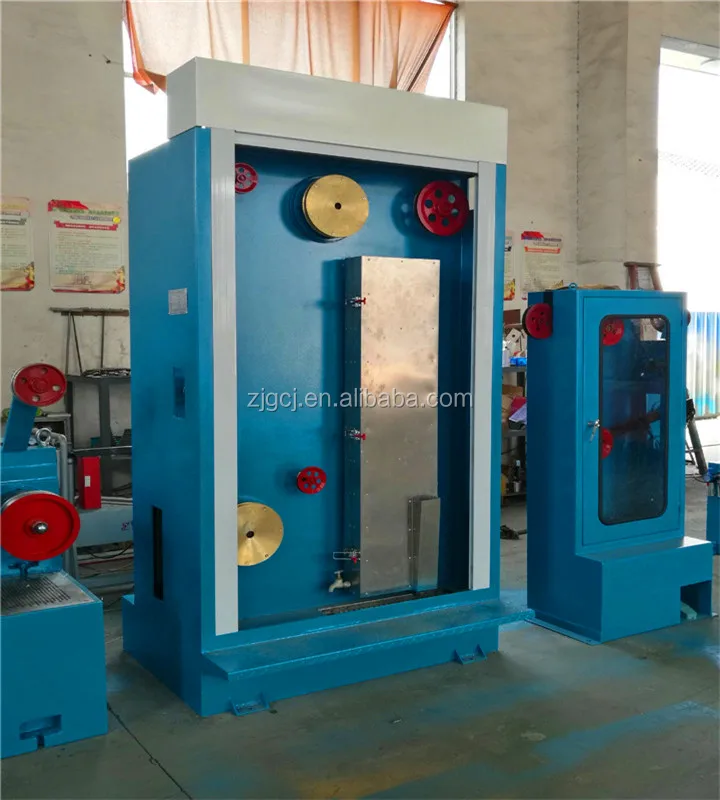

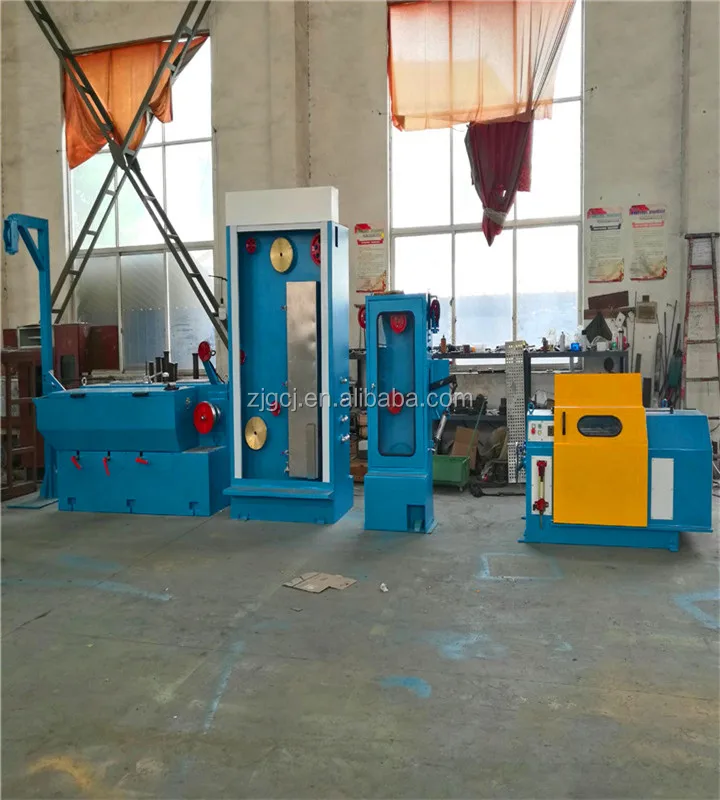

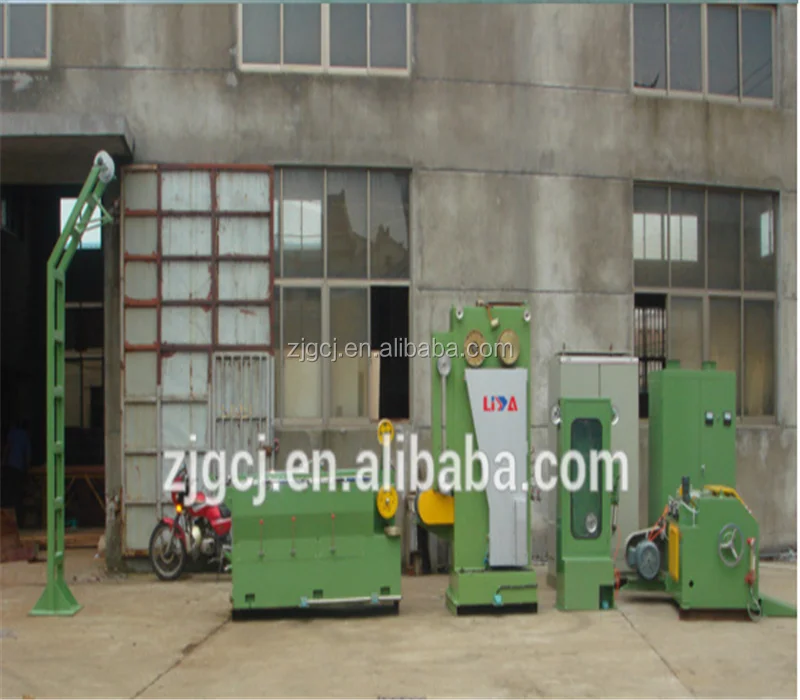

Intermediate 11d wire drawing equipment with annealer
Usage:
The wire drawing with annealing machine is used for drawing wire from diameter 3.00-3.50mm to 0.80-2.76mm, and for annealing the wires at the same time.
Technical Parameter:
Machine Type | 11DT |
Inlet Diameter(mm) | Ø3.00- Ø3.50 |
Outlet Diameter (mm) | Ø0.80-Ø2.76 |
Max. Drawing Speed (m/min) | 900 |
Max. Drawing Dies No. | 11 |
Slip Ratio of m/c | 19.50% |
Fix Speed Capstan Slip Ratio | 16.50% |
Capstan | Tungsten |
Max. Capstan Dia. (mm) | Ø280 |
Fix Speed Capstan Dia. (mm) | Ø 280 |
Frame | Welded, Two Conjunctions |
Main Motor | 55KW AC Motor |
Spooler Motor | 15KW AC Motor |
Revise System | PID synchronous Spooler |
Inverter Control | DC Speed Regular Control + Dual Inverter Control |
Transmission | Gear |
Send-Out Method | Over Head |
Traversing Unit | Wire Rod |
Tension Control | Pneumatic Balance by Swing Arm |
Lubrication | Immersion + Spay |
Suitable Dia. of Spool (mm) | PND630 |
Capacity for Wire Receiving (KG) | 500 |
Power Source | 380V |
Brake | Electromagnetic |
