Характеристики
Gas booster pump
Compressed Air Driven Gas Booster Pump- DGA/DGD/DGT Series
Suncenter Air Driven Gas Boosters provide for pressures up to 80Mpa (11,600 psi). Used for virtually all known gases, these boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging. Key features include:
Compressed Air driven - no electricity required (connect to normal air compressor)
In order to extend the lifetime of the pump, the driving air pressure should
not be higher than 8 bar
No airline lubricator required
Hydrocarbon free - separation between air and gas sections
Pressures to 80Mpa (11,600 psi)
Wide range of models with different ratios
Built-in-cooling on most models
Easy to install, operate and maintain
Best price / performance ratio
No heat, flame or spark risk and explosion proof
Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant
Applicable gas:Air/Ar(Argon)/He(Helium)/H2(Hydrogen)/O2(Oxygen)N2(Nitrogen)
CO22/CH4/C2H2/LNG/LPG/CNG/FM200/SF6/H2S etc
In order to extend the lifetime of the pump, the driving air pressure should
not be higher than 8 bar
No airline lubricator required
Hydrocarbon free - separation between air and gas sections
Pressures to 80Mpa (11,600 psi)
Wide range of models with different ratios
Built-in-cooling on most models
Easy to install, operate and maintain
Best price / performance ratio
No heat, flame or spark risk and explosion proof
Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant
Applicable gas:Air/Ar(Argon)/He(Helium)/H2(Hydrogen)/O2(Oxygen)N2(Nitrogen)
CO22/CH4/C2H2/LNG/LPG/CNG/FM200/SF6/H2S etc
Applications for Air Driven Gas Boosters
SUNCENTER Air Driven Gas Boosters provide for pressures up to 80Mpa. Used for oil free compression not only of air or Nitrogen, but also flammable and risk gases like hydrogen, oxygen and natural gas. These boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging.
Air driven boosters are an efficient alternative instead of electrically driven products and can be used in explosion- proof areas.
As a result of the wide range of models it is possible to select the optimum booster for each application. Single stage, double acting or two stage boosters or a combination of these models can be used to achieve different operating pressures and flow capacities.
SUNCENTER Air Driven Gas Boosters are ideal and widely used for hydrostatic and burst testing for valves, pipes, tubing and pressure vessels; Calibration for safety valves; Automobile regulator detecting and telecommunication cable inflatable appliances.
Pressure test with gas/air
Gas transfer and filling
(Air/Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Nitrogen gas spring charging
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting
Gas transfer and filling
(Air/Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Nitrogen gas spring charging
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting
DGA pumps are available with high quality seals, which provide significantly better service life as well. Pump head fitted with exhaust cooling devices. All parts in contact with the gas are made of stainless steel.
Technical specification for DGA Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
DGD series gas booster pumps(Double acting ):
DGD series pumps are double acting, with single air driven heads type.
DGD pumps are available with high quality seals, which provide significantly better service life
Double pump heads with exhaust cooling devices.
All components in contact with the gas are made of stainless steel.
Pipes mounting way are available as customized.
DGD pumps are available with high quality seals, which provide significantly better service life
Double pump heads with exhaust cooling devices.
All components in contact with the gas are made of stainless steel.
Pipes mounting way are available as customized.
Technical specification for DGD Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
2DGD series gas booster pumps(Double acting, double air driven heads ):
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
DGT series gas booster pumps(Double acting, double stage, single air drive head ):
DGT pumps are double acting, double stage with single air drive head pumps. They can provide for super high pressure with very low inlet pressure.
DGT pumps are available with high quality seals, which provide significantly better service life
All parts in contact with the gas are made of stainless steel.
All parts in contact with the gas are made of stainless steel.
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
2DGT series gas booster pumps(Double acting, double stage,double air driven heads ):
Technical specification for DGS-2DGT series:
Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure
In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 bar
How to Select Suncenter Air Driven Gas Boosters/Systems?
In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 bar
How to Select Suncenter Air Driven Gas Boosters/Systems?
In order to choose suitable booster pump or systems for you,
please kindly reply us the following questions:
1.What is your present gas pressure?( )bar
2.What is your gas?oxygen gas,nitrogen gas or other gases?
3.What outlet gas pressure do you want?( )bar
4.What driven air pressure (of your air compressor) can you offer?( )bar,
because our booster is completely air operated and no need any electricity
5.What outlet gas flow rate do you need?( )L/min

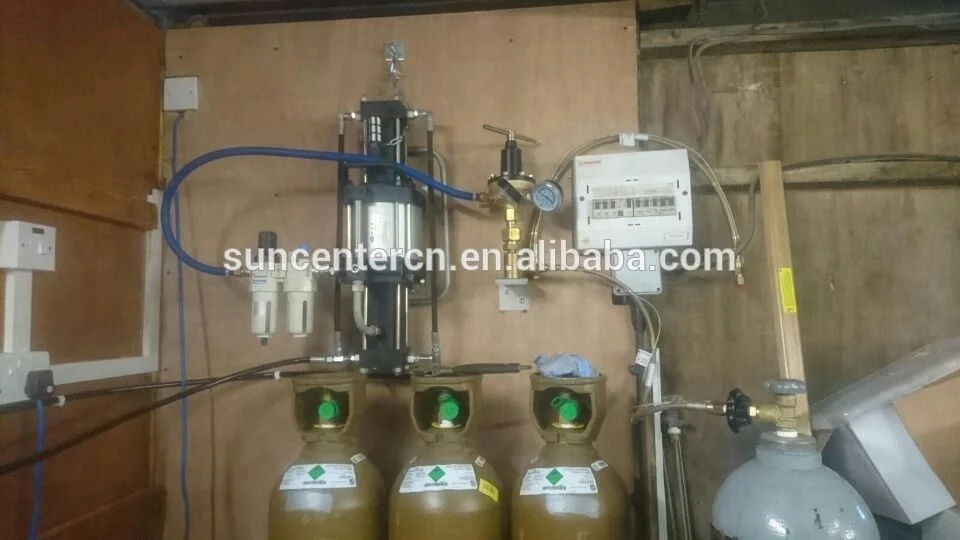

DGT series gas booster working picture

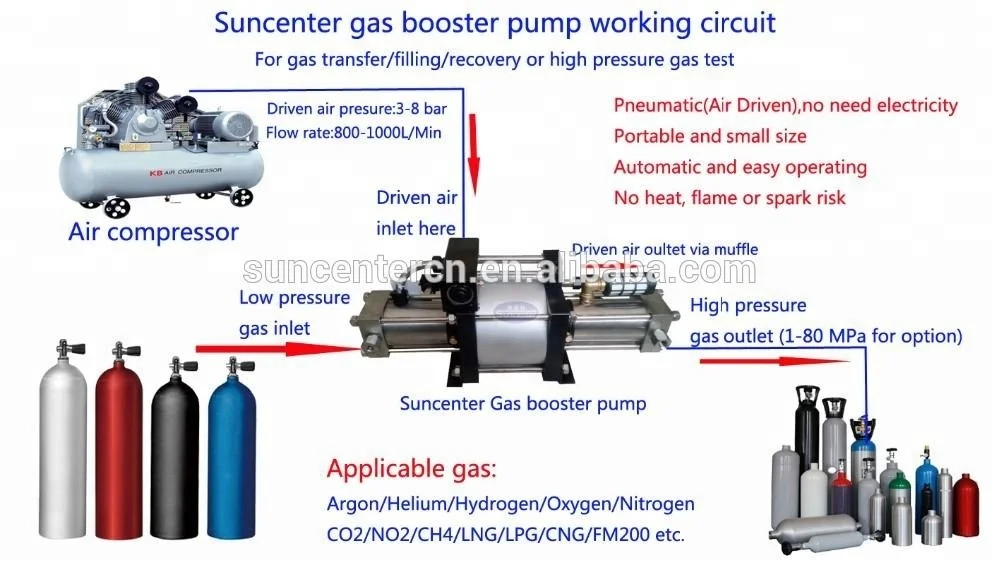

Gas pressure booster for cylinder transfer and filling
