Specification of fish finder:

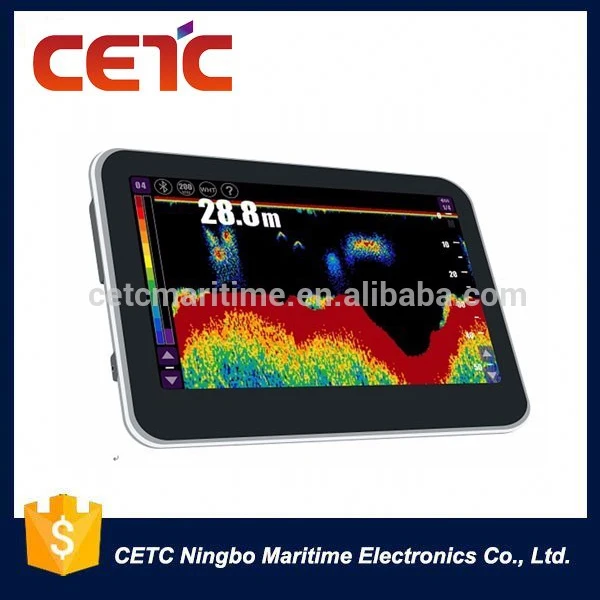

Pad echo sounder simple- touch operation fish finder



PAD fish finder is one kind of new-type fish finder with simple- touch operation to display fishing images on Android PAD / phone through Bluetooth transceiver transferring fishing signal to Pad / phone.It is a fishing echo presentation with high stability and sensitivity to effectively remove noise and disturbance, waterproof and dustproof. Meanwhile,due to high cost-performance and good user experience, PAD fish finder is applied in professional and amateur fishing lovers.







FEATURES



10.4 inch color TFT LCD



Relative/True wind direction & speed



temperature, humidity and air pressure



Alarm of wind speed/temperature/humidity



Data print out with printer DUP-414 (optional)





ITEM	SPECIFICATIONS
Display	Usd in Android system and mobile phone screen
Resolution	Phone:1280×720,1920×1080 Pad:1280×800,1920×1080,2560×1440
Working Frequency	50kHz,200kHz
Output Power	300W
Color Matching	Rainbow,Red-blue,Yellow-black
Mode	A-Scope,Bottom Lock
Water Temperature	-5°C ~ +50°C
Range	Manual 2-400m,Auto
Gain	Manual 0-40Level,Auto
Bluetooth Distance	40m
Alarm	Fish school alarm,3 Levels
Language	S-Chinese,T-Chinese,English,Norwegian
Working Temp	-15°C ~ +55°C
Waterproof	Fishing Box IP65
Power	10~32VDC 3W
