2U 14 слотов для карт оптоволоконный медиа-конвертер 19-дюймовую стойку

2U 14 слотов для карт оптоволоконный медиа-конвертер 19-дюймовую стойку

Категория: Fiber Optic Equipment >>>
Поставщик: Shenzhen,E-Linkchina,Technology,Co.,Ltd.

Цена:75,00 $ - 108,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	95.84 $*	97.31 $*
Jul-18-2025	77.54 $*	79.20 $*
Jun-18-2025	94.76 $*	96.75 $*
May-18-2025	93.3 $*	95.22 $*
Apr-18-2025	74.59 $*	75.41 $*
Mar-18-2025	92.52 $*	94.84 $*
Feb-18-2025	91.10 $*	93.43 $*
Jan-18-2025	90.7 $*	92.70 $*

Характеристики

LNK-R14 Media Converter Rack

Product Description

Product: LNK-R14

LNK-R14-02 LNK-R14

Model: LNK-R14

Overview

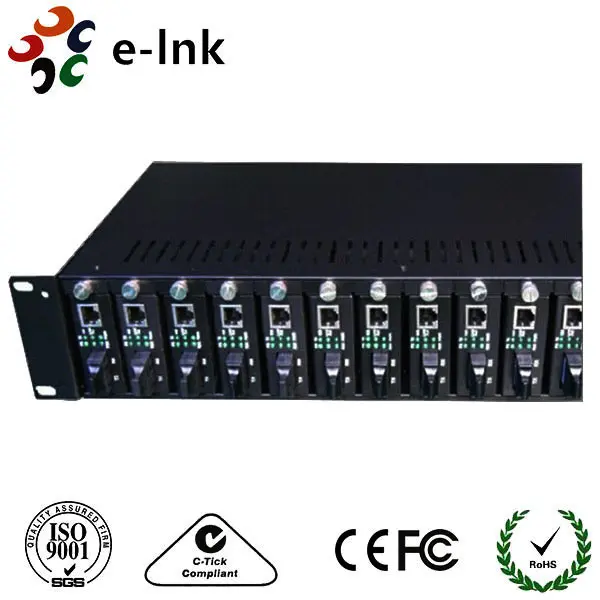

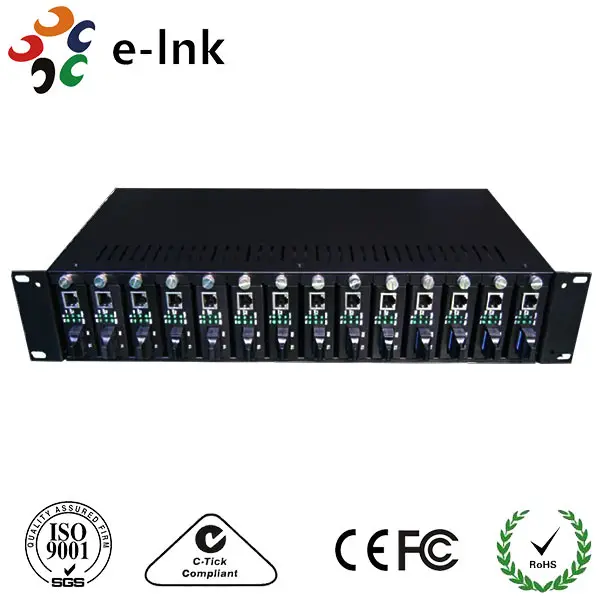

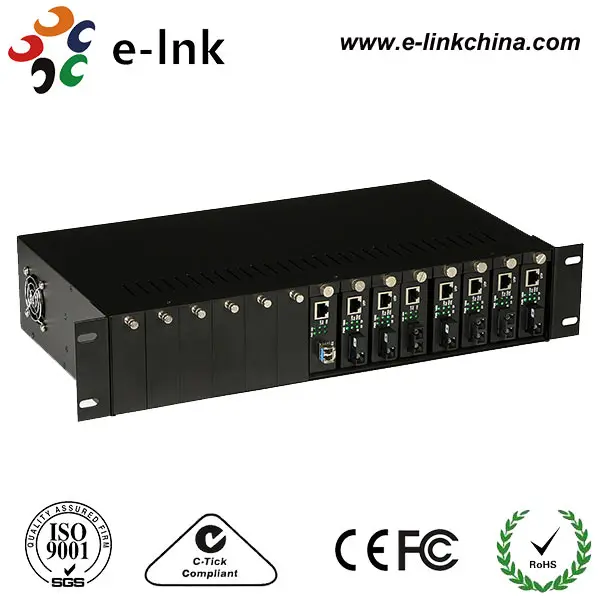

LNK-R14 is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different types of module type media converter developed by our company can be inserted into this rack, which total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.

Features

The configuration of active/standby power supply ensures uninterruptible operation of the system.
Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;
Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;
Supports hot swapping;
Applicatory module types: LNK-1100 series, LNK-2100 series, and LNK-3011 series, LNK-1020 series, LNK-2020 series

Application

Technical Indexes

Parameter	Specifications
Number of slots	14
Structure	2U rack
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC -36~72V
Power output	DC5V 16A
Ripple	≤20 mv
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	95W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Ordering Infomation

Rack
LNK-R14-1-A	14-slot, single power supply-AC220V-19''2U-blue-for converter card
LNK-R14-2-A	14-slot, dual power supply-AC220V-19''2U-blue-for converter card
LNK-R14-1-D	14-slot, single power supply-DC-48V-19''2U-blue-for converter card
LNK-R14-2-D	14-slot, dual power supply-DC-48V-19''2U-blue-for converter card

LNK-R14D-1-A	14-slot, single power supply-AC220V-19''2U-silver-for converter card
LNK-R14D-2-A	14-slot, dual power supply-AC220V-19''2U-silver-for converter card
LNK-R14D-1-D	14-slot, single power supply-DC-48V-19''2U-silver-for converter card
LNK-R14D-2-D	14-slot, dual power supply-DC-48V-19''2U-silver-for converter card

Company Information

Established in 2001& headquartered in Shenzhen, E-link China Technology Co., Ltd.(E-link) is a leading Power Line Communication, Fiber Optic Communication and CCTV Security Transmission product manufacturer in China. Our main products include active equipments including powerline network adapters, fiber media converters, CCTV fiber converters, CCTV over Ethernet Converters (HD-SDI over Ethernet, HDMI over Ethernet, Power over Ethernet), etc. With rich experience in providing high quality products in telecom and CCTV business, E-link has a large manufacturing base in Shenzhen, able to deliver cost-effective solutions to serve our customers successfully.

E-Link Quality:

• ISO9001 Quality System

• Full-Spectrum environment and electrical testing of all product design

• 48 hours aging test before delivery

• Qualified CE, RoHS, FCC

Since the launch of our products on the domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security, Bank ,ect. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.

Our knowledgeable sales, technical support and engineering staff are dedicated to understanding your requirements and designing products & solutions to meet your needs. We shall be pleased to provide you fiber optical network products with our best price, superior quality and fast delivery.

.jpg

Payment

FAQ

FAQ:
1. What is the warranty on the parts you sell?
All parts sold by E-link China meet all of the manufactures specifications and carry one year warranty. Some customized products could carry up to three years warranty.
2. What payment methods do you offer?
We accept payment via T/T, Western Union, MoneyGram and PayPal;
3. What is your minimum order?
To achieve customers' satisfaction, we accept sample order, even one Piece.
