Автоматическая Машина для мойки стеклянных бутылок

Описание и отзывы

Трекер стоимости

Характеристики

automatic glass bottle washing recycling machine for wash line

More info pls contact Denise at 0086-13863682769

This is one of our customer bottling line with washing machine. We were installing

the line to test each machine's performance before shipment.

bottle washing machine application photo

This automatic bottle washer could rinse different kinds of bottles,and can rinse bottle

inside and outside.

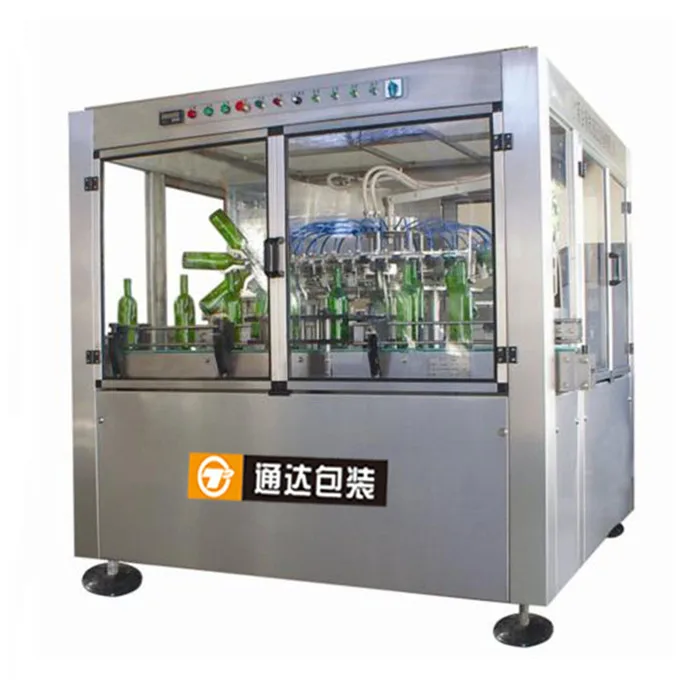

bottle washing machine photo

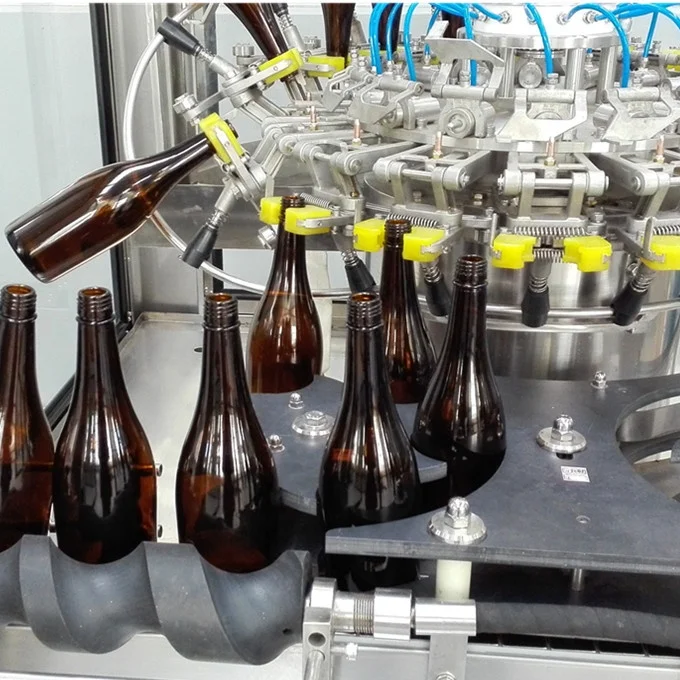

bottle washing inside and outside               endless screw                     bottle feed-in wheelsrar

Customer Visiting

Our bottling equipments are exported to many countries in the world. You are

welcome to visit our factory, and you can find how quality our machines are, and

how good our service is!

bottle washing machine features

      1.Fast bottle washing speed

The bottle washing speed of this machine gets to 3000 bottles per hour,which can save more time

and labor

      2. High working efficiency

It uses the frequency conversion speed regulation,and you can adjust speed accroding to the

production scheduling at any time.

      3.Less water consumption

It has the flushing channel,which can save water.

     4.Rinsing thoroughly

The time of washing and empting bottles is tightly controlld by shunt valve. The bottle is rinsed

thoroughly, and there is no water after empting bottle.

     5.Simple operation

It is fully automatic, and easy to regulate if any need.

     6.Large range of application

It is suitable for a majority of regular bottles except for some special shaped bottles.

     7.High quality clamp

The high quality clamp ensures safe working and long time usage.

     8.There is limited stoppers/restrainers on each part,and it can protect the machine whenever

the machine stopps by failure.

bottle washing machine main parameter

Model	Technical Parameter
	Filling Heads	Output	Main Motor Power	Lifting Motor Power	Bottle Height	Bottle Dia.	Water Consumption	Dimension
	pcs	bottles/hour	kw	kw	mm	mm	m3/h	mm
GCP-16	16	3000	1.5	0.37	140-360	≤100	0.7	1550x1430x1900
GCP-30	30	5000-8000	2	0.5			2.1	2200x2000x2100



Our packaging method is standard export wooden case,and stretch film for inner

packaging.



The sample service:

1.We can send you the video of the running machine.

2.You are welcome to come to visit our company,and see the machine running in our factory,

we can pick you up from the station near our city.

3.If we get the permission of the customer who has brought the machines from us,we can tell

you our customers' contact imformation,you can go to vist their factory.

Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds

of the bottles,and so on),at the same time we will give you our professional suggestion,as you

know,we have been in this industry for many years.

2. We can offer free technical support and consultation such as design your factory,draw the

factory layout and so on.

During the production: we will cooperate with buyer and update the manufacturing process and

status to buyers, and we will invite buyer come to test the machine when the goods finishes in our

factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and

send to buyer, the purpose is that the buyer could inspect the machine.

After sales: We will send technicians overseas, commissioning, and operator training; Our warranty

period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the cost price of spare parts.
