Подвесной Потолочный бумажный гипсокартон
US $1.95-$2.75
Декоративная гипсовая потолочная доска стандартных размеров для строительства и
- Категория: >>>
- Поставщик: Guangzhou,Zhonglian,Building,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.74 $* | 1.57 $* |
| Jul-15-2025 | 1.55 $* | 1.63 $* |
| Jun-15-2025 | 1.98 $* | 1.19 $* |
| May-15-2025 | 1.56 $* | 1.15 $* |
| Apr-15-2025 | 1.34 $* | 1.30 $* |
| Mar-15-2025 | 1.46 $* | 1.13 $* |
| Feb-15-2025 | 1.29 $* | 1.22 $* |
| Jan-15-2025 | 1.32 $* | 1.58 $* |
Характеристики
We use to load the powder compound and steel profiles to fill up the empty
space in container to make the freight cost more effective

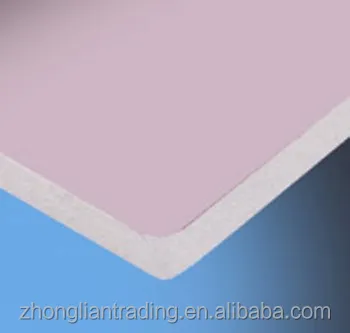

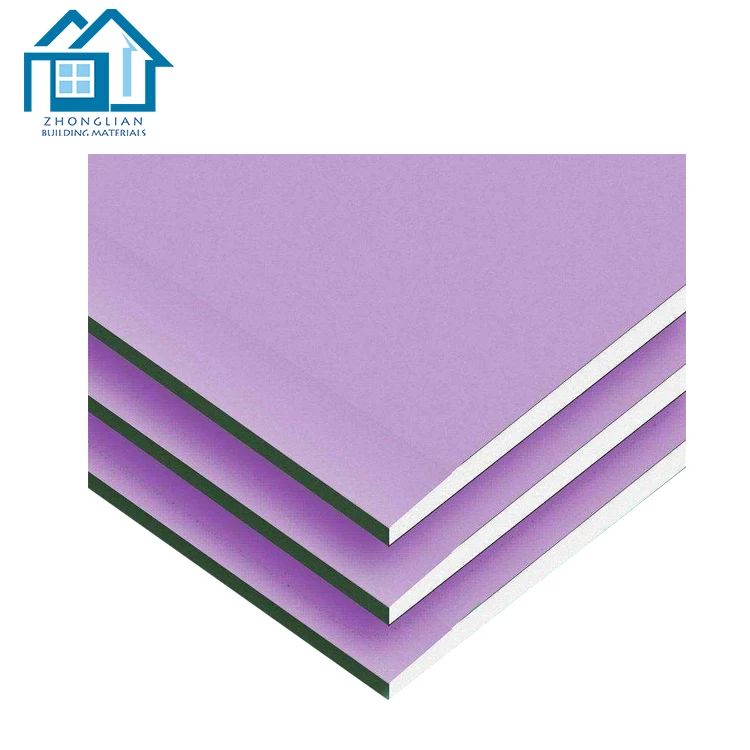

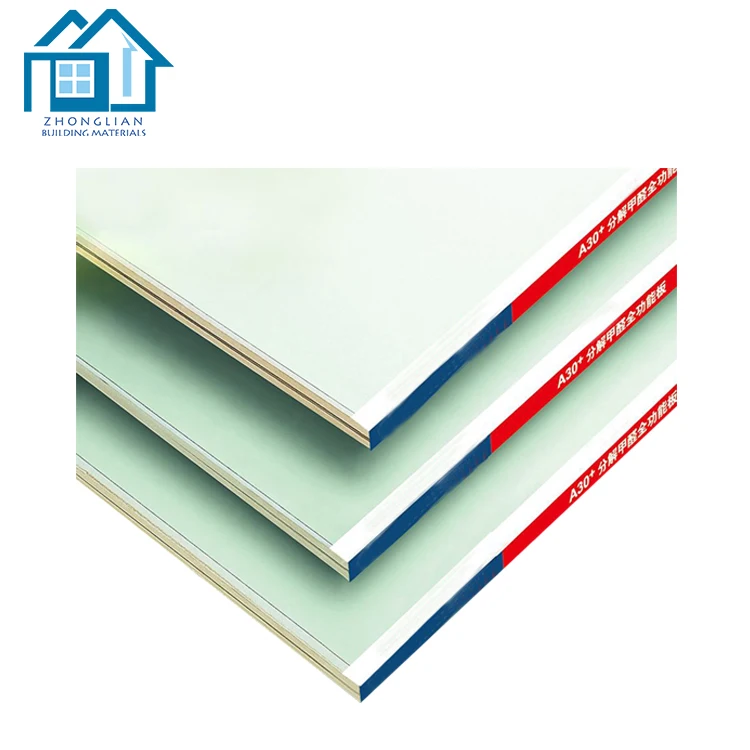

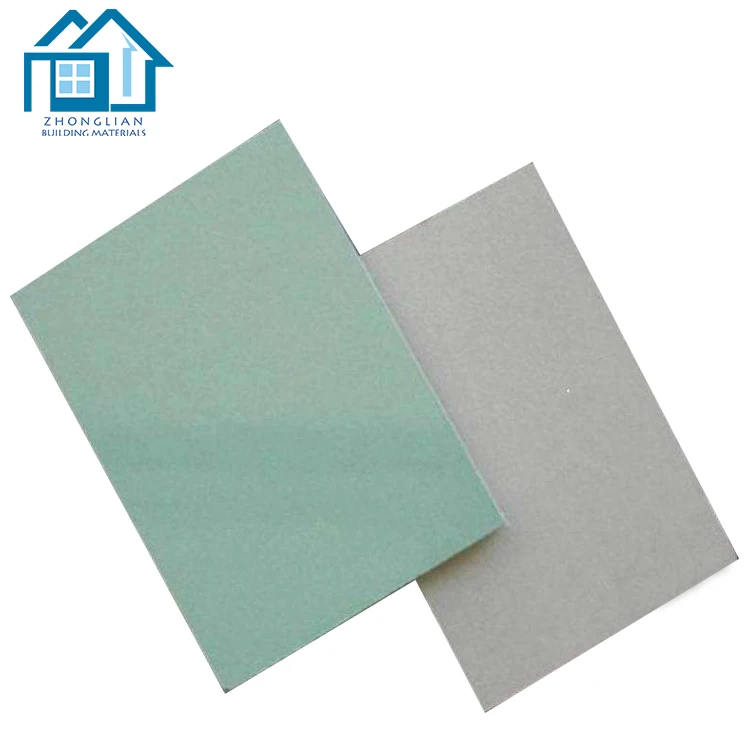

Gypsum board for ceiling and wall
Normal,Moistureproof,Fireproof
Match with steel profiles:stud,track,channel,angle
Construction & Real Estate decorative standard sizes gypsum ceiling board
Features:
1. Light weight: in favor of anti-shake and save building cost.
2. Keep warm and heat insulation: special lacunaris structure.
3. Fireproof: gypsum core is noncombustible,absorb heat to postpone rise of temperature around when meet fire.
4. Sound insulation: special cavum structure, improve sound absorption performance at large degree.
Variety:
1.Standard Type(ivory protective paper),
2.Fire Resistant type (red protective paper),

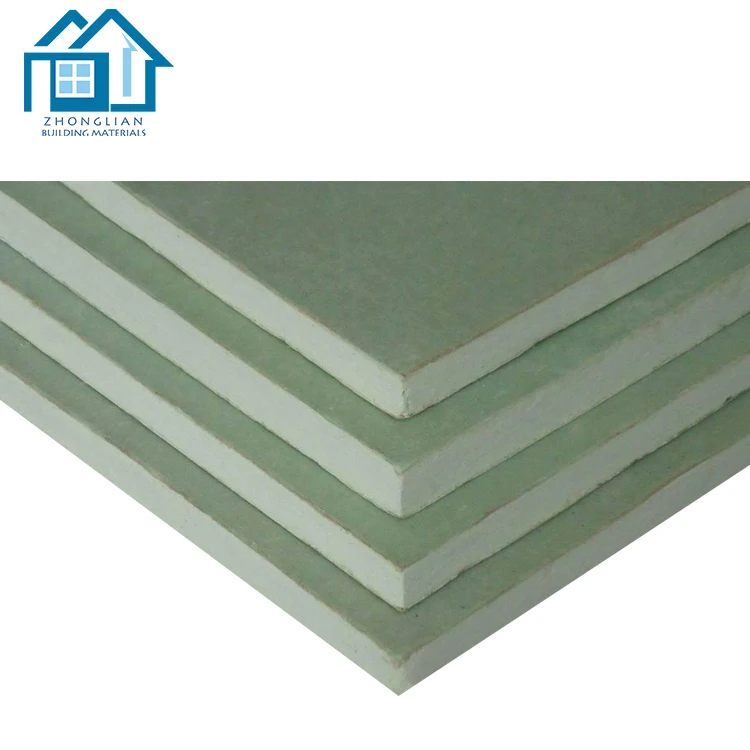

3.Moisture Resistant type (green protective paper);
Specification:
| WIDTH | 1200mm | 1220mm | ||||||
| LENGTH | 1800mm | 1830mm | 2000mm | 2400mm | 2440mm | 2500mm | 3000mm | |
| THICKNESS | 7.5mm | 9mm | 9.5mm | 10mm | 12mm | 12.5mm | 15mm | 15.9mm |
Technical Performance
| Item | Standard value | Actual value | ||||
| Weight per unit | --- | Thickness(mm) | Normal | Fire proof | Water proof | |
| (kg/m2) | >9.5 | 9.5 | 7.7 | 8.3 | 8.2 | |
| >12.0 | 12 | 9.4 | 9 | 10.3 | ||
| >15.0 | 15 | 11.6 | 11.8 | --- | ||
| Rupture load(N) | Vertical | Horizontal | Thickness (mm) | Vertical | Horizontal | |
| <360 | <140 | 9.5 | 513 | 171 | ||
| <500 | <180 | 12 | 684 | 213 | ||
| <650 | <220 | 15 | 781 | 281 | ||
| Protect paper joint with core material | Not naked | Not naked | ||||
| Stability of meeting fire(for fire proof board) | <20 | >20 | ||||
| Soap up ratio(%)(for fire proof board) | >10 | Thickness (mm) | Soap up ratio | |||
| 9.5 | 7.2 | |||||
| 12(12.7) | 8.5 | |||||
| Inner irradiation ratio | type direction materials | |||||
| Outer irradiation ratio | type direction materials | |||||
| Remark: According to China standard of GB/T 9775-1999, GB 6566-2001 | ||||||
Loading Picture
