Внутренняя дуплексная лестница складные чердачные лестницы стальные

Описание и отзывы

Трекер стоимости

Характеристики

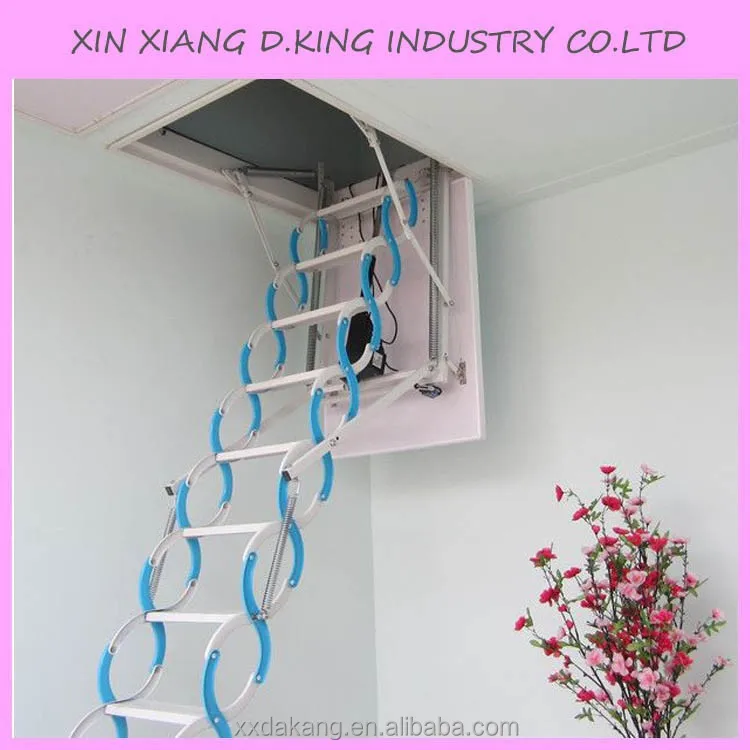

1.       Nice shape





2.      Details show











3.      Operation steps





2.   Features



--Special stretching and contracting design requires no headroom or storage space in the loft;

--The box is with quick-installation brackets asstandard which make easy and quick installation;

--Rubber draught seal contained in box and hatch door with 30 mm insulation prevents loss of heat

   and draught;

--Non-slip treads for extra security

--Hidden hatch door hinges make it easy to paint, varnish or clad the hatch door;

--The hatch unloading mechanism supports the unit in any opening position in addition to when fully

   opened.It

   guarantees safe    ladder folding and unfolding and eliminates the need for a lock;

--Custom wheels on ladder bottom to prevent floor scratch-Easy ladder adjustment without cutting;

--Easy operation-delivered with operation rod made of steel.



3.   Technical Parameters



Luxury model maximum load	300kg
Standard model maximum load	200kg
thermodynamics ratio	1.1w/m2k
Outer frame height	140mm
Step length	400mm
Step width	100mm
Step thickness	30mm
Step number	8-14
Thermo insulation door plant thickness	36mm
Required installation thickness	210mm



4.   Certification Of ProductModel





5.   Model & Specification



Model	Opening  Size	Store  Height	Weight
L-01	700x800	2000-3200	45KG
L-02	700x900	2000-3200	50KG
L-03	700x1000	2000-3200	50KG
L-04	700x1200	2000-3200	50KG
L-05	600x900	2000-3200	45KG
L-06	600x1200	2000-3200	50KG



1.     Top logistics





2.     Wooden packing







Pre-sales Service: Based on the principle of constant innovation and quality guarantee, customer foremost,

we are able to provide our customers the highest quality products at the most favorable price. Every customer

has the chance to visit the working machine in the site before placing the order.



During production Services: You can supervise your goods by yourself. We can offer you the Quality

Supervision service by e-mail, photos, or video and update the data anytime.



After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

...
