Оригинальный 350 Вт Высокое напряжение модель переключения питания источник лазера

Оригинальный 350 Вт Высокое напряжение модель переключения питания источник лазера

Категория: Voltage Regulators\/Stabilizers >>>
Поставщик: Shandong,Laser,Source,Technology,Co.,Ltd.

Цена:64,35 $ - 84,15 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	76.64 $*	80.20 $*
Aug-19-2025	76.25 $*	80.86 $*
Jul-19-2025	63.76 $*	66.3 $*
Jun-19-2025	74.69 $*	78.82 $*
May-19-2025	65.0 $*	68.42 $*
Apr-19-2025	73.45 $*	77.80 $*
Mar-19-2025	72.65 $*	76.96 $*
Feb-19-2025	72.41 $*	76.70 $*
Jan-19-2025	71.19 $*	75.44 $*

Характеристики

Original 350w High Voltage Switching Model Laser Power Supply HY-T50

Model: HY-T50 power supply for 700mm, 850mm,900mm,950mm,1000mm length co2 gas laser glass tubes

Product Description

1.50watt co2 laser power supply Main Features

1.Good Compatitility: HY-T50 power supply can be applicable to 40w, 50w laser tubes manufactured by different factories.

2.50w laser power source has good power stability and strong adaptability, It can prolong the laser tube service life dramaticlly.

3, Easy control: the start and stop of laser can be easily controlled bt TTL level.

4,HY-T50 high voltage laser power box has output open circuit protection.

5, HY-T50 high voltage power supply has TTL signal indication, water through signal indication and laser output indication.

6, T50 50w Laser tube power supply has the BUTTON to test output laser manually.

7, T50 application: T50 is used for 40w,50w laser engraver ,sculpture and cut acrylic, fabric, double color sheet and rubber, etc.

II. HY-T50 laser power supply Specification

Input	Input Voltage	AC220V or AC110V(to be specified when placing order)
	AC frequency	47—440HZ
	Cold Surge Current	≤60A(AC220V Input)	≤30A(AC110 Input)
	Current Leakage	≤0.7mA(AC220V Input)	≤0.4mA(AC110V Input)
Output	Max Output Voltage	DC 25KV
	Max Output Current	DC 20mA
Efficiency	≥90 percent (full load)
MTBF	≥10000H
Response Speed	≤1ms(from the switch Signal is given to the output current up to 90% of the setting current)
Control Interface	TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification)
Withstand Voltage	Input-Output, Input-Shell AC1500V 10mA 60S; Output negative is connected with machine shell.
Protection	can work in open-circuit condition for a short time(Require a good protective earthing and avoid arc between the positive and the machine shell)
Environment	Operating Temperature-10~40°C),Relative Humidity (RH)≤90 percent
Cooling Way	Force-Air Cooling (FAC)
Dimension	L×W×H=16714497(mm)

Notice: Please leave me message you need 110V or 220V when place the power supply, thanks!

III.Operation Instruction:

1.Laser Tube connection: HY-T50 laser power supply high voltage terminal (HV+) should be connected to the positive pole of CO2 laser tube. Current circuit of HY-T50 laser power supply shall be connected to negative pole (laser output terminal) of laser tube by an ampere meter or directly.

2.Connection of control signal

The laser machine control signal connect to HY-T50 laser power supply control terminal ,after connecting the DAC output signal and TTL signal of external computer with HY-T50 power supply, the laser tube shall work as expected. If the laser lamp can not work properly, check the control signal is correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤5V,Check and make sure protection switch WP connection is correctat same time.

IV.Connection Diagram

1. 50w glass tube and power supplyHY-T50 Connection diagram

T50 Power Supply

2.Connection of power supply HY-T50 and control board

TH control

TL control

HY-T50 power supply Manual Test Method

Firstly make sure HY-T50 power supply and laser tube correct well, disconnect the control terminal and press the button" TEST" on HY-T50 power supply for 5-10seconds to check if there is laser output from laser tube.This method is easily to judge if power supply is ok.

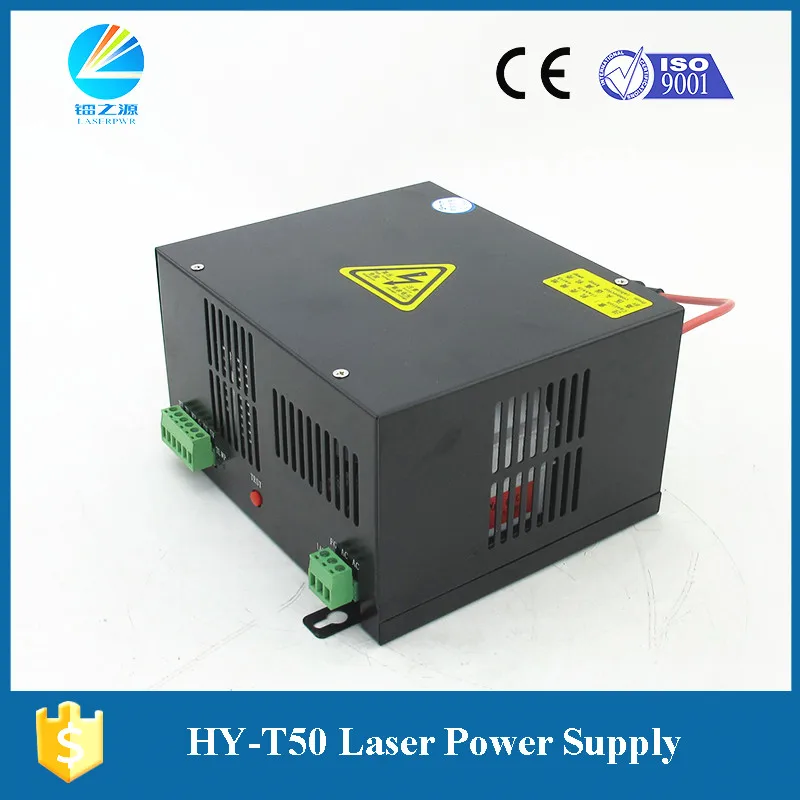

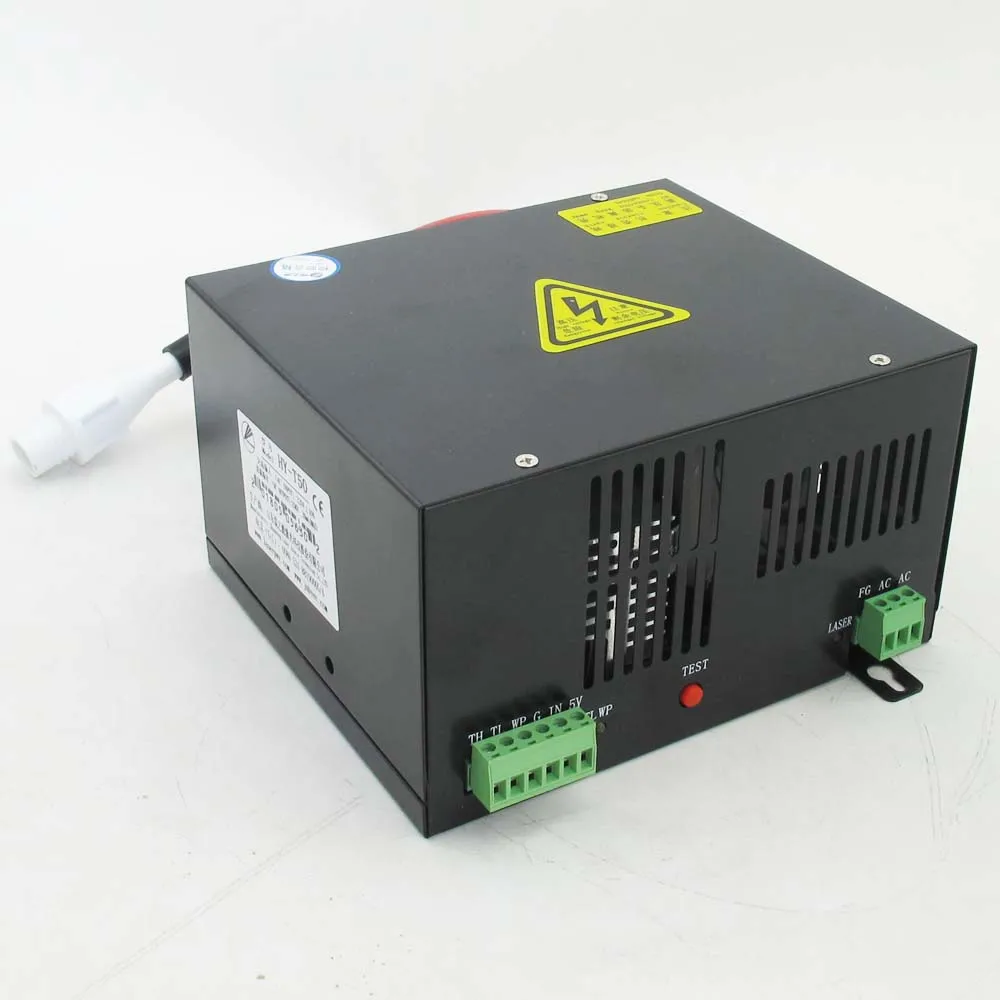

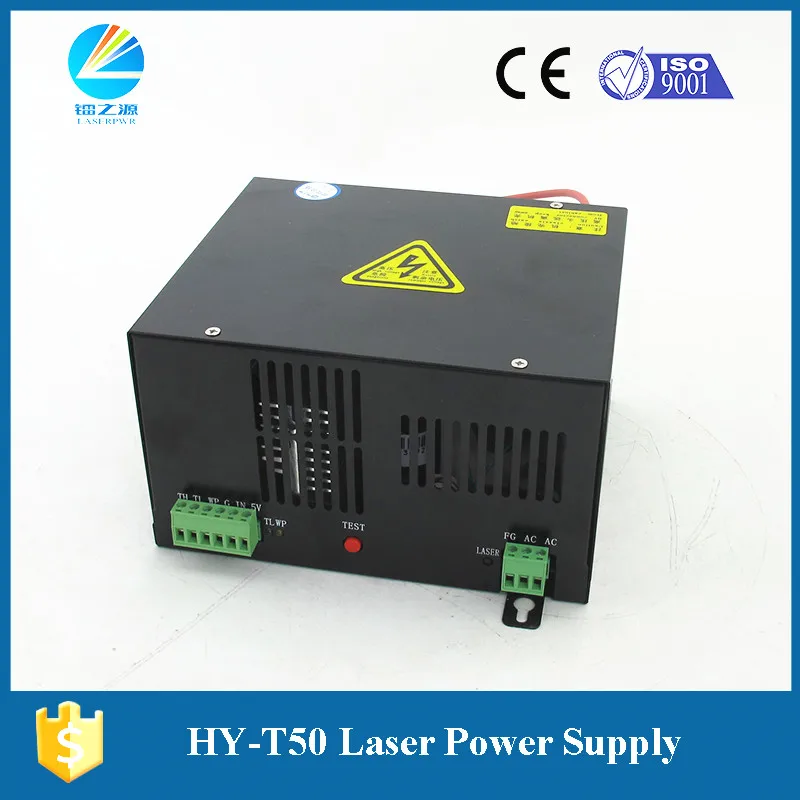

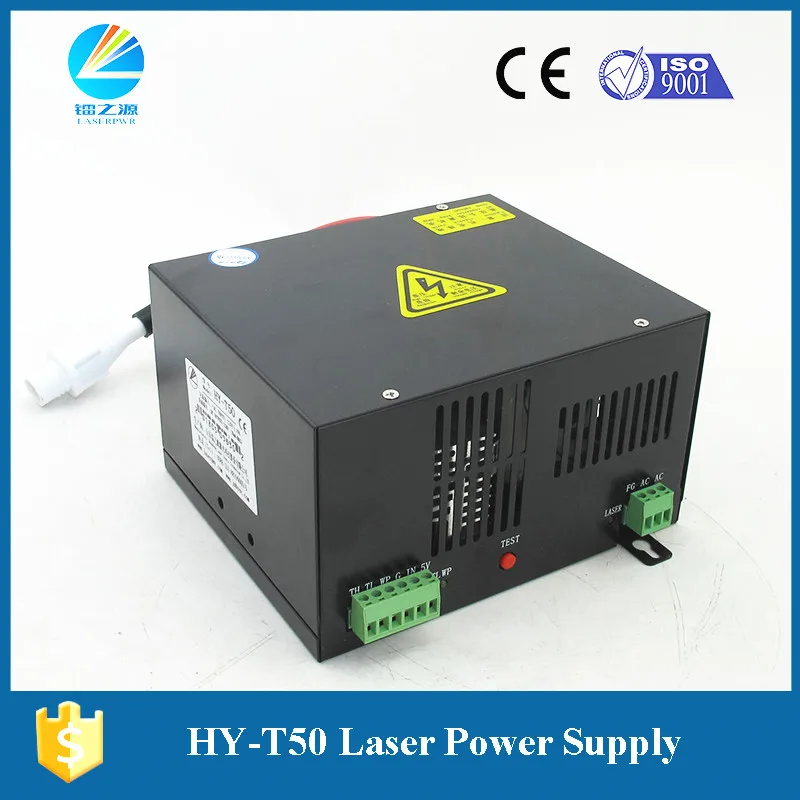

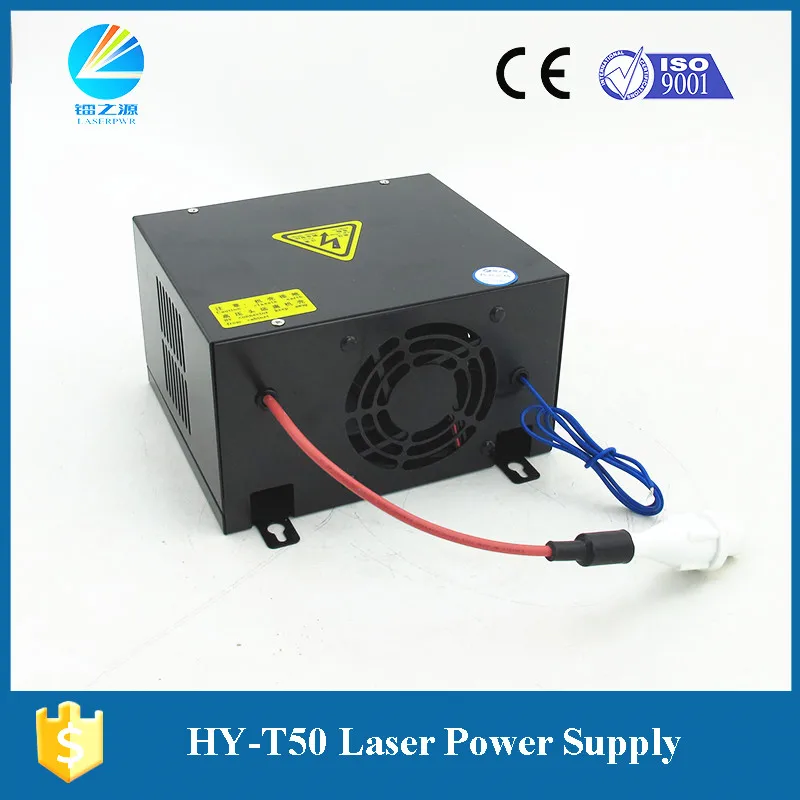

V. HY-T50co2 laser power supply Pictures;

T50 power supply (5).jpg
