Cardboard & Corrugated box.

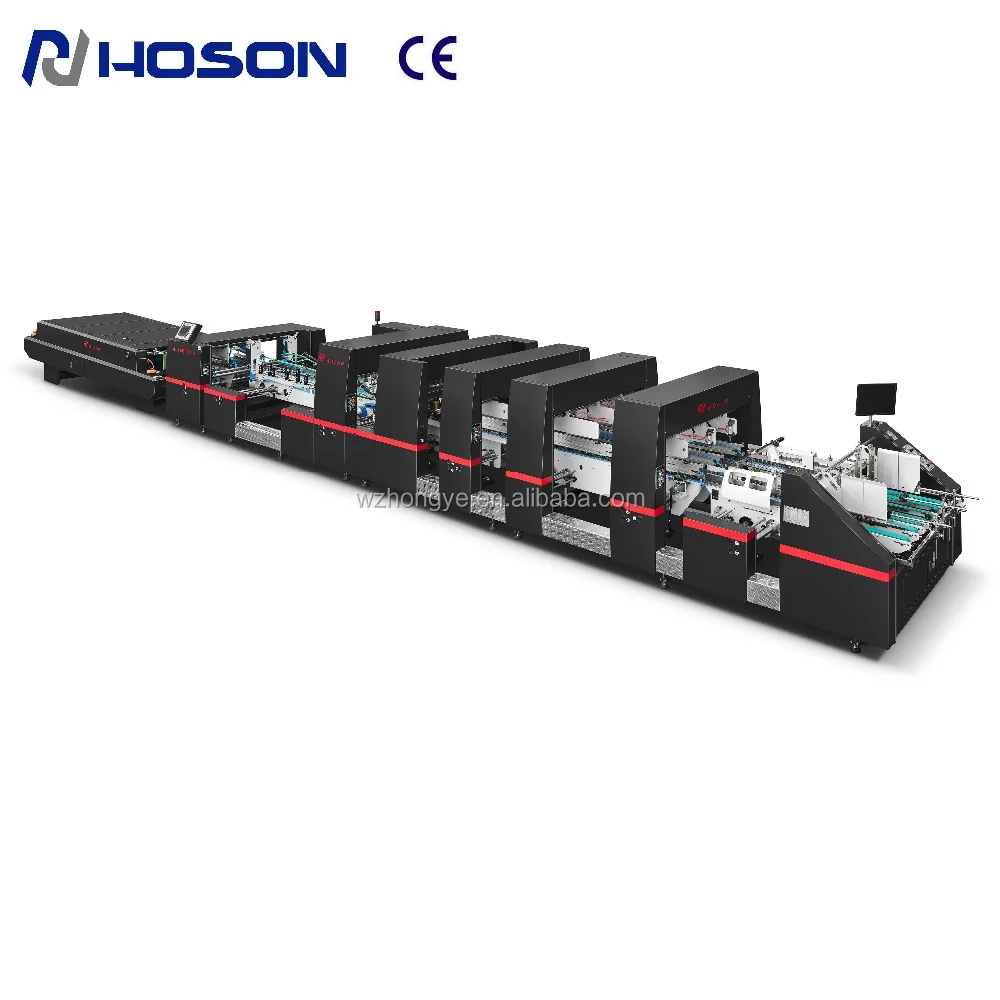

ZH-1400BFT-H Upgrade Automatic Folding Gluing Machine

1.Bottom lock box

2.Straight line box

3.Double wall box





Features:

1) An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system



2) Feeder is controlled by separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and autoamtic with this system.



3) PLC system and touch screen for easy operation. Out-put quantity/Speed/Counting etc., is able to set by the system. A remote diagnosis help to maintenance. and a photoelectric system for speed control in pressing unit. Counting though photo-electric sensor&electromagnet kicking.



4) Pressing unit with pneumatic design. And the upper belt is able to work separately. Pressing also by a sponge belt in the section to keep out-put in a perfect condition.



5) The equiped part: Siemens Motor, Schneider Electric/PLC/Inverter, Japanese Nitta Belts, YHY/NSK bearing, Germany Continental timing belts. The machine can runing stable and quick.



7) E Flute Corrugated box are also to be done in this machine.





Parameters



Box Type	Picture	A Max	A Min	B Max	B Min	C Max	C Min	D Max	D Min
Crash-lock Bottom Box		1050-300mm		850-250mm		150mm		50mm
Straight Line box		1150-300mm		850-300mm
Double Walls Box		880mm		880mm		120mm		700mm





1	Line speed	0-300m/min , Continuous adjustment
2	Usage paper	280-800 g/ms, paperboard, E Flute
3	Box forming	Bottom-lock, straight line box, double walls box
4	Fold method	2nd & 4th folds 180° (pre-folding unit or correction unit for optional)
5	Paper feeding	Automatic feeding, grinding unit
6	Electric Power	13.2 kw
7	Dimension	15.5*2.0*1.65m
8	Weight	6500kgs
