Экструзионная машина для сухого

Цена:13 000,00 $*

Количество:

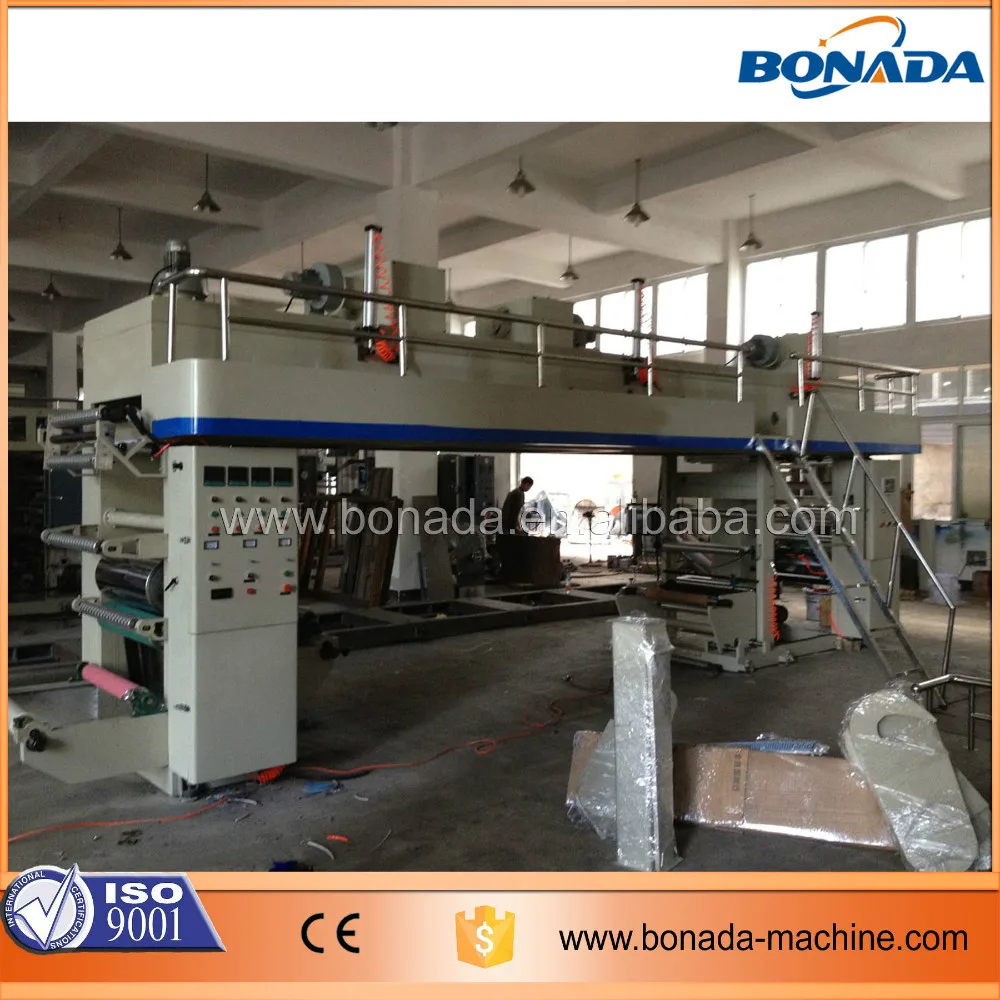

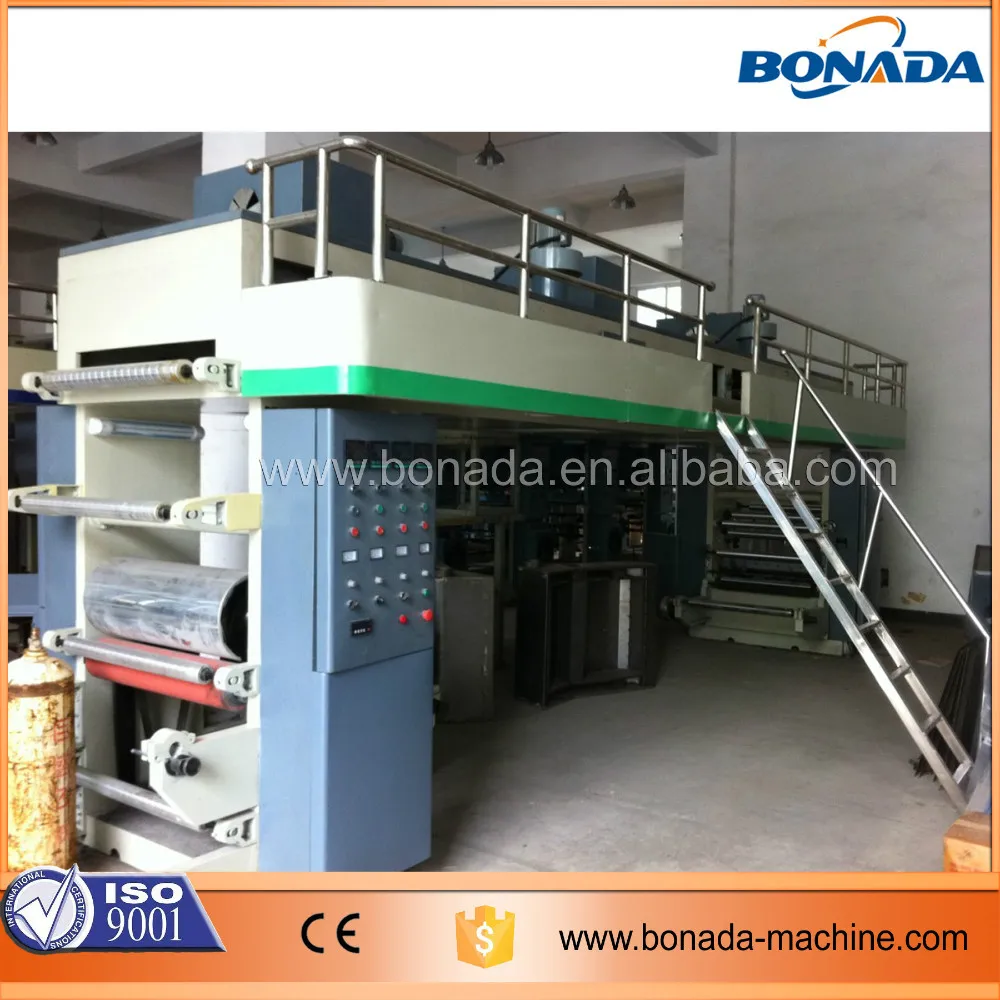

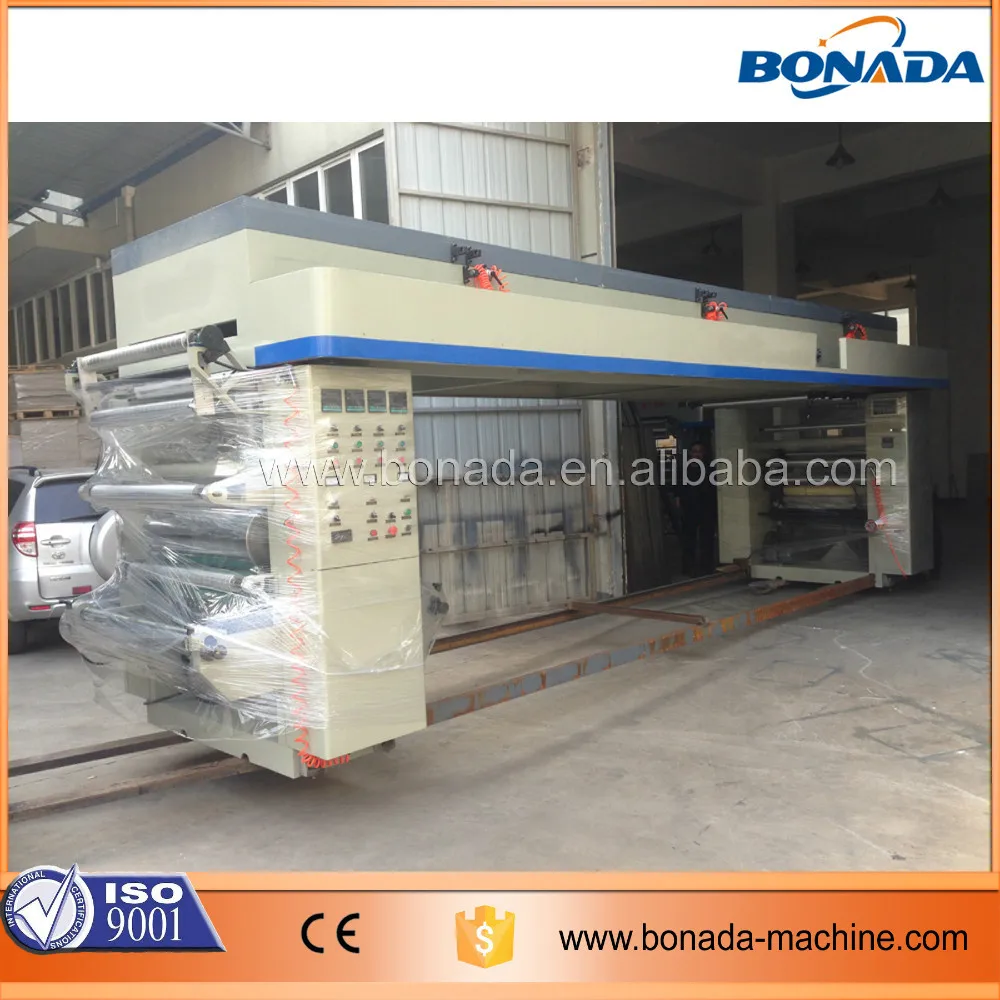

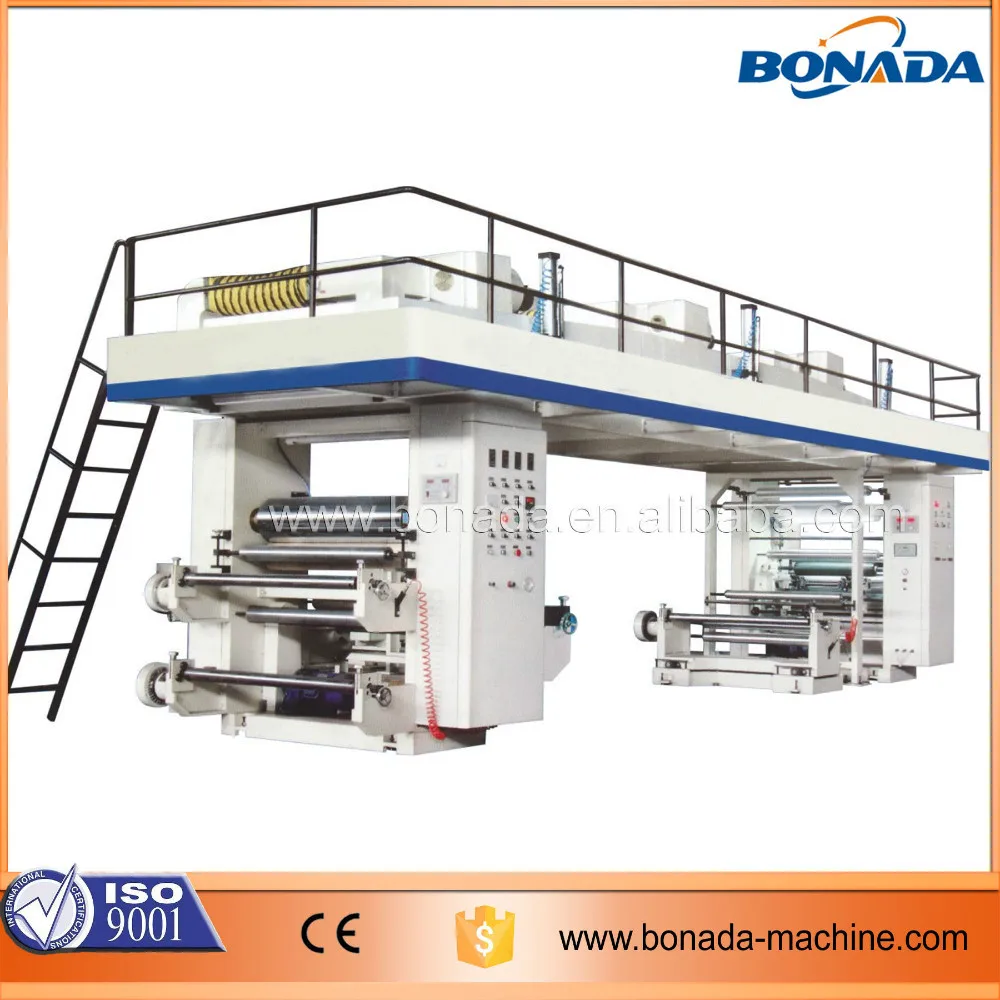

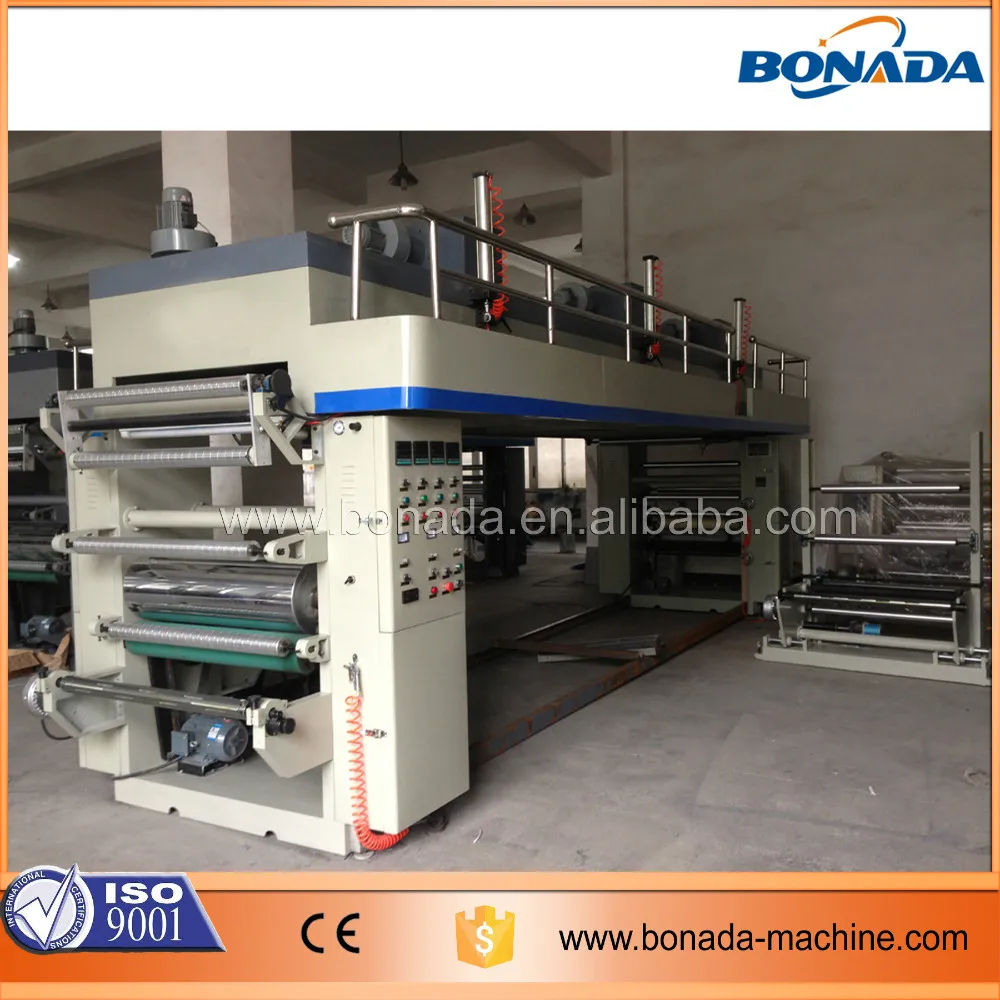

Production Name: Dry Lamination Machine

Main features:

1-Lamination and coating adopts double inverter motors.

2-Dry box tension controlling adopt pressure sensor automatically adjusting.

3-The first unwinding station adopts photoeyes EPC controlling system, the second unwinding station adopts two stations (double unwinder)

4-Lamination and coating adopts air-cylinder pressing.

5-Rewinding unit adopts moment motor(torque motor) to control the tension.

Parameters:

Model	FG-A800	FG-A1000	FG-A1100	FG-A1200
Laminating Material	Plastic film, Paper, aluminium foil, compound film etc.
Laminating layer	2layers	2layers	2layers	2layers
Max. width of lamination	800mm	1000mm	1100mm	1200mm
Lamination speed	90-100m/min	90-100m/min	90-100m/min	90-100m/min
Max. rewinding/unwinding diameter	600	600	600	600
Dry box temperature available	100°C	100°C	100°C	100°C
Total Power	38KW	45KW	48KW	52KW
