Преобразователь компонентов 1080p HDMI в VGA преобразователь с входом на выход
- Категория: Прочее домашнее аудио- и видеооборудование >>>
- Поставщик: Shenzhen,LINK-MI,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.30 $* |
| Aug-16-2025 | 0.17 $* | 0.20 $* |
| Jul-16-2025 | 0.30 $* | 0.83 $* |
| Jun-16-2025 | 0.4 $* | 0.41 $* |
| May-16-2025 | 0.42 $* | 0.20 $* |
| Apr-16-2025 | 0.6 $* | 0.41 $* |
| Mar-16-2025 | 0.52 $* | 0.28 $* |
| Feb-16-2025 | 0.65 $* | 0.73 $* |
| Jan-16-2025 | 0.28 $* | 0.8 $* |
Характеристики
Description

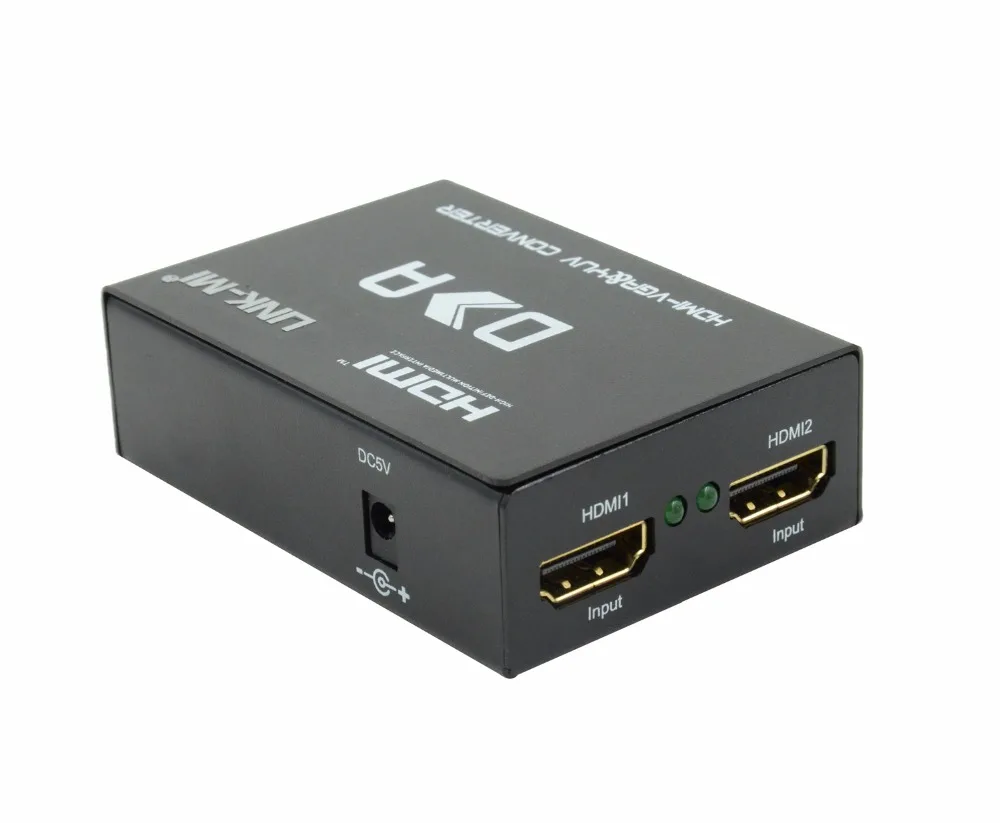

LINK-MI LM-HVY01 HDMI to Component Converter is a converter which can convert HDMI input to RGBhv/YPbPr/YCbCr output with a 15 pin HD-SUB ( VGA Style ) jack. This HDMI to Component Converter supports analog L/R audio and digital audio SPDIF output, have two 100% digital HDMI 19pin female port and have a switch can choose RGBHV or component (YPbPr/YCbCr) output.
Features

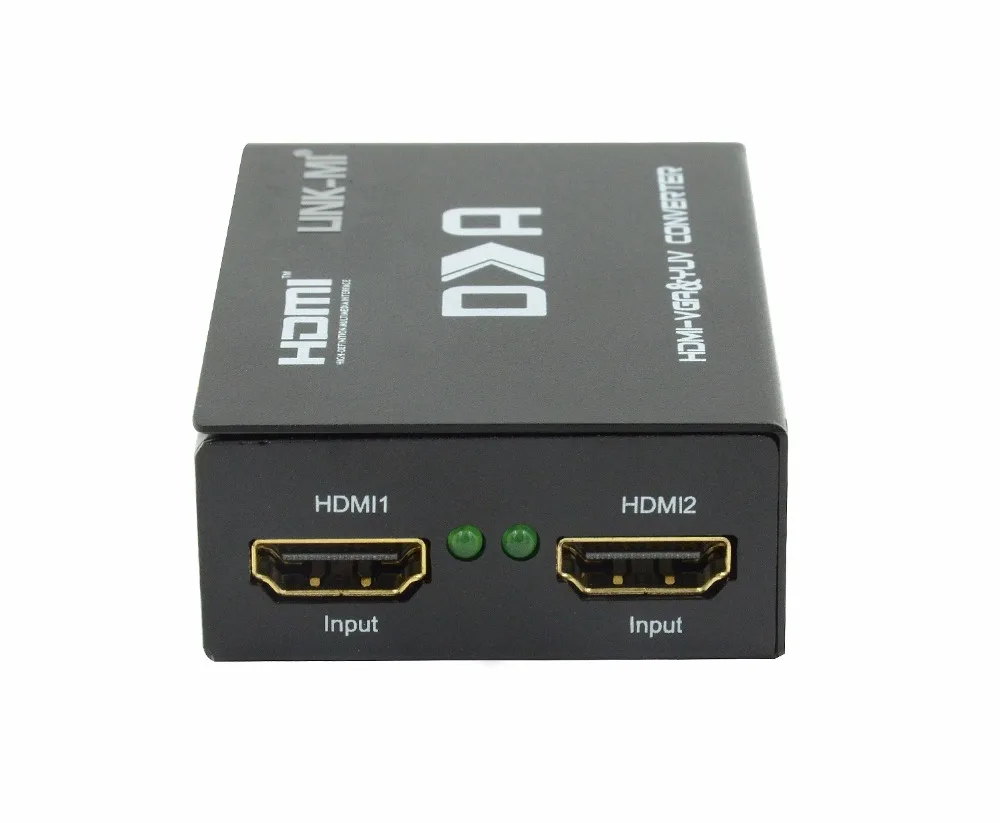

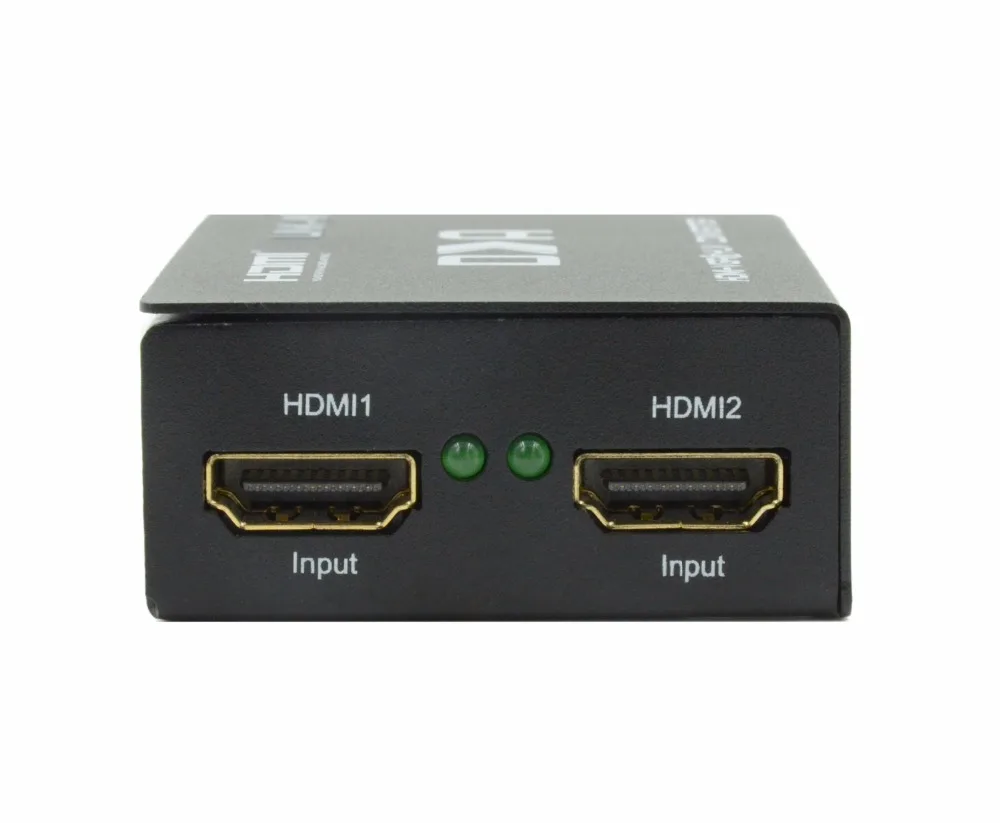

1. Two digital HDMI 19p female port(100%digital)
2. Convert HDMI input to RGBhv/YPbPr/YCbCr output with a 15 pin HD-sub(VGA style)jack
3. Two channels input can be switched easily

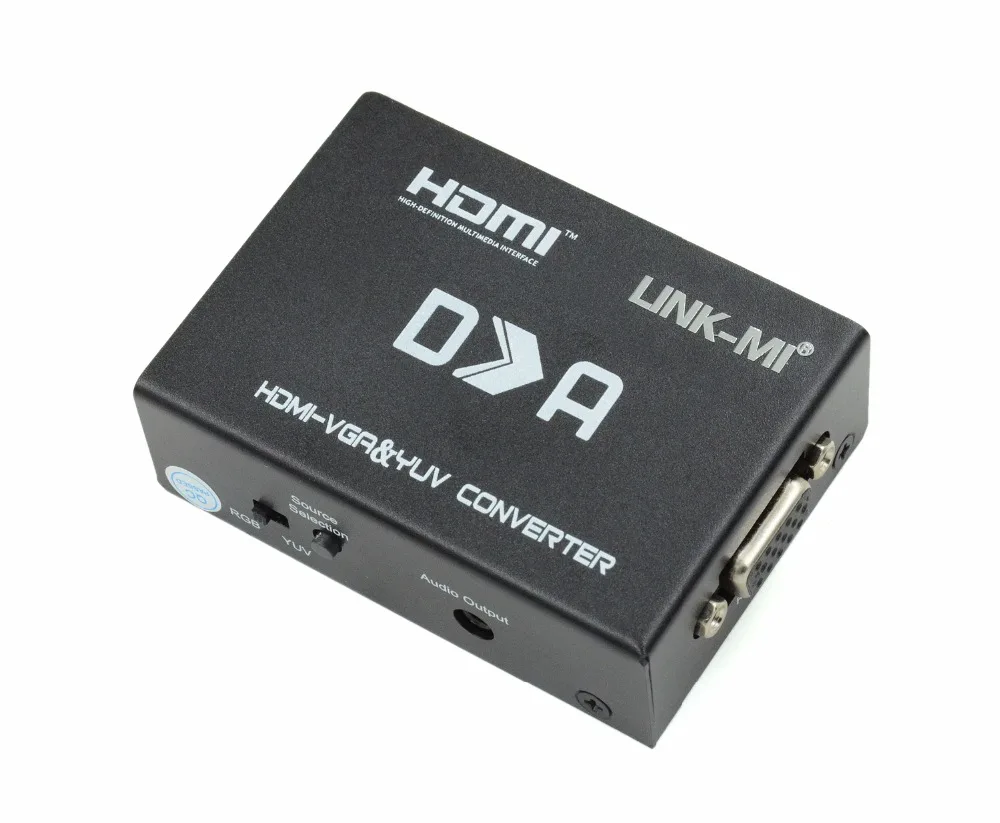

4. Users can choose RGBHV or component(YPbPr/YCbCr)output with a switch
5. RGB 4:4:4(8bits)digital input
6. YPbPr 4:4:4 or YCbCr 4:2:2 digital output
7. Stereo high-quality analog or digtal/optical audio output(s/PDIF format)
8. HDCP Compliant &DVI 1.0 Compliant
9. Supports 1.5Gbps signaling rate
10. Supports HD format from 480i to 1080p
11. Green LED light indicates the connection status
Interfaces
Connection
Connection and Operation:
1. Connect the HDMI signal sources(Such as PS3,STB etc) into HDMI input.
2. Connect the HDMI output (such as :HD-LCD,HD-DLP) into HDMI output.
3. Connect the audio output into audio device.

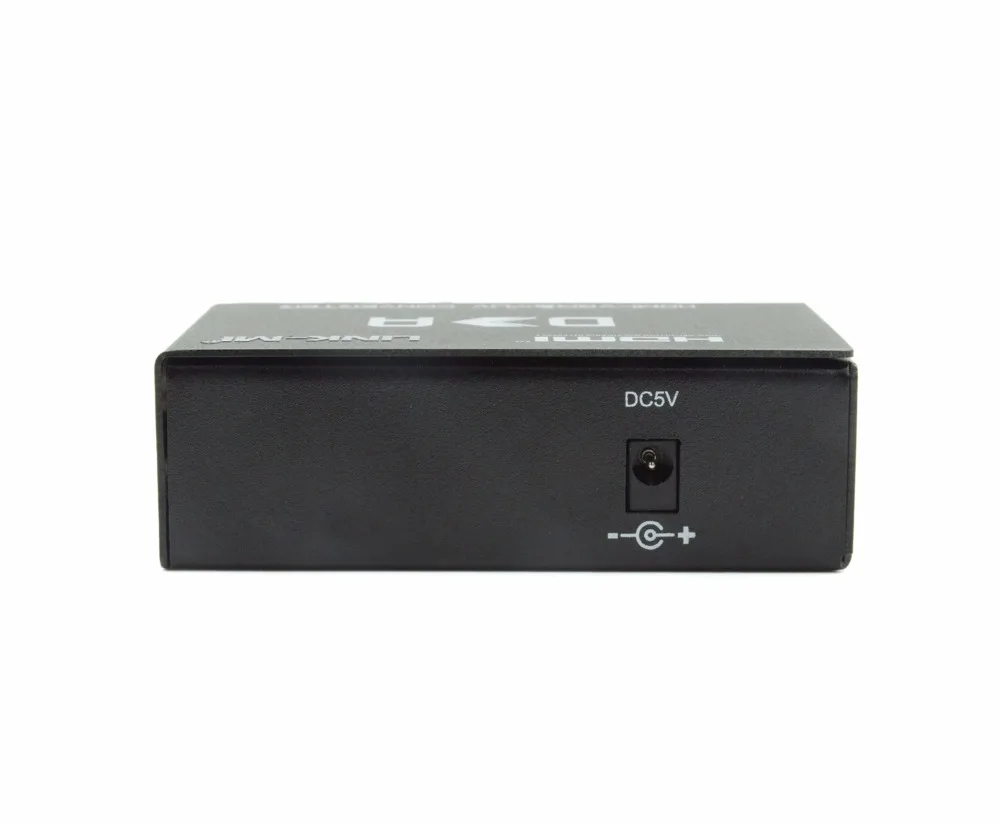

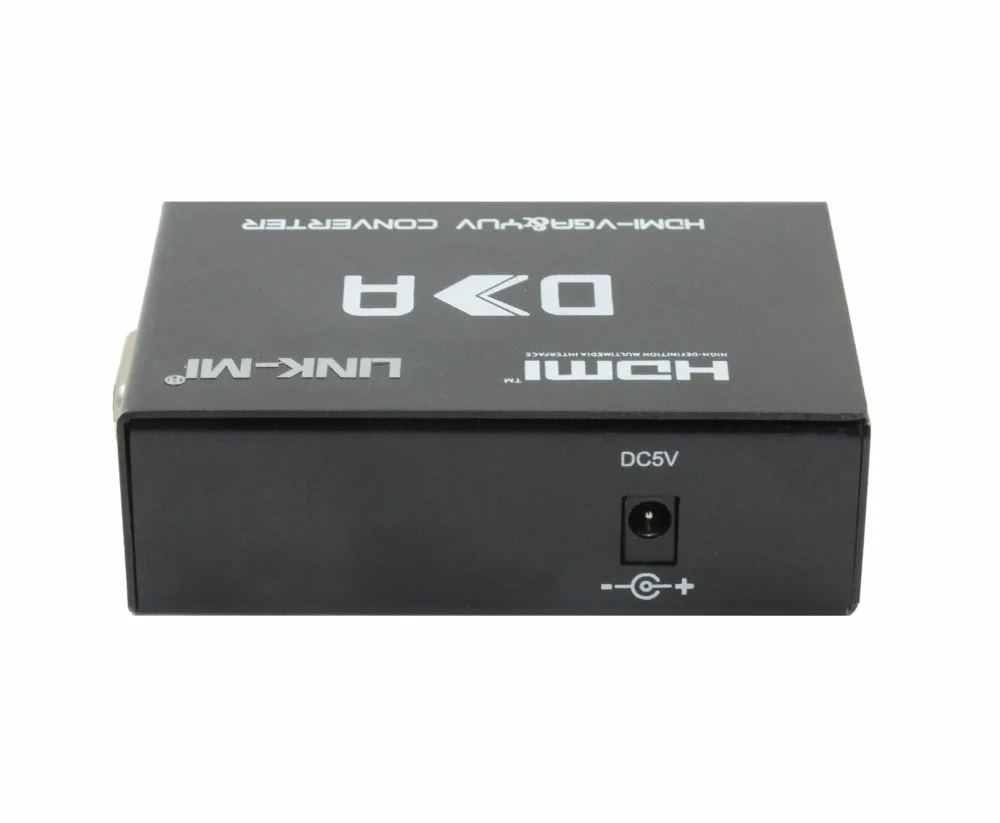

4. Insert the DC side of 5v power supply into power input and then connect the AC side of the power supply into the wall outlet
Attention: Insert/Extract cable gently.
1. Connect the HDMI signal sources(Such as PS3,STB etc) into HDMI input.
2. Connect the HDMI output (such as :HD-LCD,HD-DLP) into HDMI output.
3. Connect the audio output into audio device.
4. Insert the DC side of 5v power supply into power input and then connect the AC side of the power supply into the wall outlet
Attention: Insert/Extract cable gently.
Specification
Operating Temperature Range | -5 to +35°C( +23 to +95 Degree Fahrenheit) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Video Amplifier Bandwidth | 165MHz(Maximum) |
Input video Signal | 5 volts p-p(TTL) |
Output resolution | VGA/SVGA/XGA/SXGA/UGA |
Output Audio Format | Analog audio L/R and digital audio SPDIF output |
Power Consumption | 3Watts (Maximum) |
Dimension (L×W×H) | 72x50x23mm |
Net Weight | 128g |
Gross Weight | 750g |
Accessories
1. Main Unit. HDMI to VGA/RGB/YPbPr Converter
2. DC 5V 1A Power Supply
3. Operating Instructions
4. VGA to RCA cable
5. Toslink cable
