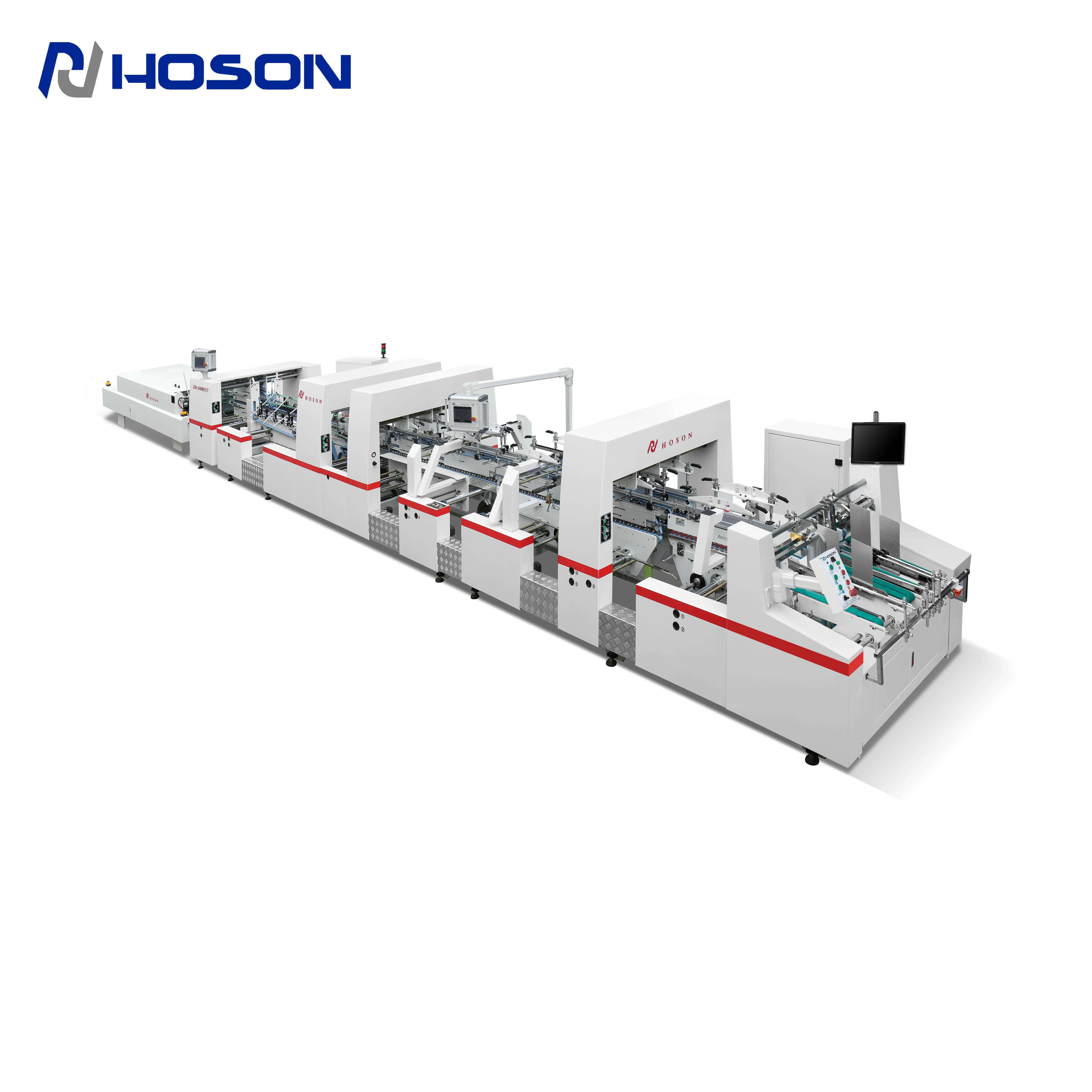

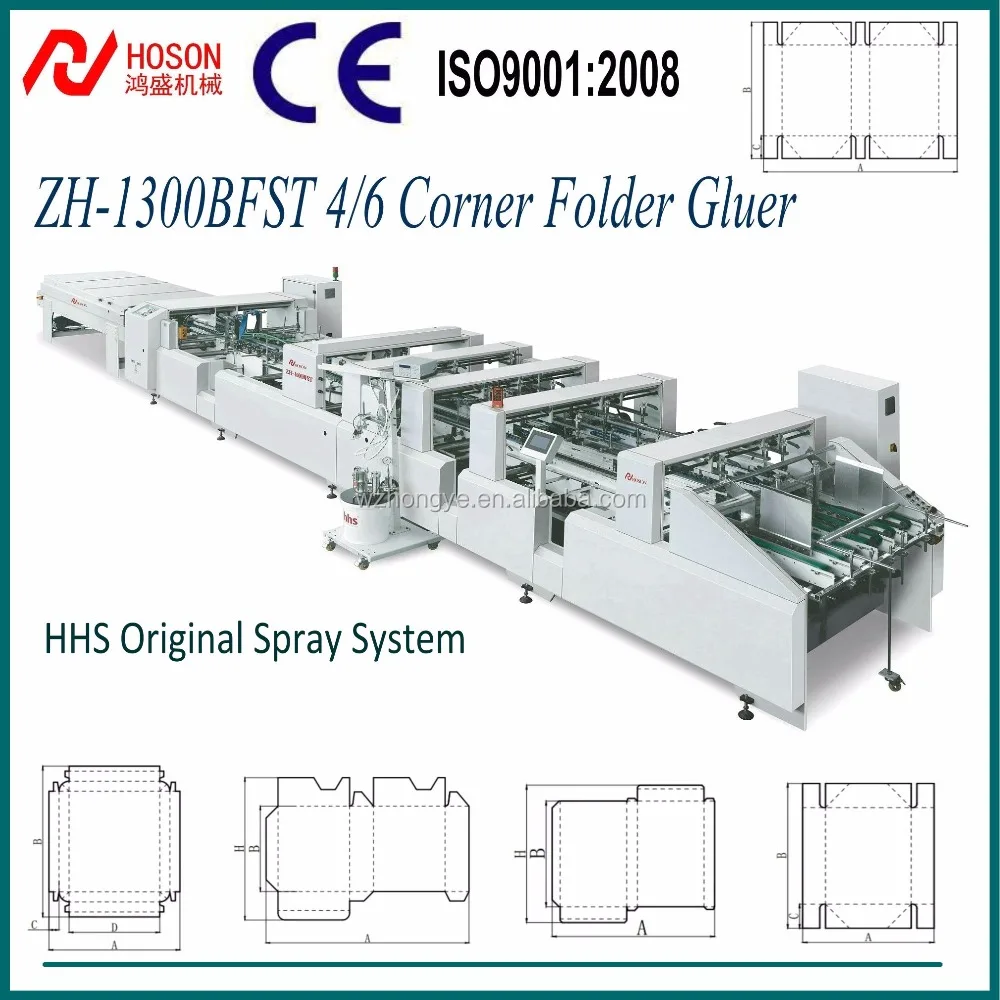

ZH-1300BFST 4/6 Corner Type Paper Box Folder Gluer Machine

It is designed for

1. 4/6 corner box,

2. bottom-lock box

3. straight line box

4. double wall box

5. popcorn box

6.French fries box

7..........etc





Features:



1) ZH-1300BFST owns CE certificate and can make many kinds of boxes. Like 4/6 corner box, bottom-lock box, doubel wall box and straight line box. One machine ,more different boxes.



2) Paper is feed by several thick belts under the help of vibration motor. Feeding is more continuous, exact and automatic.



3) Grinders are provided in both side of machine, to help gluing more stable and firm.



4) The machine have two set of line gluing unit. Top unit for bottom glue and the lower unit for side glue. Space adjustment is through tooth rods.



5) In pre-folding part, 1st folds at 180°,3rd folds at 90°. The 2nd fold and 4th fold at 180°.But pre-folding part and correction section part is for optional in this machine. Correction unit helps paper running and folding in aligned line.



6) ZH-1300BFST adopted with famous and high quality parts.Such as Simens motor, Schneider Electric/PLC/Transducer, Japanese NITTA belts, Japanese YHY/NSK bearing, Germany continental timing belts. All these parts help the machine running more quick and stable.



7) PLC system and touch screen for easy operation.Out-put quality/Speed/counting are able to set by this system.Counting through photo-electric sensor&electromagent kicking.





Parameters:



1	Line speed	0-200m/min , Continuous adjustment
2	Usage paper	350-800 g/ms, paperboard.
3	Box forming	4/6corner box, bottom-lock, straight line box, double walls box
4	Fold method	1st & 3rd folds 90°, 2nd & 4th folds 180°
5	Paper feeding	Automatic feeding, grinding unit
6	Electric Power	13.2 kw
7	Dimension	13.7*1.8*1.6m
8	Weight	6000kgs
9	Condition	New



Box Type	Picture	A  Max	A Min	B Max	B Min	C Max	C Min	D Max	D Min
6 Corner  Collapsible Box		900-400mm		750-160mm		100-30mm
4 Corner  Collapsible Box		900-260mm		750-160mm		100-30mm
Crash-lock  Bottom Box		1000-300mm		780-250mm		150mm		50mm
Straight Line  box		1050-300mm		780-250mm
Double Walls  Box		780mm		750mm		120mm		600mm
