Proudcts speficications



SIZE (INCH)	O.D (MM)	SLOT (INCH)	LENGTH (M)	COLLAPSE STRENGTH (PSI)	TENSILE WEIGHT (TON)	WRAP(thick*deep) (MM)	RODS (MM)
4	117	0.040	3	395	6	2.2*3.0	3.8MM/22
4	114.3	0.040	3	395	6	2.3*3.0	3.8MM/22
6	168.3	0.040	3	252	8	2.3*3.5	3.8MM/32
8	219.1	0.010	3	399	10.5	3.0*5.0	3.8MM/48
8	219.1	0.020	3	370	10.5	3.0*5.0	3.8MM/48
8	219.1	0.040	3	323	10.5	3.0*5.0	3.8MM/48
10	273.1	0.010	3	206	11	3.0*5.0	3.8MM/50
10	273.1	0.020	3	191	11	3.0*5.0	3.8MM/50
10	273.1	0.040	3	167	11	3.0*5.0	3.8MM/50



 1. OD(outside diameter): usually 6-5/8” 7” 8-5/8” 9-5/8” 10-3/4” 12-3/4”by our customers’ requirements.

2. Material: carbon steel or stainless steel(201,304,304L,316, 316L and so on)

3. Slot size: given by customers. We can do 0.05-2.5mm.

4. Open area: a maximum open area of 60% is offered facilitating high flow capacity and low inlet resistance resulting in extended well life.

5. Wire and rod dimensions: obtained through well depth, or collapse strength and tensile strength, which are furnished by customers.

6. Connection types: usually STC threads or a passage of welded ring (plain end or beveled end), both of them are welded together with the portion of screen.

7. Unit length: we suggest 2.9m or 5.8m, to fit the container.

Any specific requirements, please write to us.

We have manufactured water well screen pipes for several years and we are famous for our profession. We also can produce bridge slotted screen along with ISO9001 standard, welcome all the buyers and distributors cooperate with us home and abroad.

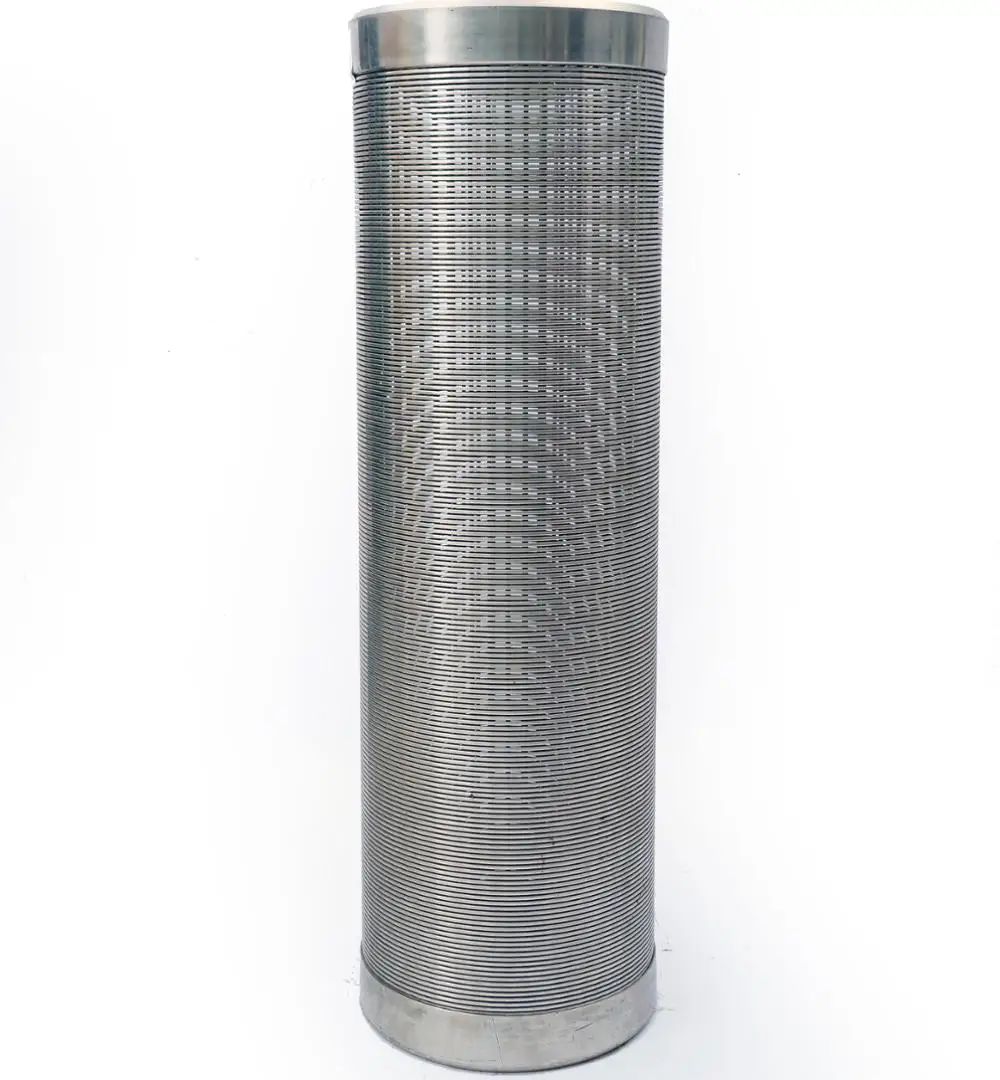

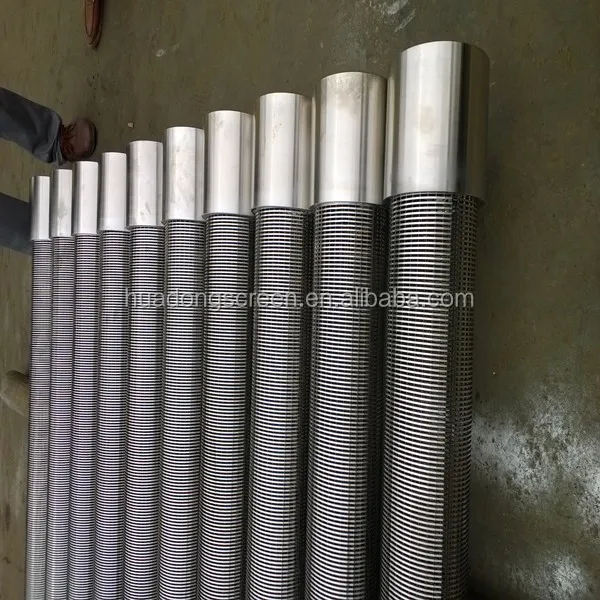

Product show

 Product inspection

Packing and delivering

Single with bubble bags and then put into wooden cases(fumigation certificate). Each case is clearly marked with:

Name & identification mark of manufacturer-Huadong Brand Johnson screens

Batch number

Date of manufacture

Safe heating & application temperature





Customer visiting



HUADONG SCREEN CO,.LTD is located in high-tech enterprise concentration areas of Xinxiang,Henan province China.It covers an area of 50000 square meters.We are professional manufacture of water well screen,slotted liner pipe,wedge wire screen,bridge slot screen,perforated pipe,spiral steel pipe for over 20 years.With sophisticated manufacturing facility,advanced technologies and perfect detection measures,our product well recognized by industry professionals at home and abroad,base on their products have earned it a reputation in China and found their way into the international markets.
