Factory Direct Sale Inductive Vehicle Loop Detector
Product Description

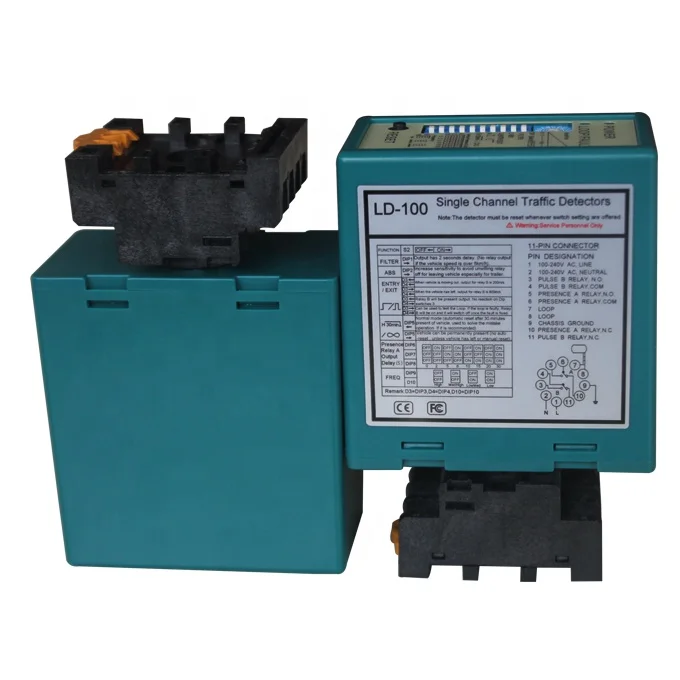

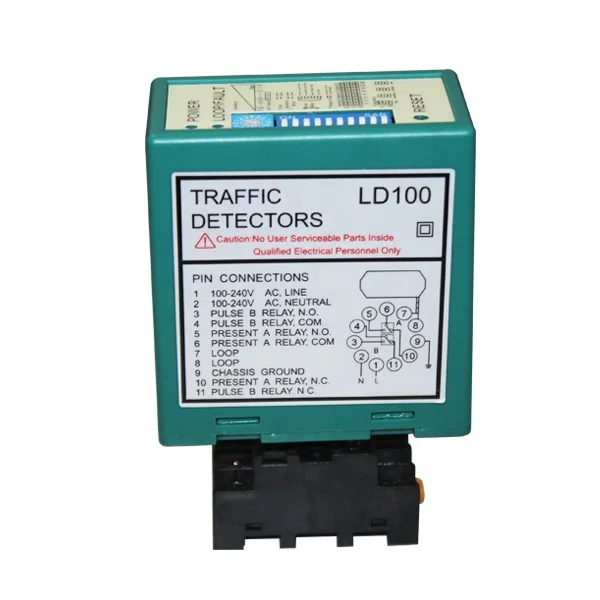

NBLD-102 Or NBLD-100
The NBLD-102 or NBLD-100 is a single channel inductive loop detector, designed for paking and vehicle acces control. The function of the detector is to detect vehicle presence by means of an inductance change caused by the vehicle passing over a wire loop buried under the road surface.
Specification
Model: NBLD-102 OR NBLD-100 | |||
1 | Range | 20-2000uh | |
2 | Voltage | 12-24Vdc/85-240Vac | |
3 | Relay | presence/pulse | |
4 | Working tamperature | -40 ℃~+70 ℃ | |
5 | Frequency | 4 steps switch, 20-80khz | |
6 | Response time | NO:10-90MS OFF:10-90NS | |
7 | Size | 75mm*43mm*110mm | |
Production details
Feature
1. Compact Size: the compact and well engineered housing combined with all the industry requirements regarding features and functionality allows this detector to be incorporated into any new or existing vehicle detection system.
2. Diagnostic Capabilities: Comprehensive diagnostics capabilities allow for accurate diagnosis of loop and installation problems.
3. Selectable Presence Time: The output of the presence relay can be selected to limit a detect output to a fixed time(time>30 minutes) while a vehicle remains on the loop.

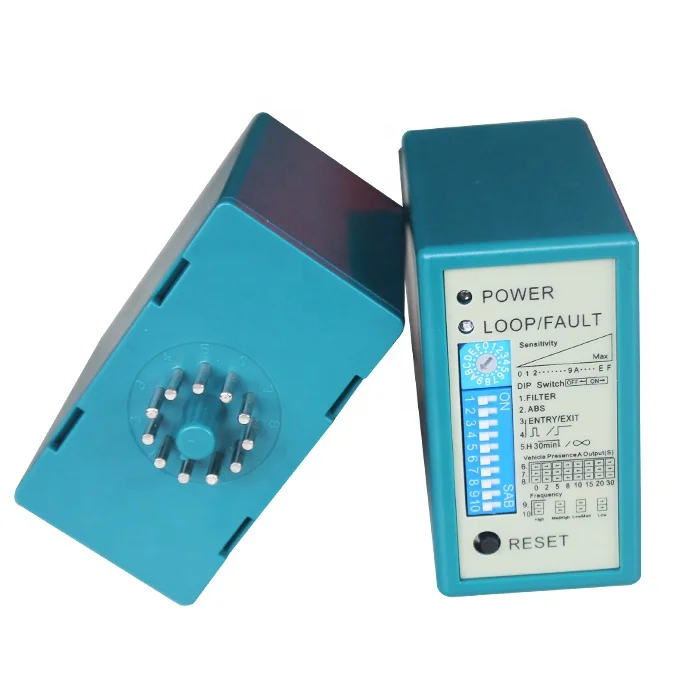

4. Sensitivity setting: The 16 sensitivity settings allow for finer adjustment of the detection level.
5. Frequency setting: The 4 frequency settings provide greater flexibility in preventing crosstalk in multi-loop applications.
6. Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing .This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection.
7. Two separate output relays:
Presence Relay A is presence output, can be extended for 0,2,5,8,10,15,20 or 30 seconds. Pulse Relay B, programmable with external 10 way DIP switches, provide presence, pulse on entry, pulse on exit, or failed output.
Application
* Parking Guidance System
* Car Locating System
* Parking Management system
* Traffic control applications
* Toll systems
* Vehicle counting
* Traffic Analysis
* Car Locating System
* Parking Management system
* Traffic control applications
* Toll systems
* Vehicle counting
* Traffic Analysis
Product packaging
Our company
SHENZHEN NOBLE OPTO CO.,LTD has been and will always be striving to improve its production quality standards as well as making production operations more efficient and environmentally friendly. There are certificates of conformity showing we comply with relevant international quality standards such as EN12368,FCC,RoHS,CE,ISO9001,Software copyright and pateent foor utility models utility model patent.
Our Certificate
FAQ
1. Where are there your company solar traffic light system projects?
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique ect..
2. Whole solar traffic light system include???
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problem on installation of traffic light, we will provide you video to show, or let you contact our engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
