Высококачественный триммер для травы, 16, 18, 20, 21 дюйм
US $100.00-$500.00
210-350Hp воздушное охлаждение 413 серии 12 цилиндров Deutz дизельный двигатель
- Категория: Machinery Engines & Parts >>>
- Поставщик: Beijing,Antaios,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 68009.68 $* | 71409.79 $* |
| Aug-18-2025 | 67437.80 $* | 70809.72 $* |
| Jul-18-2025 | 56579.38 $* | 59408.33 $* |
| Jun-18-2025 | 66294.67 $* | 69609.83 $* |
| May-18-2025 | 57722.65 $* | 60608.50 $* |
| Apr-18-2025 | 65151.73 $* | 68409.89 $* |
| Mar-18-2025 | 64580.84 $* | 67809.95 $* |
| Feb-18-2025 | 64008.62 $* | 67208.32 $* |
| Jan-18-2025 | 63437.36 $* | 66609.93 $* |
Характеристики
Products Description

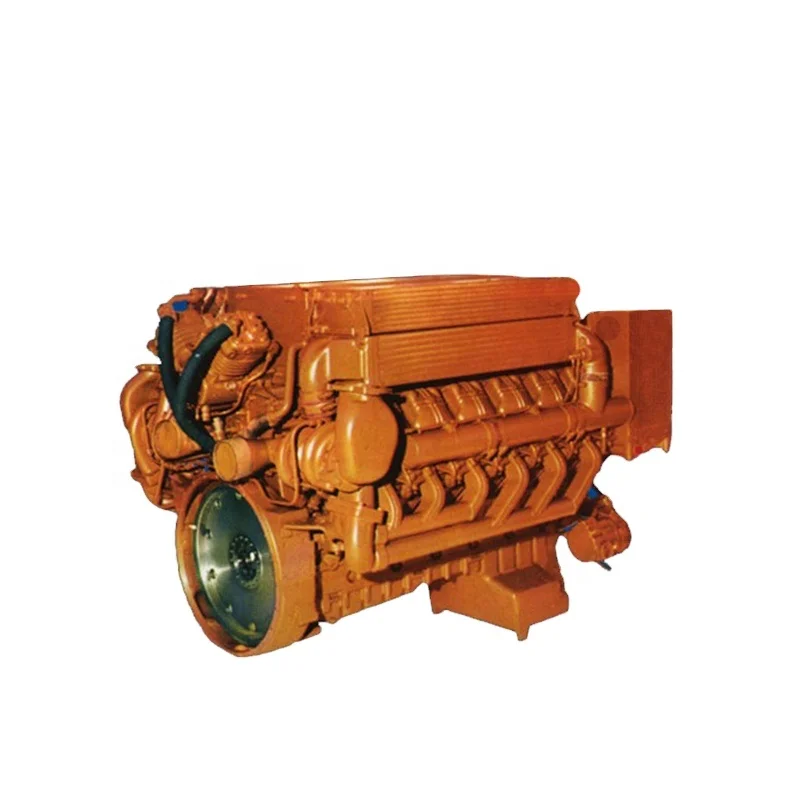

The B/FL413F series air-cooled diesel engine is a high-speed four-stroke, V-type, 90° cylinder bank angle, direct-injection ω-type (or inclined cylinder) combustion chamber and two-stage combustion system. It adopts a gantry type crankcase and a structure of one cover per cylinder. The crank connecting rod structure is a multi-support three-layer alloy sliding bearing intermediate thrust crankshaft. Parallel connecting rods and oil-cooled pistons with three sealing rings.
Engine Type | F8L413F | F10L413F | F12L413F | BF8L413FC |
Intake way | Naturally asirated | Naturally asirated | Naturally asirated | Turbocharged inter-cooled |
Bore/Stroke(mm) | 125x130 | 125x130 | 125x130 | 125x130 |
Displacement (L) | 12.763 | 15.953 | 19.144 | 12.763 |
Rated Power (kw) | 103~174 | 129~217 | 154~261 | 213~235 |
Rated Speed(r/min) | 1500~2500 | 1500~2500 | 1500~2500 | 2300~2500 |
Max Torque/speed (Nm/(r/min) | 760/1500 | 950/1500 | 1120/1500 | 1102/1800 |
Lowest Fuel Consumption(g/kwh) | 214 | 214 | 214 | 218 |
Idle Speed (rpm) | 600 | 600 | 600 | 600 |
Emission | Euro Ⅱ | Euro Ⅱ | Euro Ⅱ | Euro Ⅱ |
Dimension (mm) | 1211x1038x860 | 1412x1038x937 | 1575x1038x956 | 1260x1072x1030 |
Weight (kg) | 770 | 940 | 1120 | 970 |

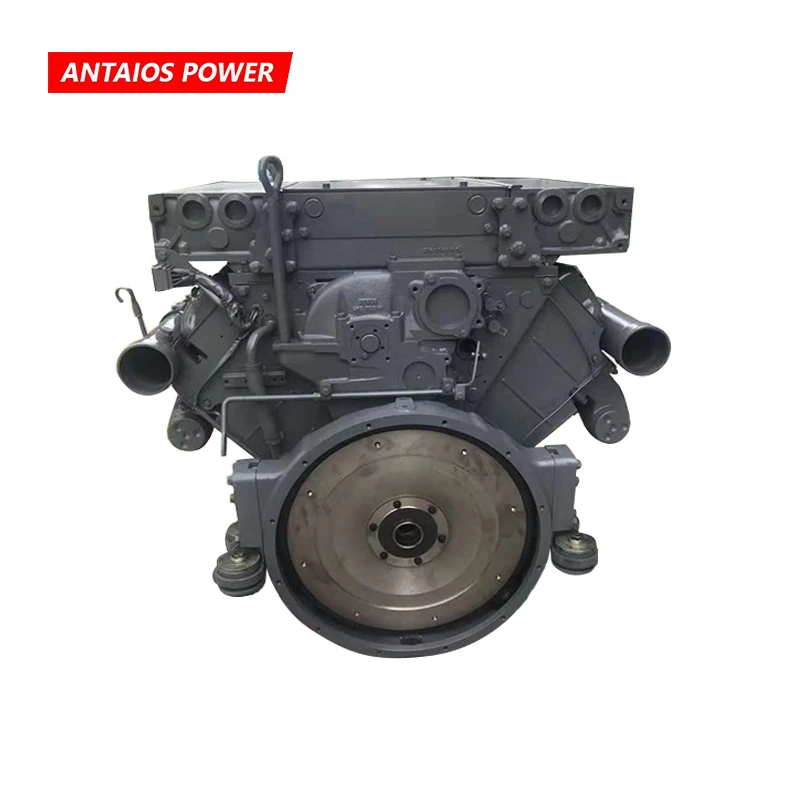

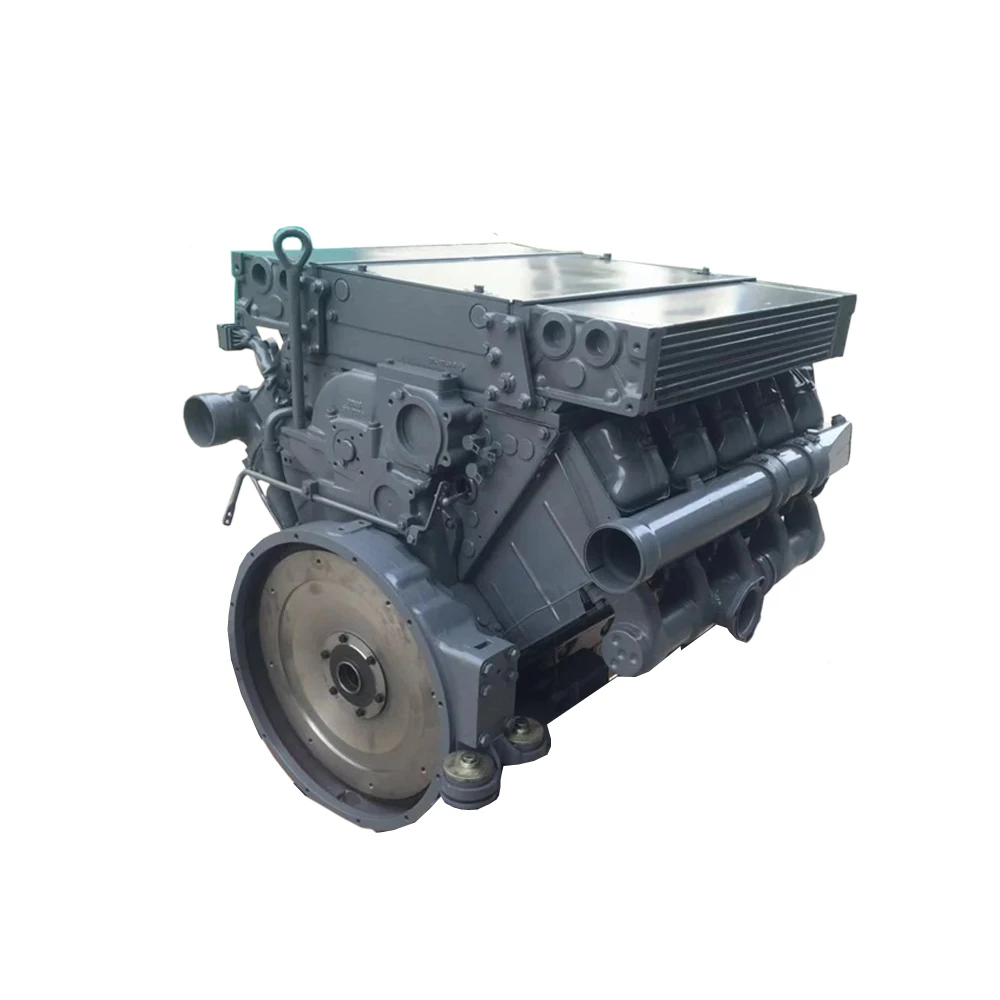

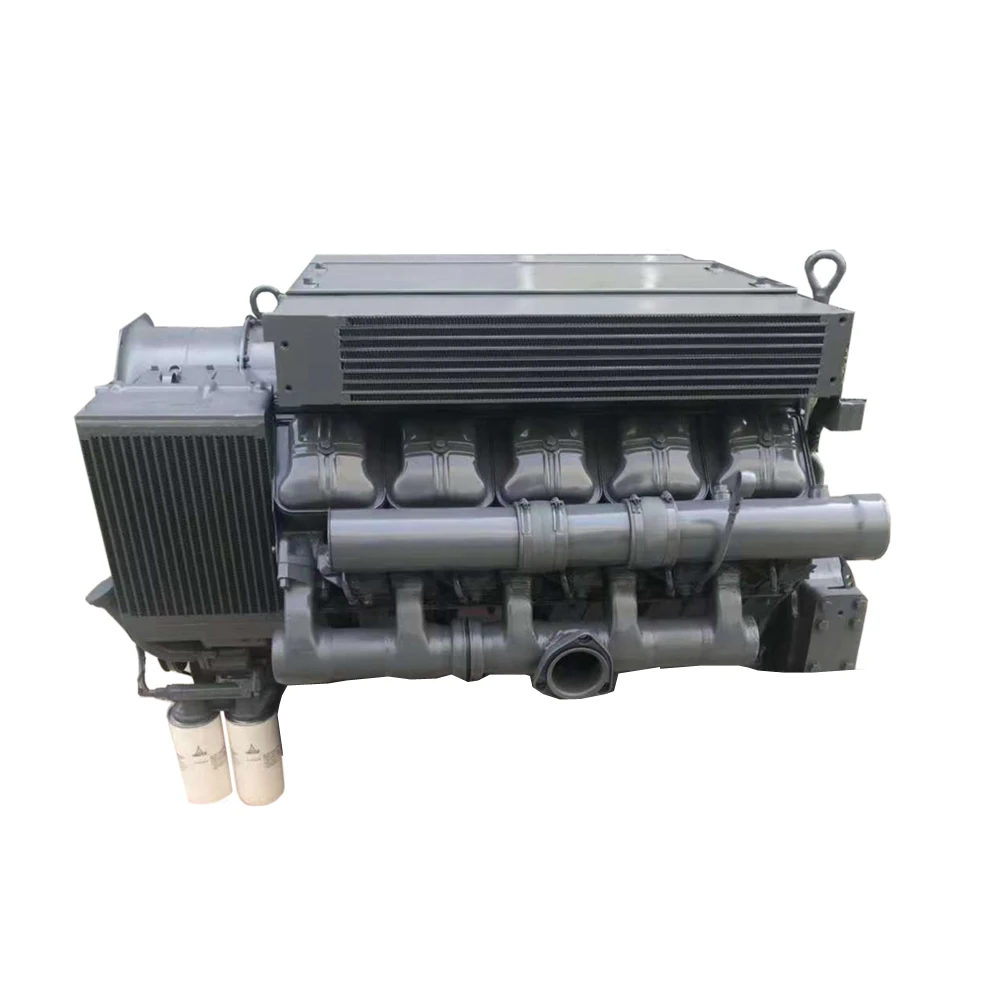

Details Images
1. Oil filter
2. Diesel filter
3. Oil bath air cleaner with pre-cleaner and dust collector
4. 12V/24V starting motor
5. 12V/24V charged generator
6. Diesel engine electrical shutdown device(only generator set)
7. Automatic belt tension unit
8. V-belt break alarm device
9. Engine elastic supports
10. SAE Flywheel and housing
11. Oil temperature sensor and alarm switch (VDO analog signal)
12.Oil pressure sensor and alarm switch (VDO analog signal)
13. Diesel engine accelerator adjust device (only generator set)
14.Mechanical adjusting speed device 15. Diesel engine paint(gray)
2. Diesel filter
3. Oil bath air cleaner with pre-cleaner and dust collector
4. 12V/24V starting motor
5. 12V/24V charged generator
6. Diesel engine electrical shutdown device(only generator set)
7. Automatic belt tension unit
8. V-belt break alarm device
9. Engine elastic supports
10. SAE Flywheel and housing
11. Oil temperature sensor and alarm switch (VDO analog signal)
12.Oil pressure sensor and alarm switch (VDO analog signal)
13. Diesel engine accelerator adjust device (only generator set)
14.Mechanical adjusting speed device 15. Diesel engine paint(gray)
1. Gear driven hydraulic pump
2. Belt driven air compressor
3. Hydraulic oil radiator
4. Starting aid for engine starting below minus 5℃ down to minus 20℃
5. Air cleaner
6. Muffler
2. Belt driven air compressor
3. Hydraulic oil radiator
4. Starting aid for engine starting below minus 5℃ down to minus 20℃
5. Air cleaner
6. Muffler
Main Products
Product packaging
Company Profile
Certificate
FAQ
Question 1：How to buy an engine?
Answer:
Answer:
First of all, please tell us what machine do you use the engine for, the rated power and speed of the engine you need, then we will select the model suitable for you based on these three information.
Secondly, if you want to buy an engine for the replacement of the old Deutz engine, please also provide a clear nameplate photo of the engine so that we can find out the engine’s configuration and provide you with a similar configuration engine.
Question 2:How to buy Deutz engine spare parts?
Answer:
First of all, please tell us the part number of the parts you need. We will supply the same parts as yours.
Secondly, if you don’t know the part number, please provide parts name and engine series number, then we will check the part number through engine series number.
Question 3：How long is the delivery time?
For complete engine and Power units , we need to arrange production according to the order, our general delivery time is 15-30 days.
For spare parts , our general delivery time is 5-15 days.
Secondly, if you want to buy an engine for the replacement of the old Deutz engine, please also provide a clear nameplate photo of the engine so that we can find out the engine’s configuration and provide you with a similar configuration engine.
Question 2:How to buy Deutz engine spare parts?
Answer:
First of all, please tell us the part number of the parts you need. We will supply the same parts as yours.
Secondly, if you don’t know the part number, please provide parts name and engine series number, then we will check the part number through engine series number.
Question 3：How long is the delivery time?
For complete engine and Power units , we need to arrange production according to the order, our general delivery time is 15-30 days.
For spare parts , our general delivery time is 5-15 days.
